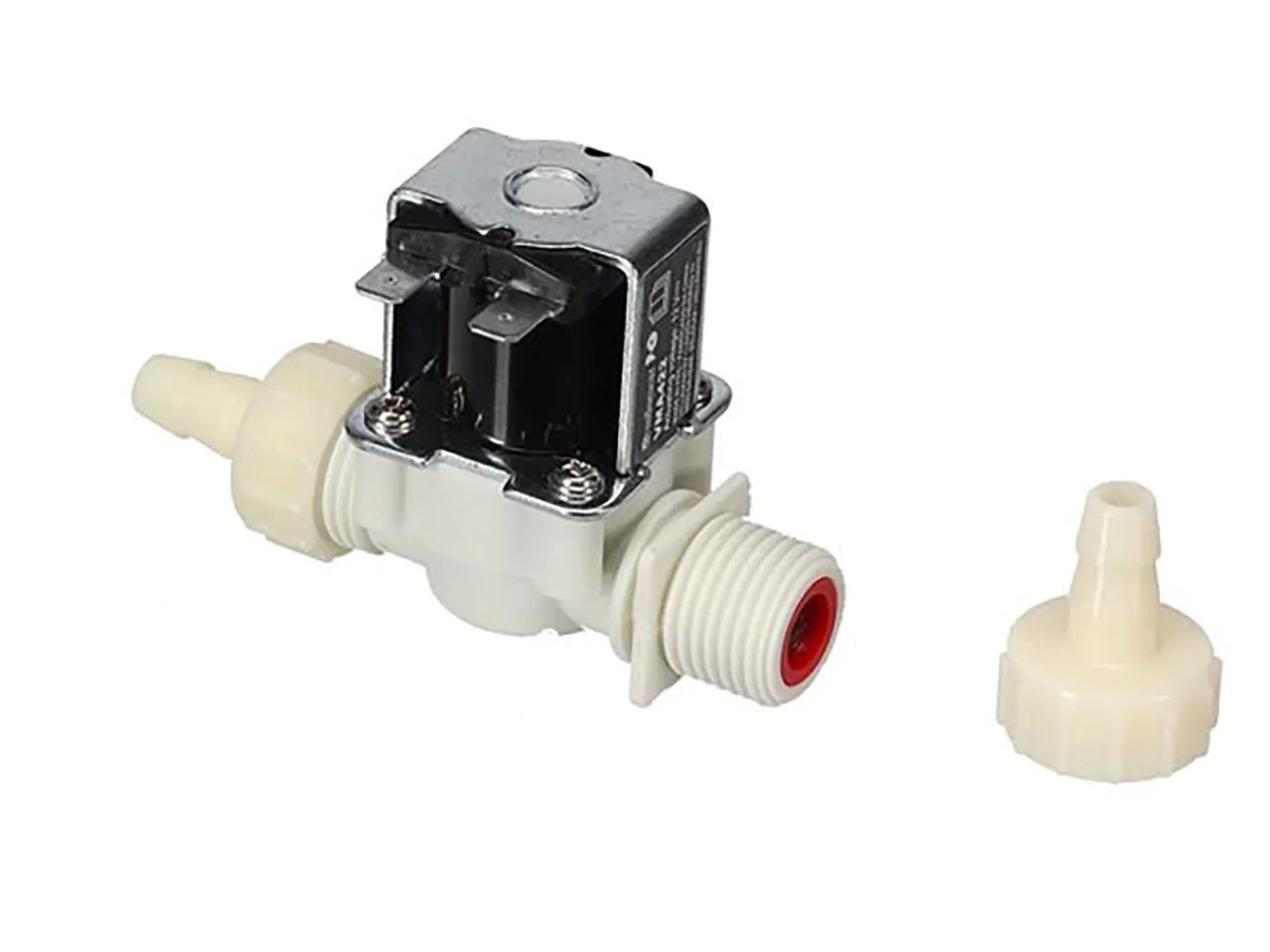

Water Valve - Relay Actuated

Features

• inlet - outlet diameter: 8 mm (0.315")
• working pressure: 0.02 to 0.8 MPa (0.2 to 8 bar / 29 to 116 psi)
• working temperature: 1 °C to 60 °C (1 to 140 °F)
• response time (open: 0.15 sec
• response time (close): 0.3 sec
• actuating voltage: 12 VDC
• weight: 95 g (0.21 lbs.)
• connection: 6.3 mm (2.5") tab (for FBF6 or FBMI)
• type: normally closed (opens at 12 VDC)
• max. current: 500 mA
