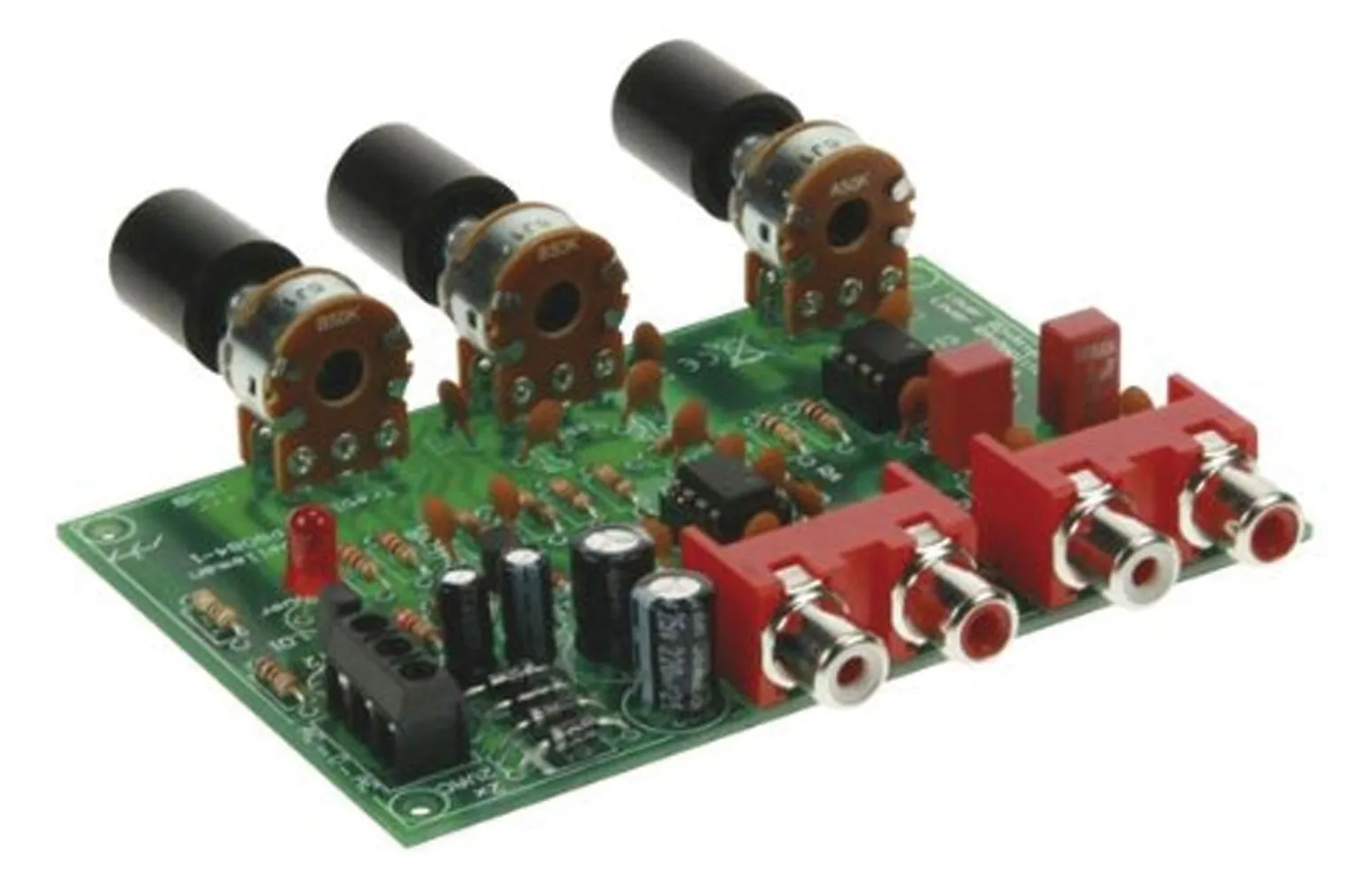

Volume and Tone Control - Preamplifier

When using one of our amplifiers (big or small), you always need a volume control and preferably also a tone control. This kit comes complete with all input / output connections and potentiometers. Furthermore it is possible to amplify or attenuate the input signal.

Features

• Stereo volume control
• Stereo Baxandall bass and treble control
• Bass and treble potentiometers with centre click
• Customizable attenuation or amplification
• Complete with knobs

Specifications

• Supply voltage: 2 x 12VAC / 100mA
• Frequency response: 3Hz - 500kHz (-3dB)
• Standard amplification: x1
• Signal to noise ratio: 98dB
• Harmonic distortion: < 0.005% (@1KHz)
• Maximum output: 5V RMS
• Tone control:
  • + and -15dB @ 20Hz
  • + and -15dB @ 15kHz
• Input impedance: 50k ohms
• Dimensions: 4.1" x 2.75"
