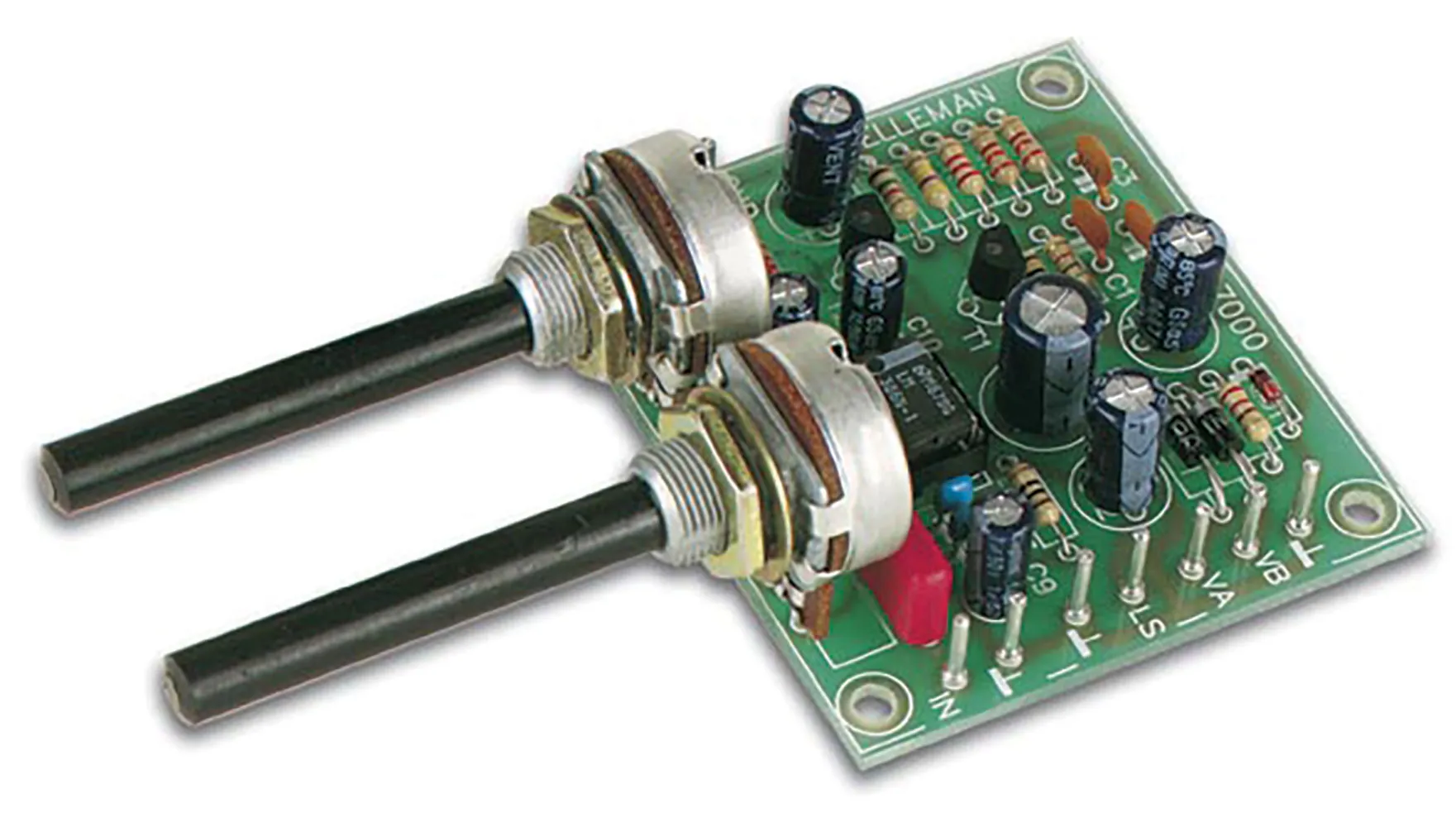

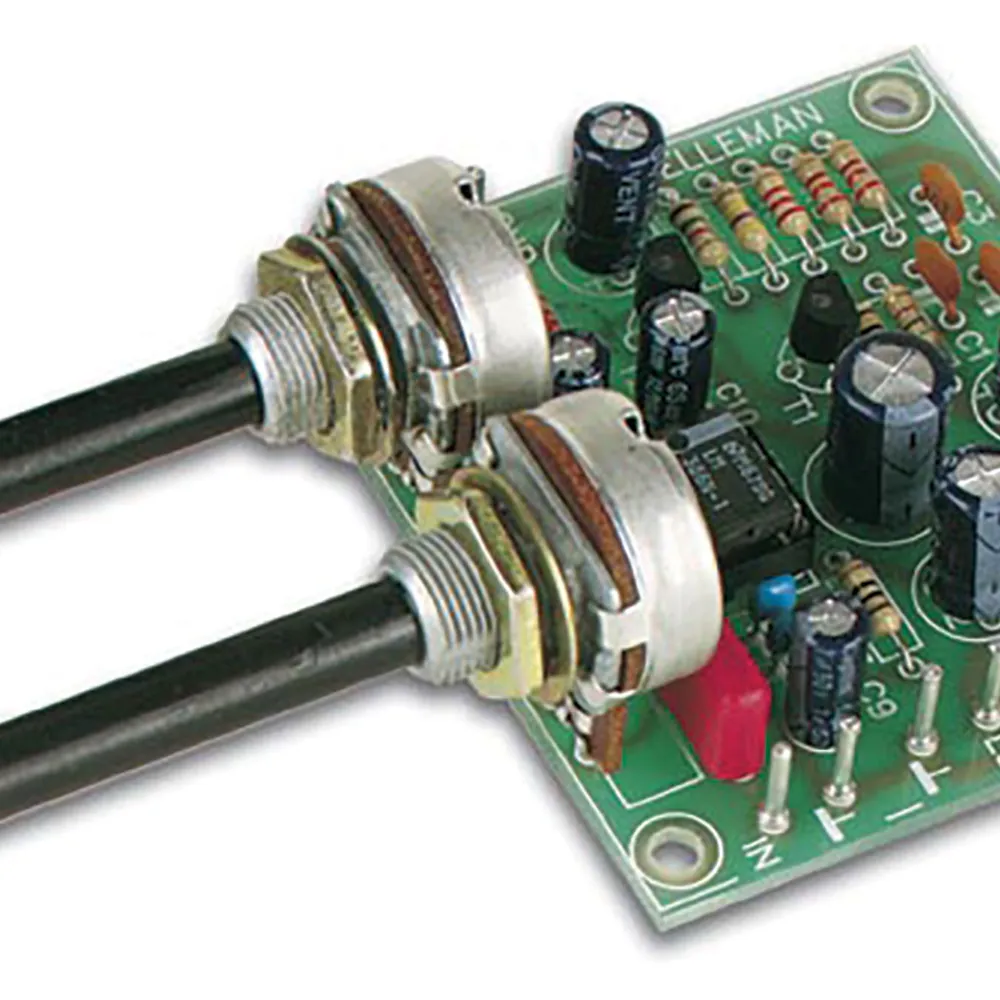

SIGNAL TRACER/INJECTOR

This signal tracer /injector has been designed to inject or detect a specific signal into an audio circuit in need of repair (such as amplifiers, radios, tone controls, ...) so as to detect the fault. In this way problems can be traced more easily. The signal tracer may also be used as a simple monitor or amplifier.

Features

signal injector:
    ·0-2.5Vrms output (adjustable)
    ·Output impedance: 1.5Kohm
    ·frequency: ± 1kHz

signal tracer:
    ·3.5mV to 10Vrms sensitivity (adjustable)
    ·gain: 40dB
    ·input impedance: 50Kohm

output power: 0.5W / 8ohm

power supply: 7-9V AC or 9-12V DC / 150mA

dimensions: 2.4 x 2.1"
