RGB SMD LED Module (Arduino-Compatible) (2 pack)

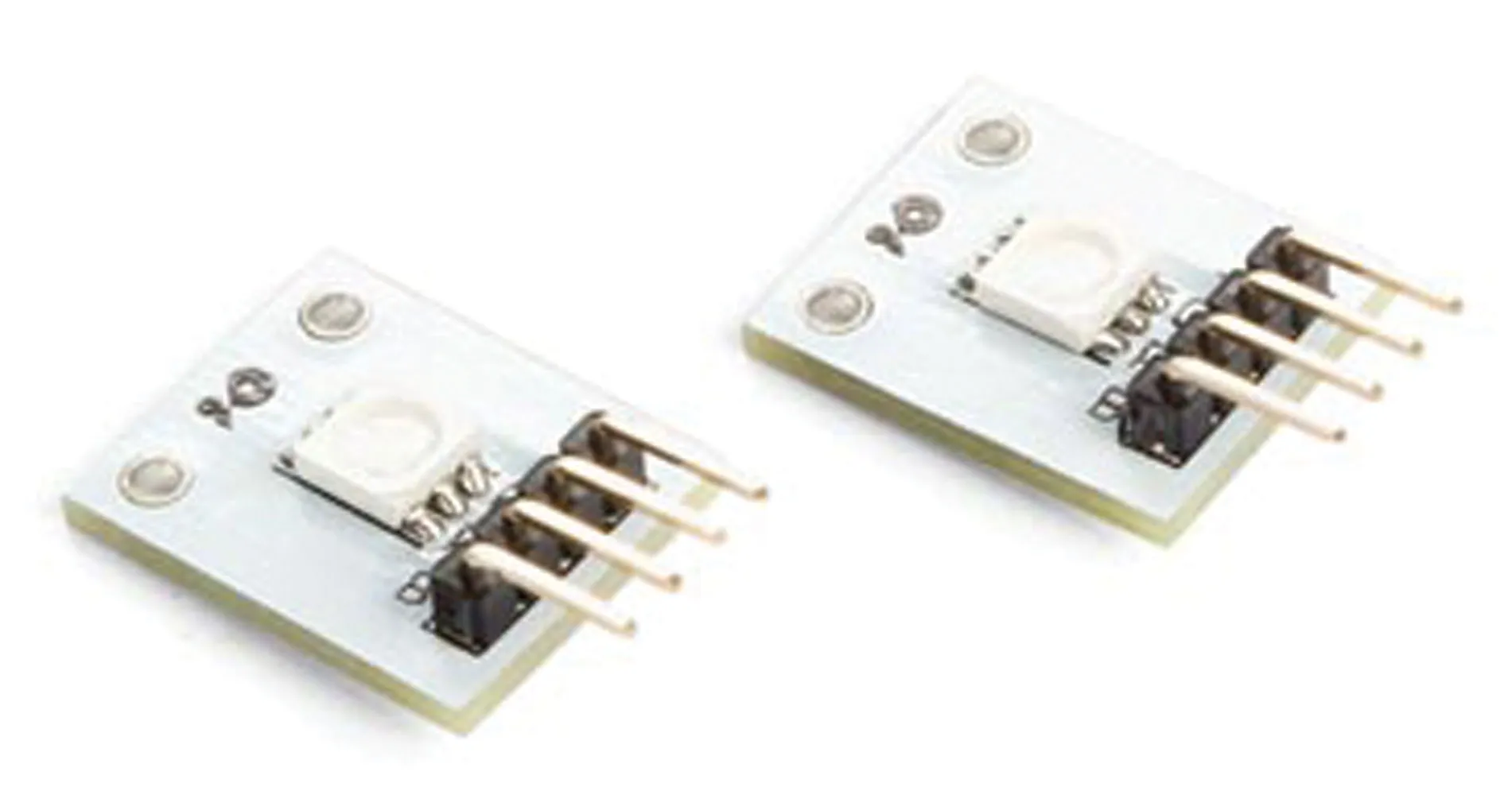

This module contains a 5050 RGB LED on a 4-pin breakout board. Connect this module to the Arduino PWM outputs to generate a full range of colors. Warning! This module does not include current limiting resistors! Damage to the LEDs will occur if connected directly to 5 V.

Specifications

• Power Dissipation: R 60mW, G 95mW, B 95mW
• Peak Forward Current (0.1ms Pulse Width): 100 mA for each color
• Continuous forward current: 25 mA for each LED
• Max. reverse voltage: 5 V
• Operating temperature: -40 °F to 176°F (-40 °C to 80 °C)
• Dimensions: 1.1" x 0.59" x 0.2" (28 x 15 x 5 mm)
• Common: Cathode (-)
• Attention: Current has to be limited by using resistors.
• Sold as a pack of 2
