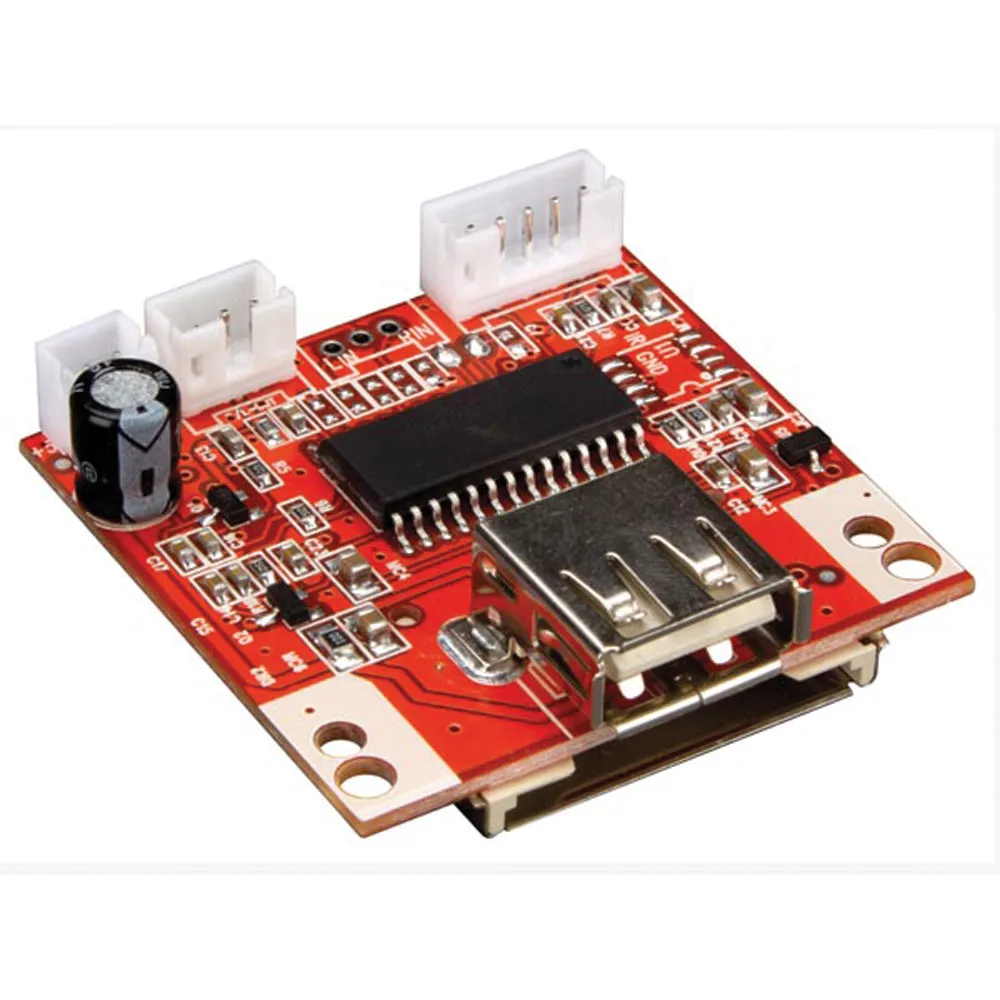

MP3 Jukebox Module with SD Card Slot

This handy device will play your .mp3 files stored on a USB memory stick or SD card.

Features

• Use momentary pushbuttons for 'NEXT'-, 'PREVIOUS'- and 'PLAY/PAUSE'
  (Button switches are not included)
• LED play/pause indicator
• Playback starts at power on
• Continuous looping of all tracks
• Stereo line level output
• Connectors are included

Applications

• Make your own MP3 jukebox
• MP3 playback to any domestic or car audio system
• Message playback system

Specifications

• Supported file format: mp3 (128kb/s, 192kb/s, 256kb/s, 320kb/s variable bit rate)
• Audio output: 500mV/47kOhm stereo line out
• Power supply: 5VDC (We recommend P/N: 1953612) or 9 to 12VDC/50mA max (We recommend P/N: 162996)
• Dimensions: 45x40x8mm / 1.77x1.57x0.31"

Extras

• Hint:For automotive use (12V): Put a 68 ohm/1W resistor in series with the (+) of the power supply, to avoid excess dissipation.
