LED Running Light Kit

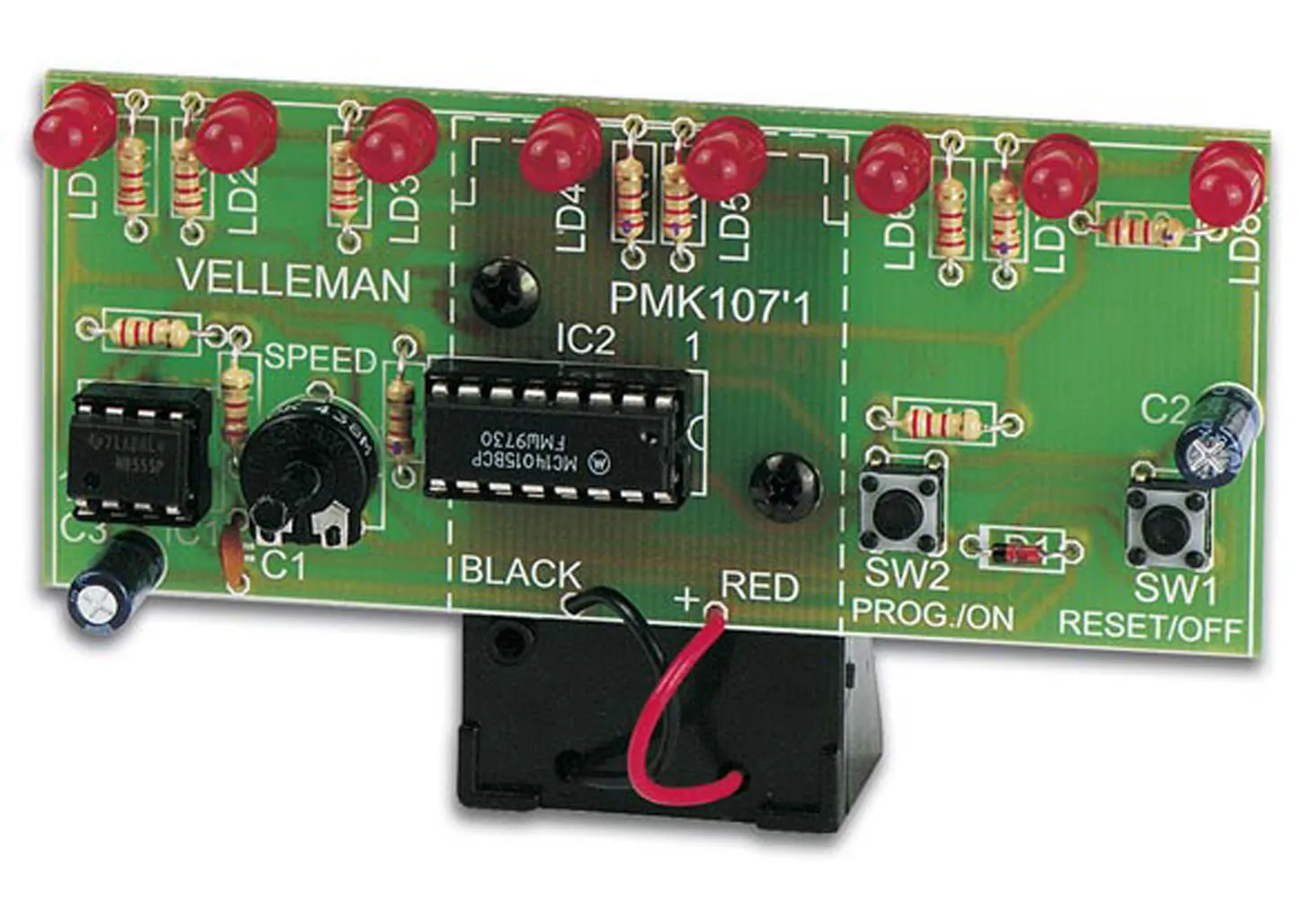

The Velleman MK107 DIY minikit circuit utilizes a 555 timer IC and a dual 4-bit shift register IC to create an 8 LED running light. In the primary mode, the LEDs light up in sequence from one side of the board to the other. You can push the program button to change the running light effect, and use the potentiometer to adjust the speed. The circuit is powered by a 9V battery and the battery holder is included with the minikit.

Features

• 8 LEDs. Different LED running effects are selectable (PROG push button)
• Adjustable effect speed (SPEED potentiometer)
• Range of settings for different light effects
• Difficulty level: Beginner
• wires up to 0.275" ∅

Power stand-by push button (OFF push button)

Specifications

• power supply: 9V battery (not incl.)
• dimensions: 3.5 x 1.6"
