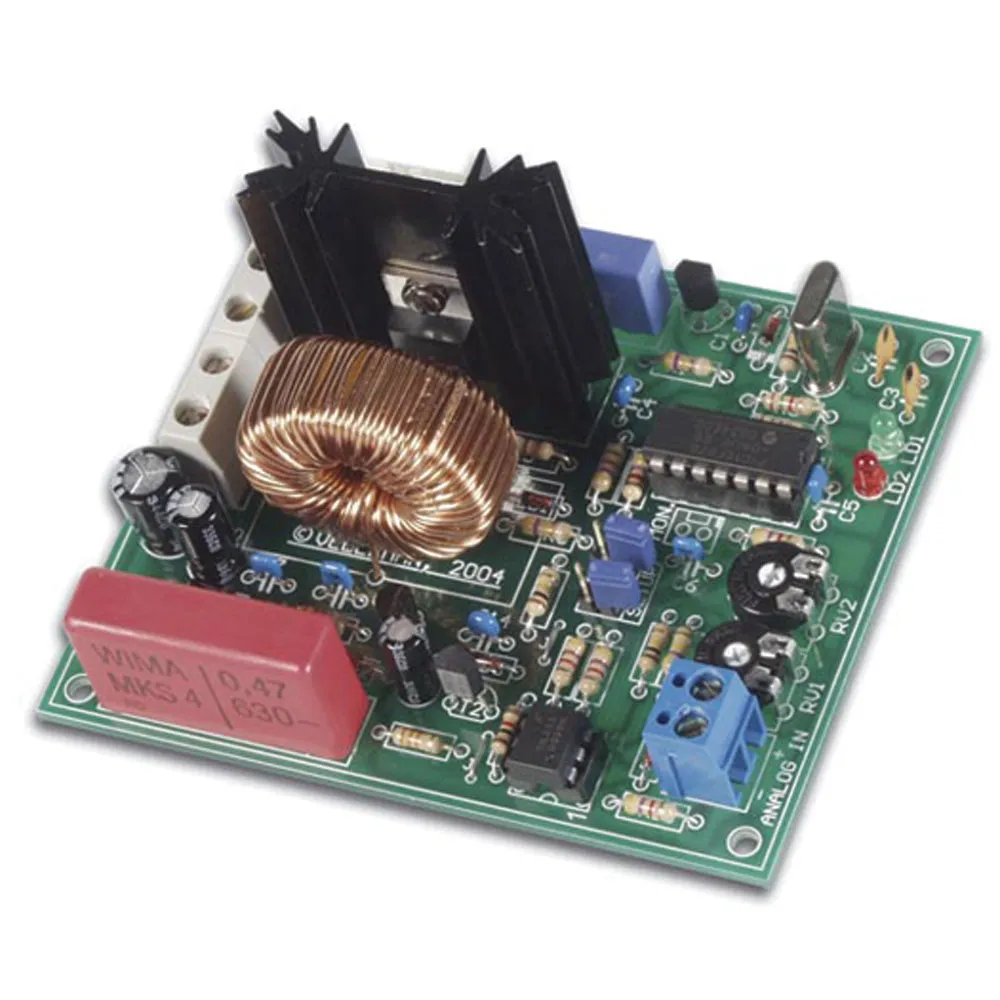

DC Controlled Dimmer Kit

Features

• simple brightness adjustment by means of a DC voltage
• optically isolated adjustment input
• pre-set adjustment for full brightness
• suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional transformer
• "Soft start" feature to ensure lamp longevity
• transformer protection in case of defective light sources
• LED status indication
• compatible with our computer interface cards: K8000, K8055

Specifications

• adjustment voltage of: 0 to 12Vdc max.
• max. adjustment current: 2.25mA at adjustment voltage of 12V
• suppression of radio & TV interference according to EN55015
• operating voltage: 110-125V or 230-240V AC (50/60Hz)
• max. load: 750W/230V or 375W/110V, adjustable from 0-98%
• max. phase shift with inductive load: 30°
• PCB dimensions: 3.5 x 3 x 1.6"
