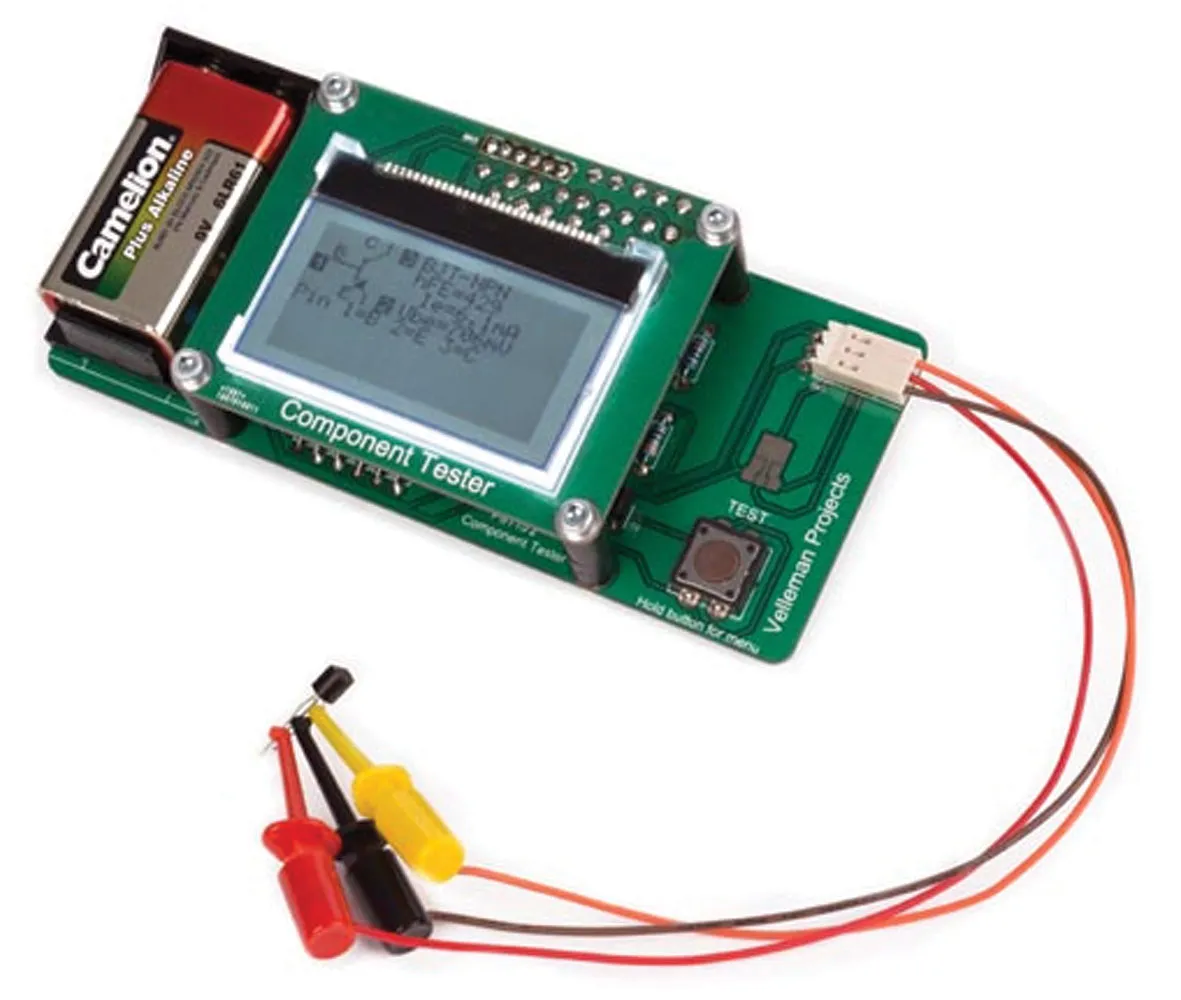

Component Tester Kit

Build your own component tester and probe for useful information about resistors, diodes and many other components. This is an intermediate level kit and requires soldering. The assembly manual and component list are on Whadda's website. Soldering tools and equipment are sold separately.

Features

Supported components:
• BJT
• JFET
• E-IGBT
• D-IGBT
• E-MOS
• D-MOS
• Resistors
• Coils
• Capacitors
• Diodes
• Auto shutdown
• Shows pin layout on LCD

Specifications

• Dimensions: 5.4" x 2.4" x 1.2" (W x L x H)
• Resistance resolution: 0.1 Ohm (max. 50 MOhm)
• Capacitance range: 28 pF to 100 mF
• Inductance range: 0.01 mH to 20 H
• Standby current: 20 nA
• Power supply: 9V battery (not included, but we recommend p/n: 198731)
• Test current approx.: 20 mA
• Test speed: 2 seconds

Whadda is a Premium Maker Brand by Velleman Group that produces electronics projects for enthusiasts.
