Features

Automatic reset during program download
Power OK green LED
Green (TX), red (RX) and orange (L) LED
Auto sensing/switching power input
Small mini-B USB port for programming and serial monitor
USB mini-B cable is not included, we recommend P/N: 673694
ICSP header for direct program download
Standard 0.1" spacing DIP (breadboard friendly)
Manual reset switch

Specifications

Arduino Nano Microcontroller : Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7-12 V
Input Voltage (limits): 6-20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8 (10-bit resolution)
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB of which 2 KB used by bootloader
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz
Dimensions: 0.73" x 1.70" (45 mm L x 18 mm W)
Power Consumption: 19 mA
Weight: 5 g

Overview

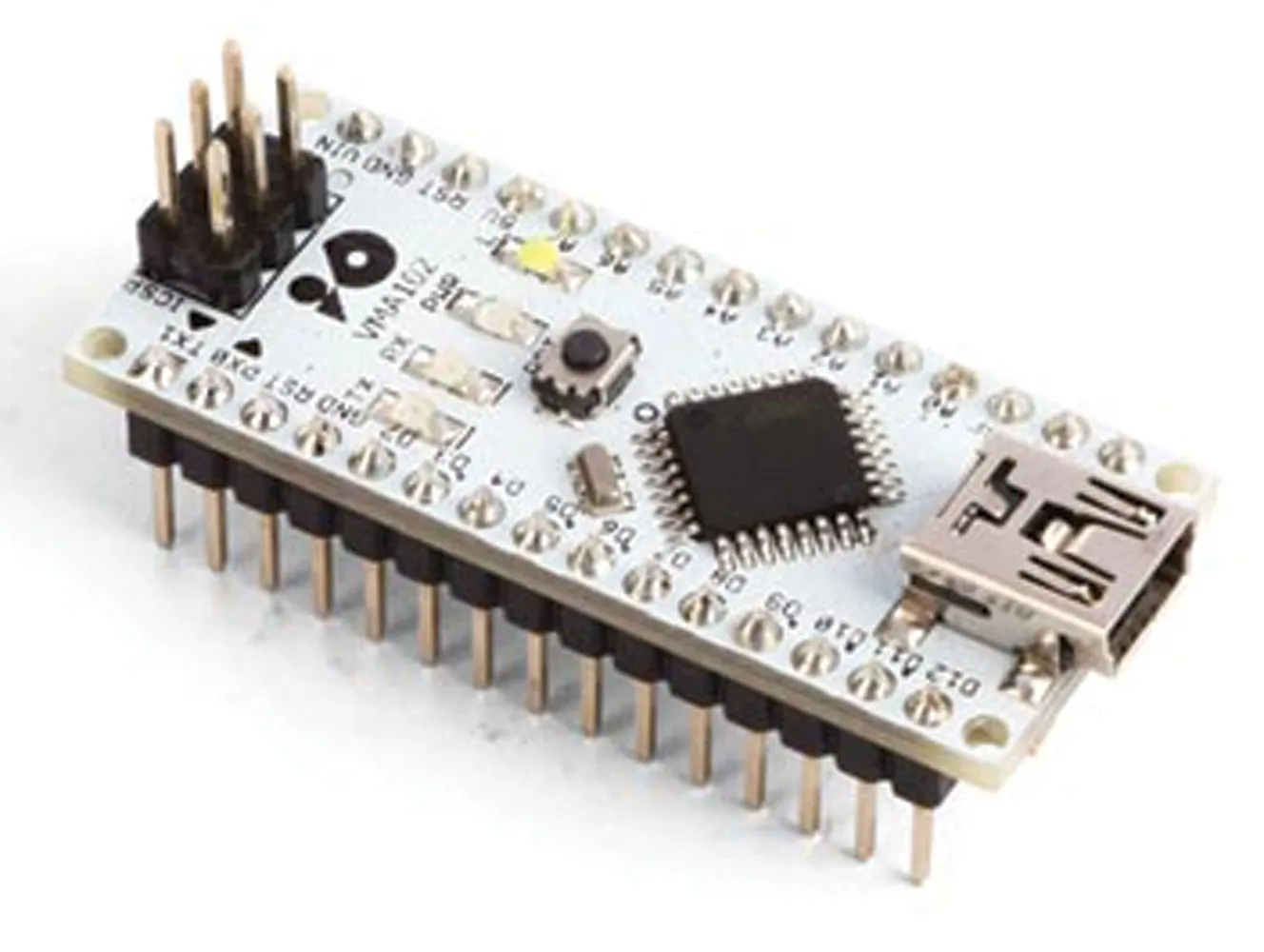

The Arduino Nano V3.0 packs its microcontroller, integrated USB, and more into a small, feature-rich, and breadboard-friendly package. It's a surface mount breadboard embedded version that has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it's missing a power jack, so it works with a mini-B USB cable instead of a standard one. The Nano will automatically sense and switch to the higher potential source of power, so there is no need for a power select jumper.

The Nano has the breadboard-ability of the Boarduino and the Mini+USB with a smaller footprint than either, so users have more breadboard space. It has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). With Version 3.0, this Arduino Nano's microcontroller is the ATmega328, which offers more programming and data memory space. It's two layers, making it both easier to hack and more affordable.
