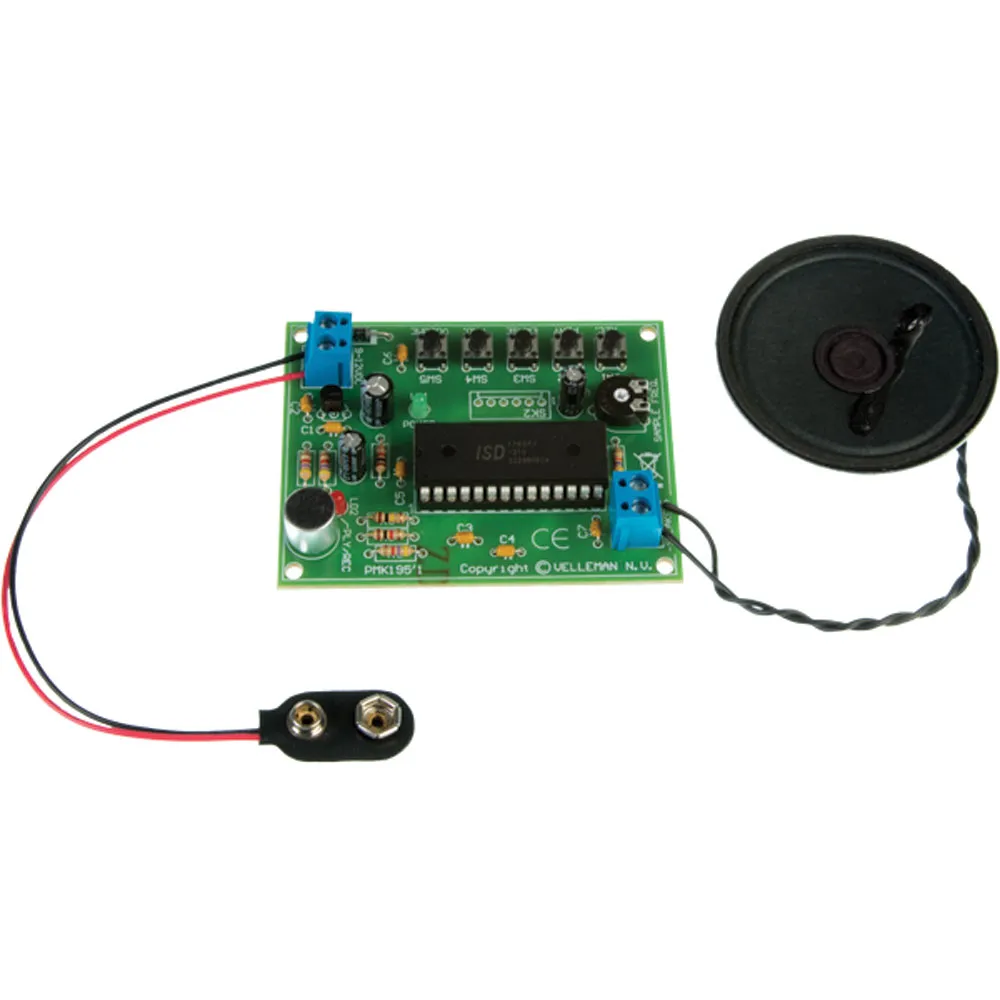

Voice Recording/Playback Module

Features

• Assembly required
• recording time between 30 and 90 s (adjust the sample rate)
• on-board microphone
• speaker ∅ 57 mm included
• using the speed adjustment, a "funny voice" can be created
• external open-collector trigger inputs for recording, playback, delete, next, and volume

Specifications

power supply : 9 to 12 VDC or with a 9 V battery (ex. 6LI61)

power consumption: max. 150mA during playback, 6mA during standby!

adjustable sampling rate: 5 to 12 kHz

speaker output: 500 mW max., 8 ohm

nominal recording time: 60 seconds

PCB dimensions: 2.6 x 2 x 0.8"
