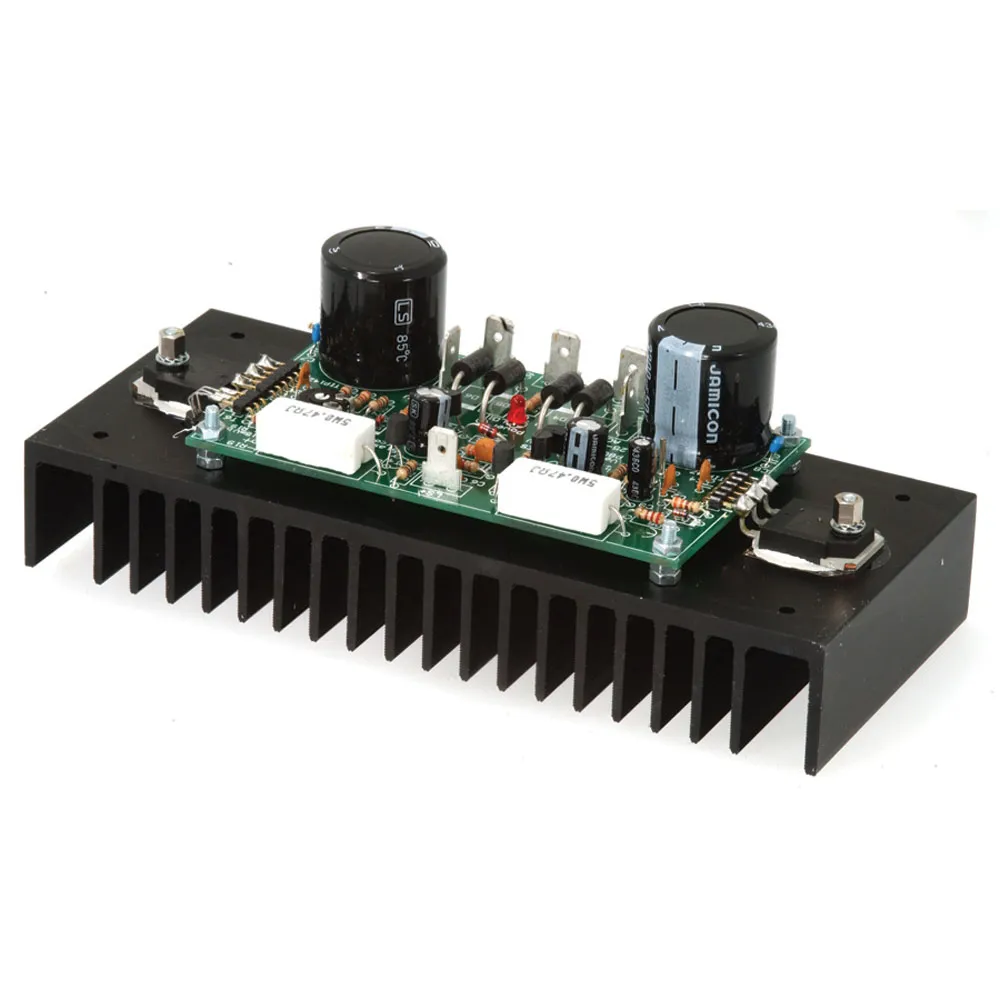

200 Watt Power Amplifier Module (assembled)

Features

• Excellent value for money
• Fully discrete design using Epitaxial Darlington transistors
• DC supply circuit on board with LED indication
• Ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
• Comes fully adjusted and tested
• Overload and short circuit protection

Specifications:

• 200W music power @ 4Ω load
• 100W RMS power @ 4Ω load
• 70W RMS power @ 8Ω
• Distortion: 0.02% @ 1KHz/10W
• Damping factor: >800
• Frequency response: 3Hz to 200KHz (-3dB)
• Sensitivity: 0.6V RMS
• Signal to noise ratio: 115dB
• Power supply: 25-30VAC 120VA
• PCB dimensions: 4.2 x 2.44" (107 x 62mm) approx.
• Recommended power transformer: 230VAC input, 2 x 30VAC output or 115 / 230VAC input, 2 x 25VAC output
