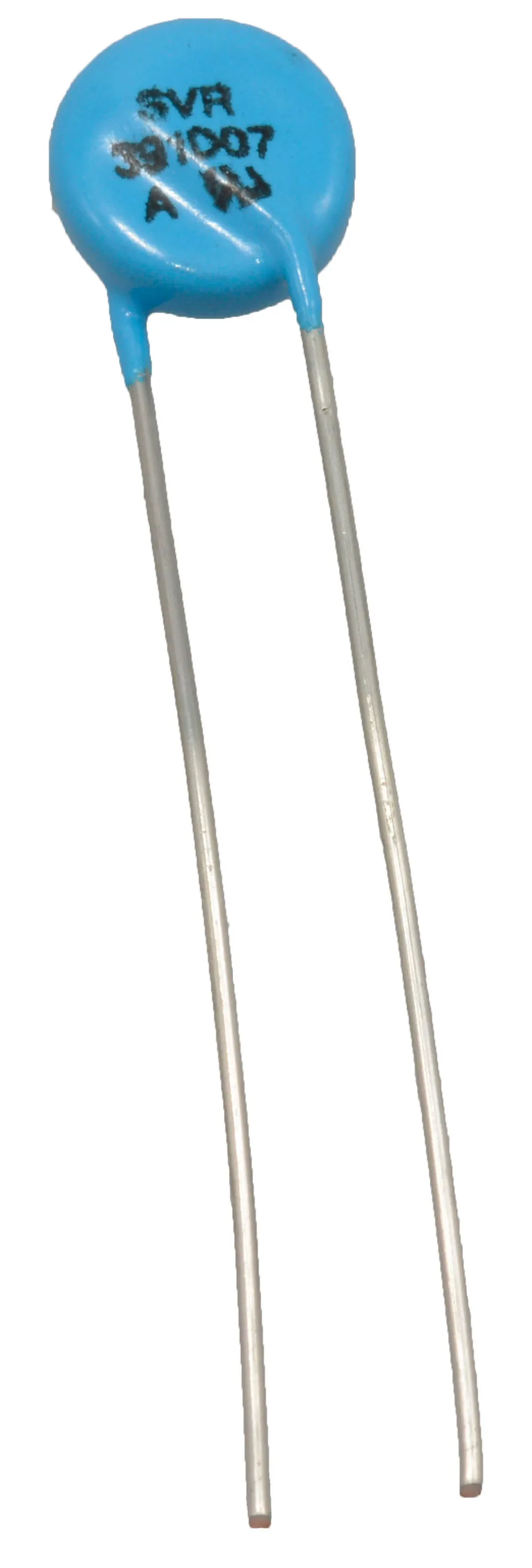

Varistor 390V 1750A Surge 8mm Disc Radial Through Hole

Specifications

• SIOV metal oxide varistor
• Maximum AC Volts: 250 V
• Maximum DC Volts: 320 V
• Varistor Voltage (Min): 351 V
• Varistor Voltage (Typ): 390 V
• Varistor Voltage (Max): 429 V
• Current - Surge: 1.75 kA
• Clamping Current: 10 A
• Clamping Voltage: 620 V
• Energy: 25 J
• Number of Circuits: 1
• Capacitance @ Frequency: 120 pF @ 1 kHz
• Operating Temperature: -40°C to 85°C (TA)
• Mounting Type: Through Hole
• Package: Disc, 8 mm
