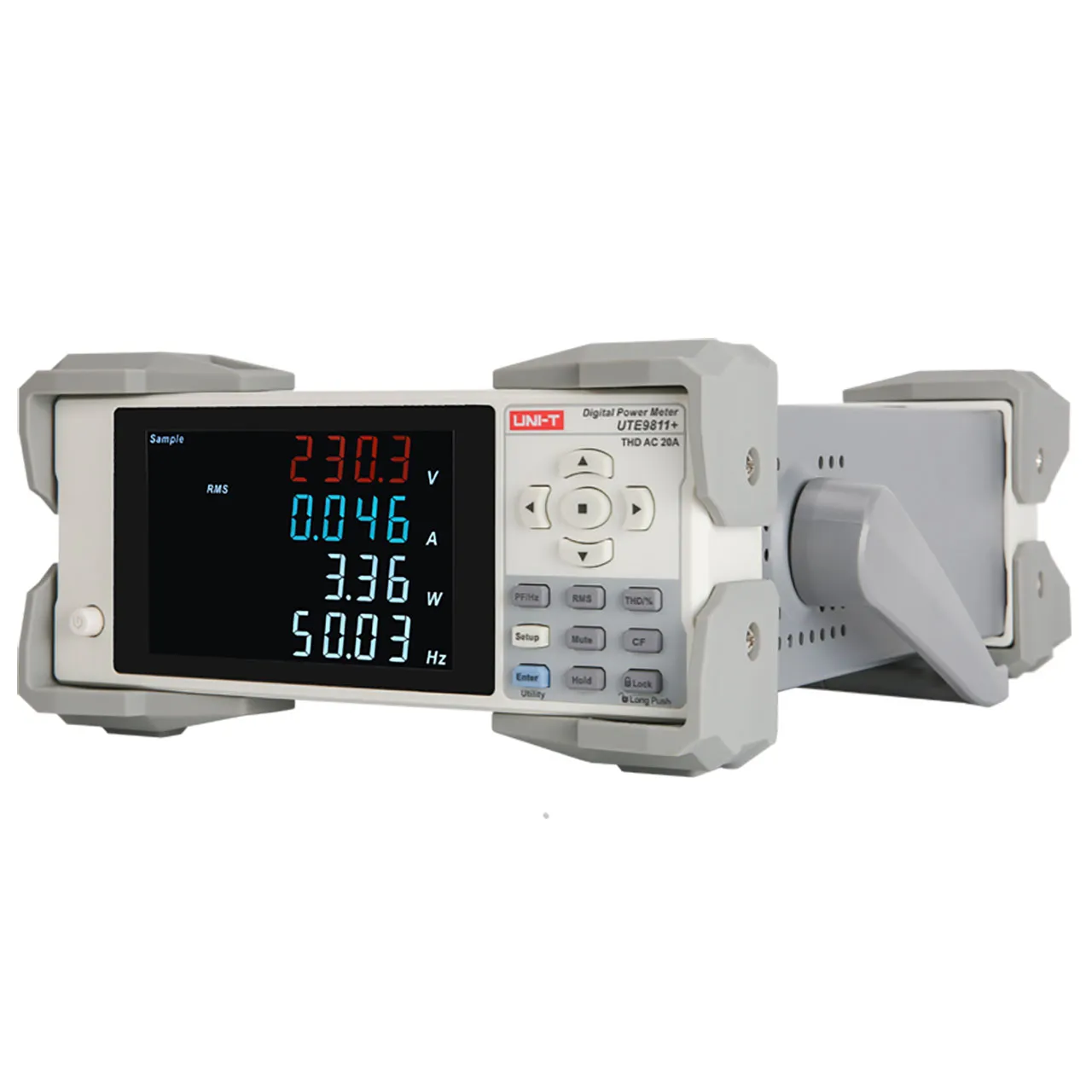

UTE9811+ Power Meter - 600V/20A Harmonic Analysis up to 50th Order

Features

• 3.0V-600V, 5mA-20.0A, 40Hz-70Hz, 1-50times harmonic, Four windows display
• Display Size: 4.3 in.
• Warranty: 3 years
• Interface: RS232
• Prop65: No
• Reach: No

Overview

The UTE9811+ Smart Digital Power Meter sets a new standard for harmonic analysis in power measurement instrumentation, engineered for professionals who require detailed power quality assessment with comprehensive harmonic measurement capabilities and exceptional measurement accuracy. Using phase-locked loop (PLL) synchronization and innovative digital signal processing algorithms, the UTE9811+ delivers harmonic analysis up to the 50th order with industry-leading precision and update speeds as fast as 0.1 seconds.

Technical Specifications

• Accessories Universal Accessories: Power cord, RS232 Cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• T Screen: No
• Max V Res: 1mV
• Max A Res: 0.1uA
• AC DC Current Range: 5.0mA - 20A
• AC DC Voltage Range: 3.0V - 600V (AC only)
• Harmonic Measurement: 1-50th
• Measuring Bandwidth: 40Hz - 70Hz
• Watts Range: 1W - 12kW
• PM Measurement Modes: V,A,W,PF/Hz,THD/CF
