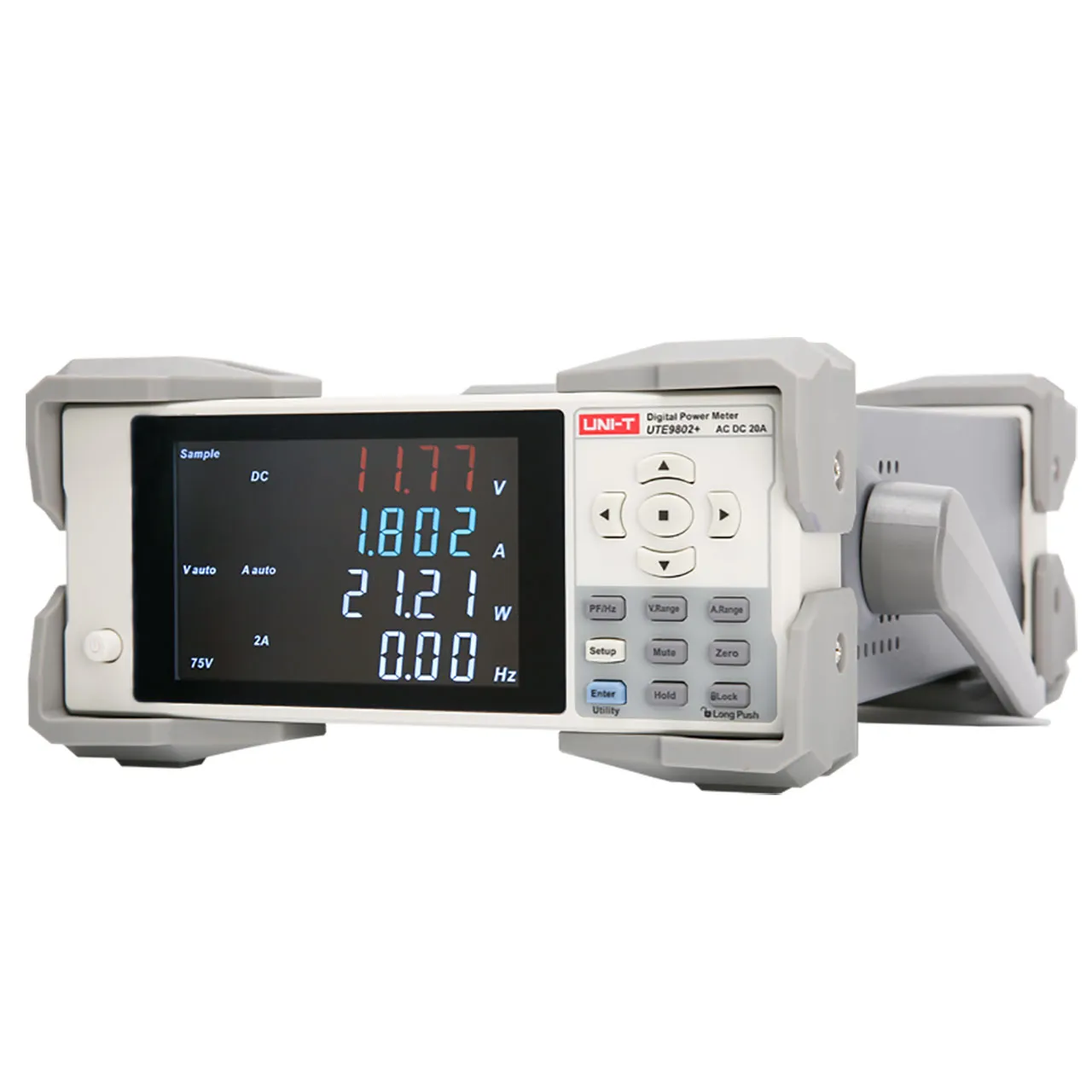

UTE9802+ Power Meter - 600V/20A True RMS AC/DC Measurement

Features

• 3.0V-600V, 0.5mA-20.0A, DC, 40Hz-400Hz, TRMS, Four windows display
• Display Size: 4.3 in.
• Warranty: 3 years
• Interface: RS232
• Prop65: No
• Reach: No

Overview

The UTE9802+ digital power meter delivers versatile AC/DC measurement capabilities with true RMS measurement for accurate power analysis across diverse applications including AC/DC charging piles, power batteries, and home appliance testing. Featuring a voltage range of 3.0V to 700V and current range of 0.5mA to 20A, this instrument provides comprehensive power measurement with limit setting for current and power parameters.

Technical Specifications

• Accessories Universal Accessories: Power cord, RS232 Cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• T Screen: No
• Max V Res: 1mV
• Max A Res: 0.1uA
• AC DC Current Range: 0.5mA - 24A
• AC DC Voltage Range: 3.0V - 700V
• Harmonic Measurement: NA
• Measuring Bandwidth: DC, 45Hz - 400Hz
• Watts Range: 1W - 12kW
• PM Measurement Modes: AC/DC, AC+DC (T-RMS)
