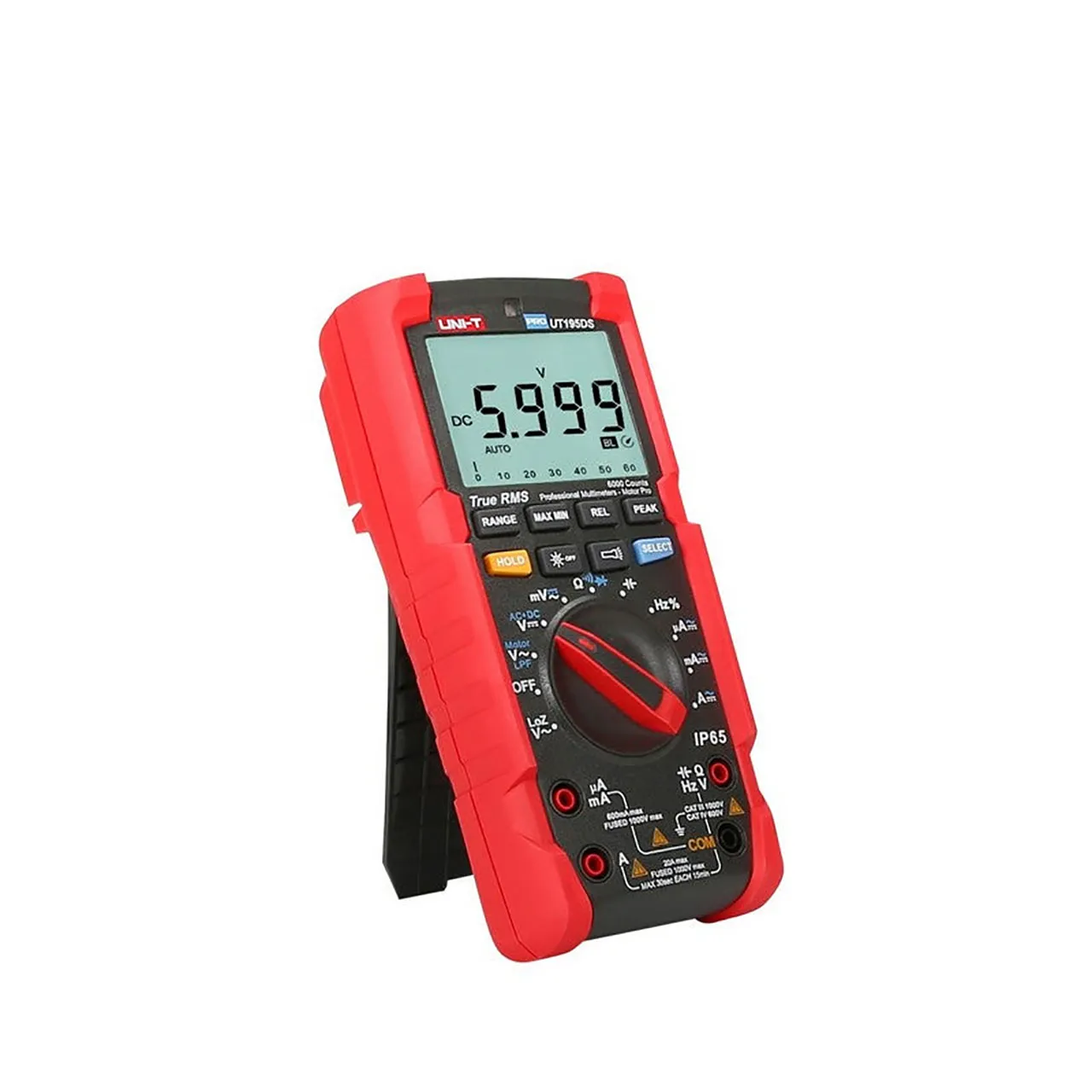

UT195Ds Dual-Display Industrial Digital Multimeter

Features

  • AC/DC voltage: 1000V; AC/DC current: 20A; Resistance: 60MΩ; Capacitance: 60mF; Frequency: 40MHz; Duty Cycle; Dual Display; 3-phase motor sequence; Low Pass;True RMS, CAT IV 600V, IP65
  • Warranty: 1 year
  • Prop65: No
  • Reach: Yes

Overview

Industrial Digital Multimeter - True RMS, IP65, 6000 Counts with Dual Display .

Technical Specifications

    Product Identification

    Additional Feature:LoZ, Low-Pass Filter, 3-Phase Motor Sequence Test, Analog Bar, AC+DC
    Product Type:Industrial-Grade Digital Multimeter with Dual Display
    Manufacturer Series:UT100

    Compliance

    RoHS Status:ROHS Compliant

    Dimensions & Appearance

    Style:Handheld

    Features

    Autorange:Yes
    True RMS:Yes
    Capacitance Range:0 to 60 mF
    AC Current Range (A):0 to 20
    Display Digits:3.5
    DC Current Range (A):0 to 20
    PC Interface:No
    Resistance Range (Ohms):0 to 60M
    Voltage Range (VDC):0 to 1000, 600
    Display Count:6000
    Voltage Range (VAC):0 to 1000, 600
    Measurement Temperature Range (Deg F):-40 to 1832
    Measurement Temperature Range (Deg C):-40 to 1000
    Frequency Range:60 Hz to 40 MHz
    Function:Voltage, Current, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Continuity, Diode
    ,
