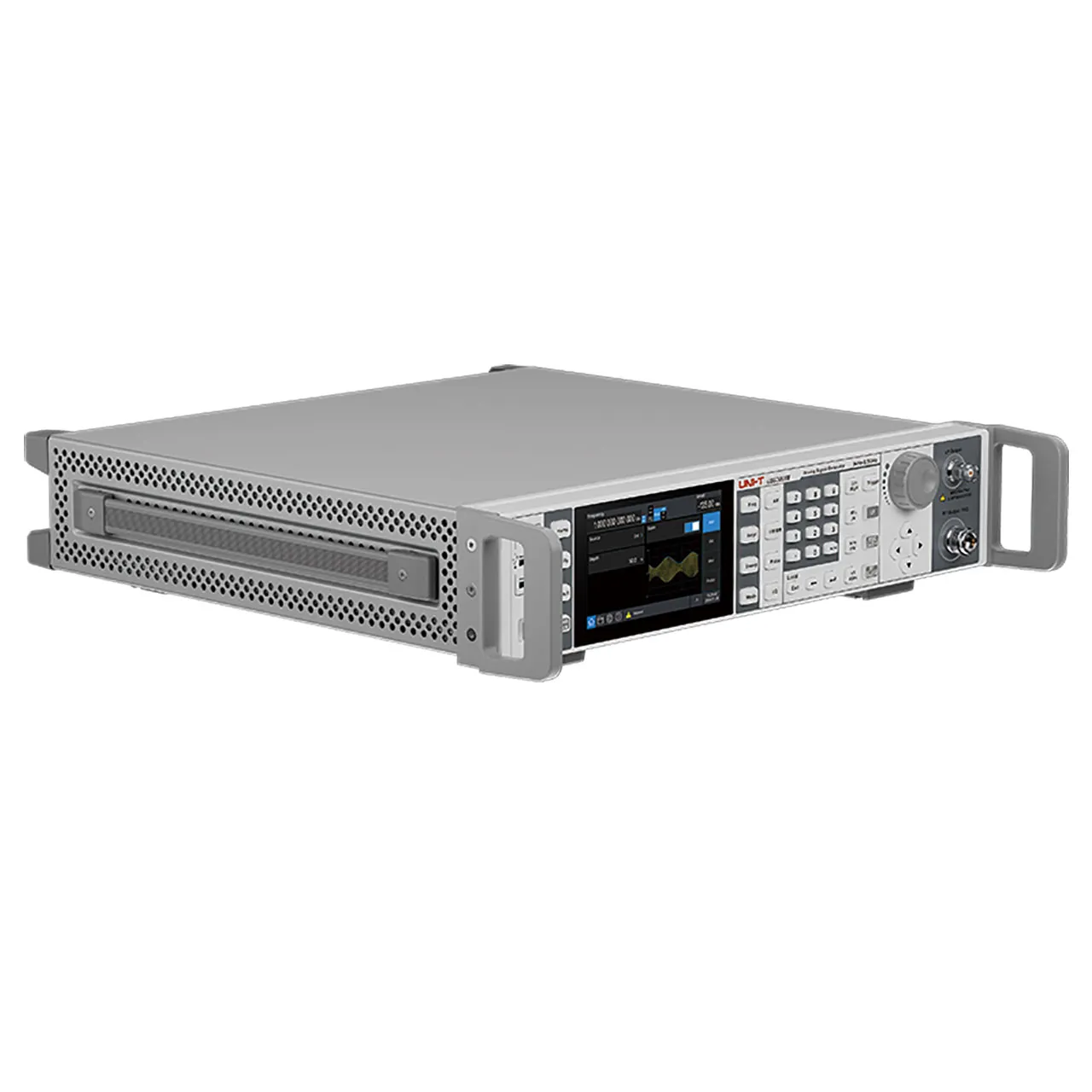

USG3065M-P 6.5 GHz Analog RF Signal Generator with Mechanical Attenuator

Features

• Warranty: 3 years
• Prop65: No
• Reach: No

Overview

The USG3065M-P is engineered specifically for the challenges of 5G sub-6 GHz development and testing. With its extended frequency range up to 6.5 GHz, mechanical attenuator providing enhanced output power, and excellent signal purity, it addresses the requirements of next-generation wireless systems.

Technical Specifications

• T Screen: Yes
• RF Display: 5" Touch
• RF Mechanical Atten: Yes
• RF Phase Noise: <-122 dBc/Hz (1 GHz@20 kHz)
• RF Level Range: -135 dBm - +25 dBm
• RF Frequency Range: 9 kHz - 6.5 GHz
• RF Frequency Resolution: 0.001 Hz
