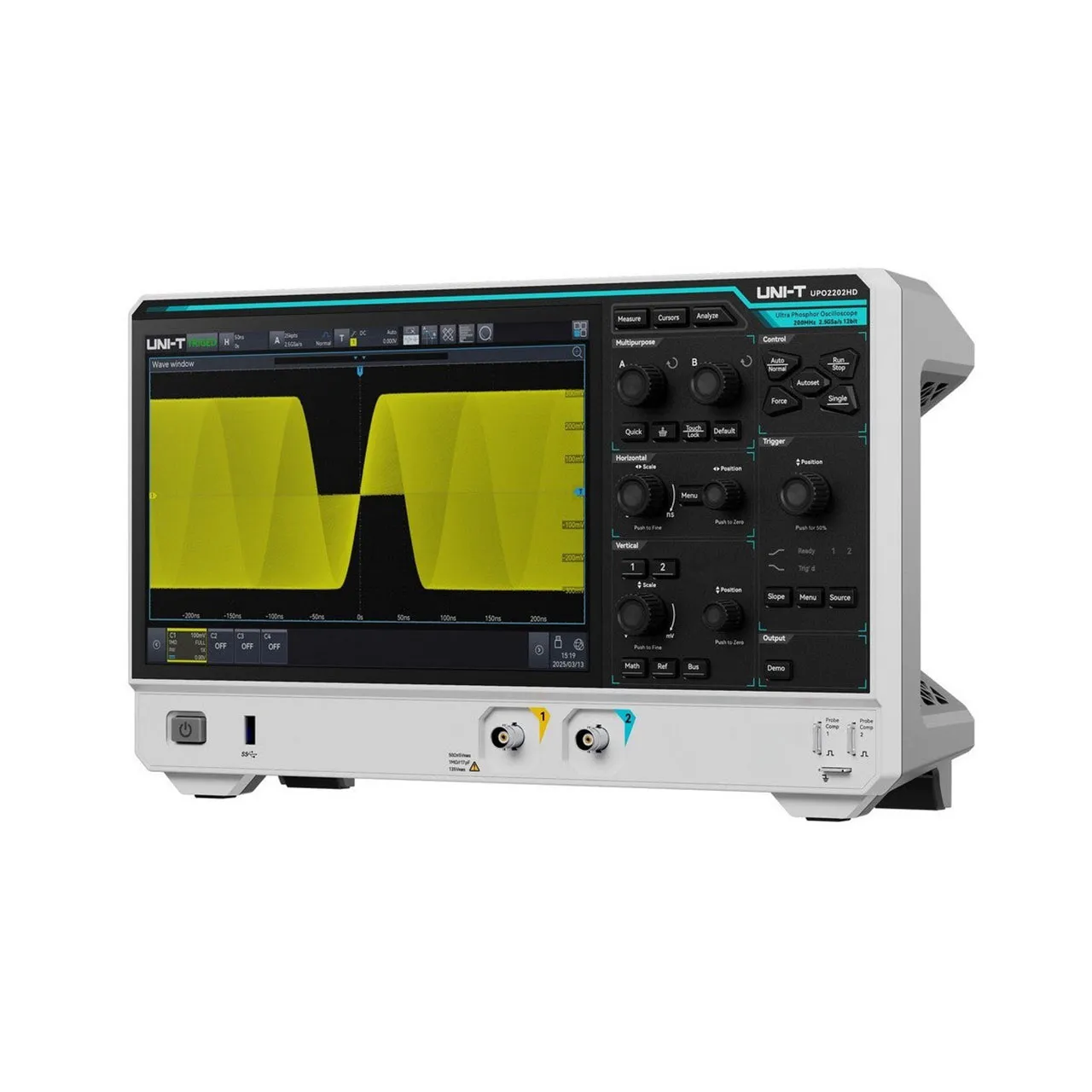

UPO2202HD 12-Bit 200MHz 2Ch High Definition Oscilloscope

Features

• Bandwidth: 200MHz
• Channels: 2Ch
• Scope Type: DSO
• Scope Sample Rate: 2.5GSa/s
• Memory Depth: 100Mpts
• Refresh Rate: 1,000,000wfms/s
• Display Size: 10.1 in.
• Warranty: 3 years
• Interface: USB 3, LAN, HDMI, AUX, EXT, REF
• Prop65: No
• Reach: No

Overview

The UNI-T UPO2202HD provides 2 analog channels at 200?MHz bandwidth with 12-bit resolution and advanced Ultra Phosphor 3.0 acquisition for capturing transient signals. It’s a compact and affordable solution for engineers needing high-fidelity measurements and built-in protocol analysis.

Technical Specifications

• Other Accessories: Oscilloscope probe (UT-P05)*2
• Accessories Universal Accessories: Power cord, USB3.0 cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• Logic Probes: Not Available
• Signal Generator: Not Available
• Auto Measurements: 56
• Vertical Scale 1M : 500uV/div to 10V/div
• Included Bus Protocols: RS232, UART, I2C, SPI, CAN, LIN, CAN-FD, FlexRay, SENT, Audio
• Frequency Meter: 7-bit
• T Screen: Yes
