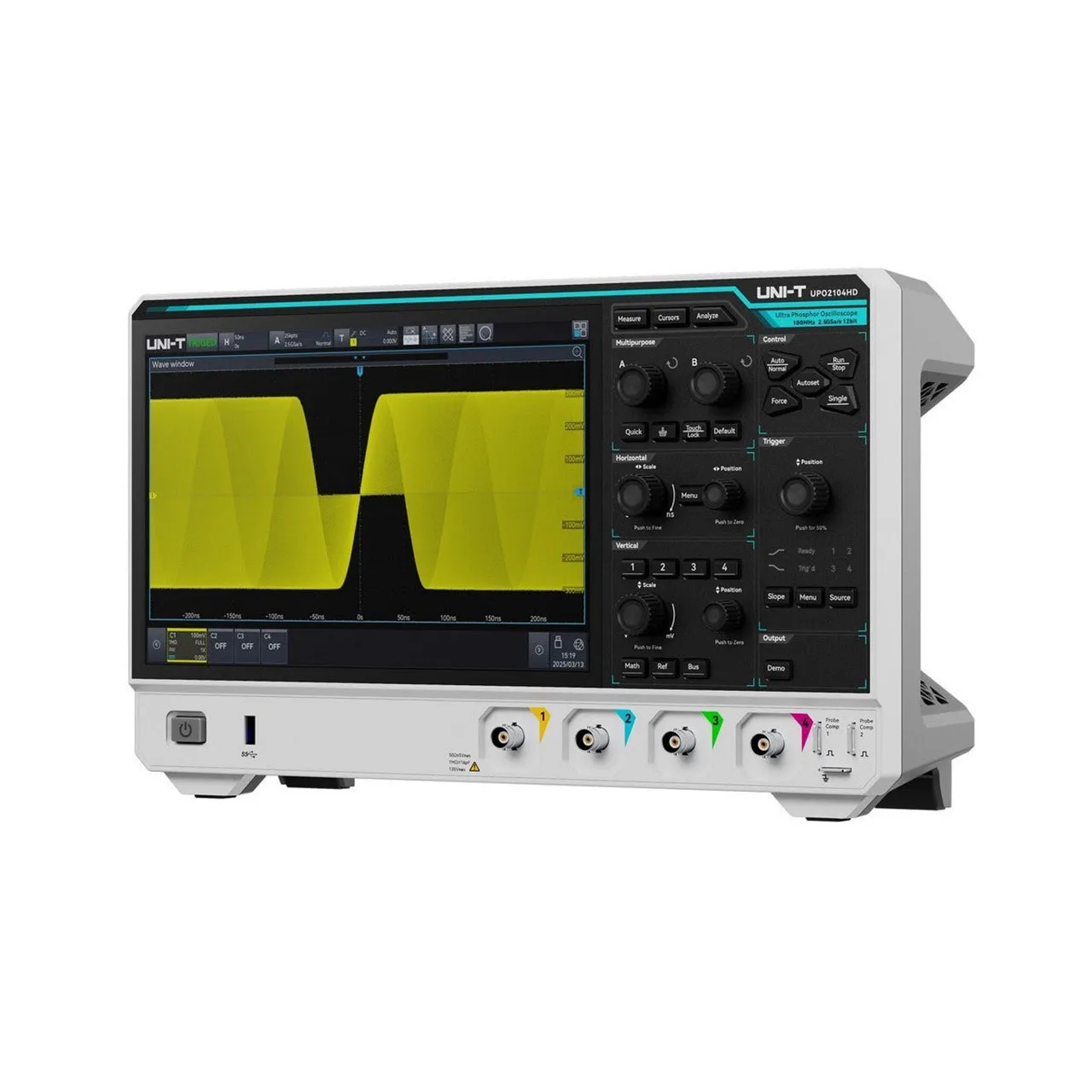

UPO2104HD 12-Bit 100MHz 4Ch High Definition Oscilloscope

Features

• Bandwidth: 100MHz
• Channels: 4Ch
• Scope Type: DSO
• Scope Sample Rate: 2.5GSa/s
• Memory Depth: 100Mpts
• Refresh Rate: 1,000,000wfms/s
• Display Size: 10.1 in.
• Warranty: 3 years
• Interface: USB 3, LAN, HDMI, AUX, EXT, REF
• Prop65: No
• Reach: No

Overview

The UNI-T UPO2104HD delivers 4-channel visibility at 100?MHz bandwidth with 12-bit high-resolution sampling and real-time decoding of embedded and automotive buses. It’s engineered for developers working on multi-signal embedded systems requiring precision, clarity, and flexibility.

Technical Specifications

• Other Accessories: Oscilloscope probe (UT-P04)*4
• Accessories Universal Accessories: Power cord, USB3.0 cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• Logic Probes: Not Available
• Signal Generator: Not Available
• Auto Measurements: 56
• Vertical Scale 1M : 500uV/div to 10V/div
• Included Bus Protocols: RS232, UART, I2C, SPI, CAN, LIN, CAN-FD, FlexRay, SENT, Audio
• Frequency Meter: 7-bit
• T Screen: Yes
