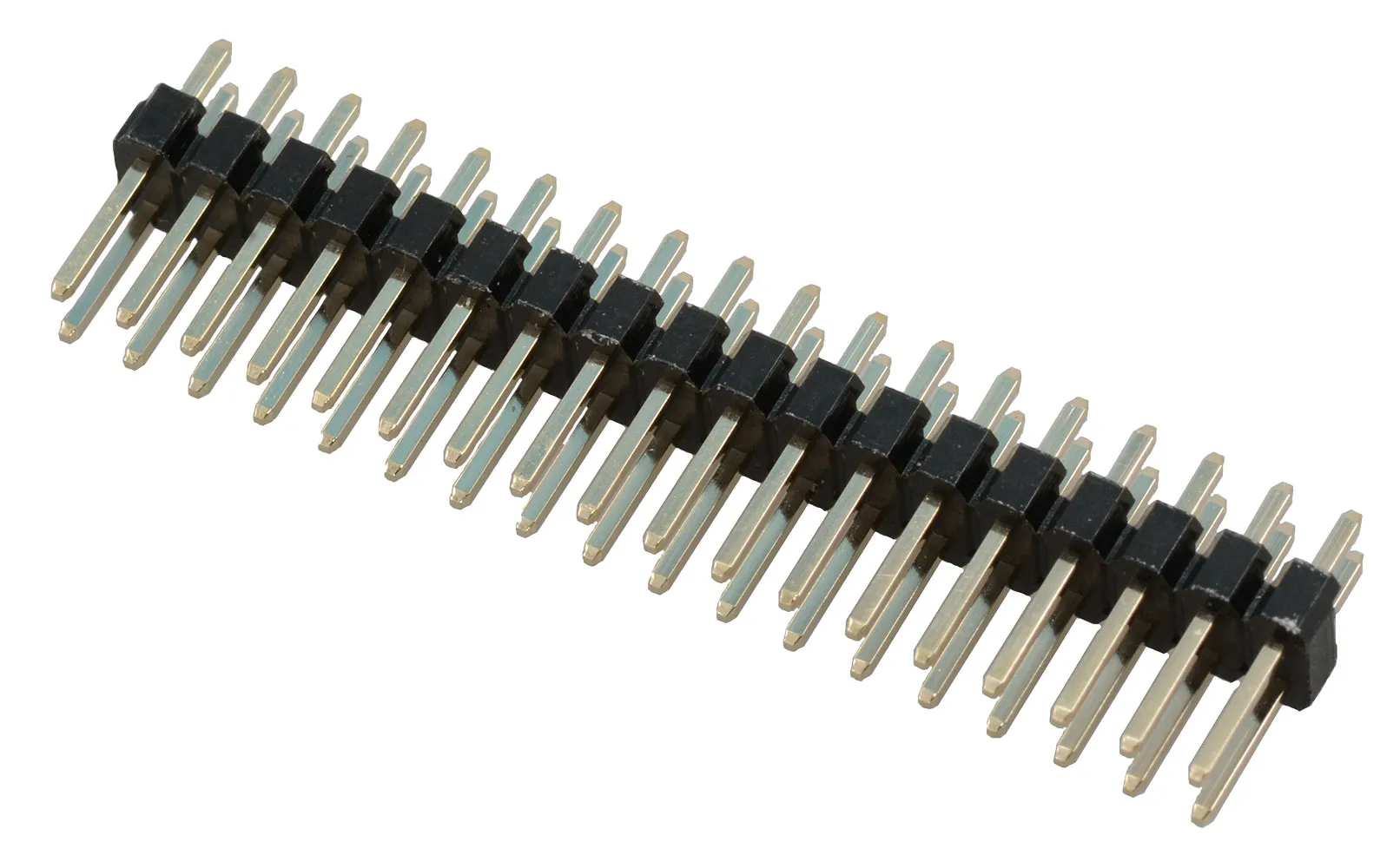

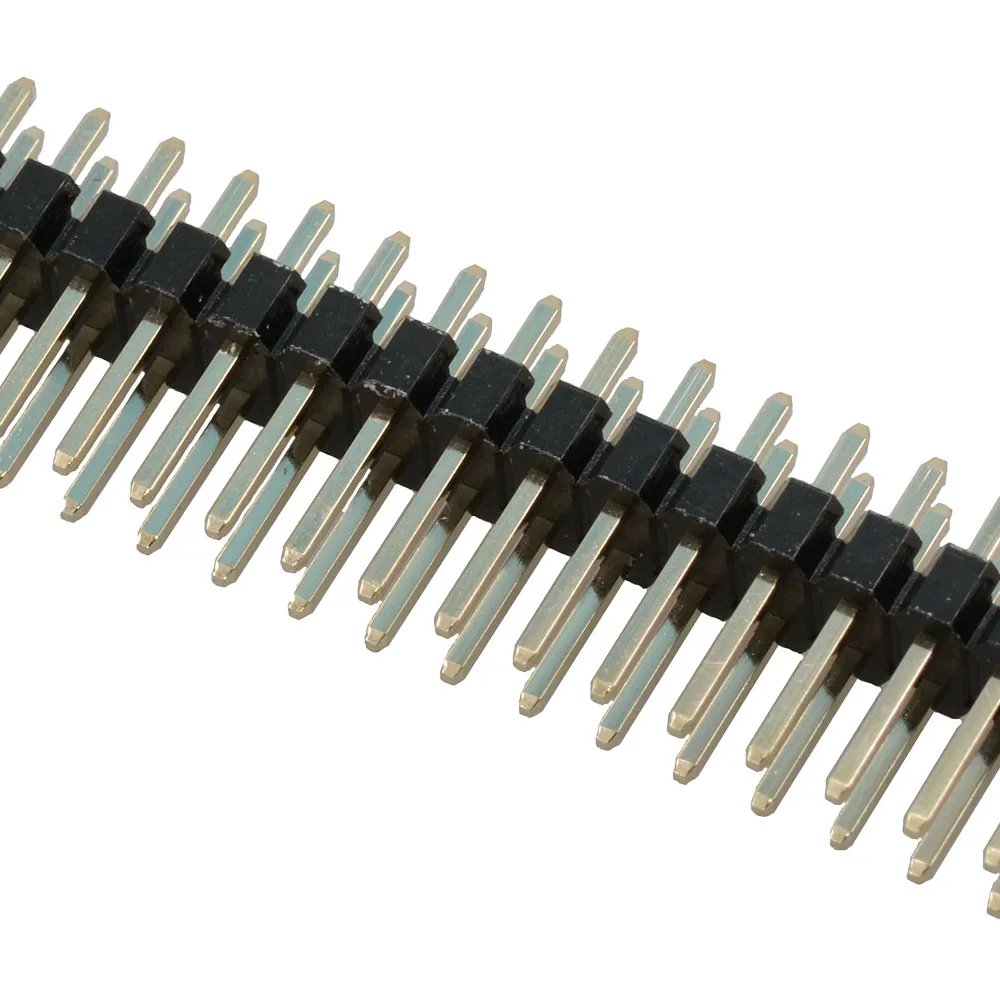

Unshrouded Pin Header Dual Row Vertical 36 Position (2x18) 2.54mm Pitch
Specifications
- Double row design (2 row)
- 36 positions (2x18)
- Goldtail
- Pin pitch: 0.1" (2.54 mm)
- Row pitch: 0.1" (2.54 mm)
- 0.025" square posts
- 0.23" mating length
- 0.120" solder tail
- Contact rating: 3 A
- Breakaway design, although more difficult with dual row
Product Identification
Manufacturer Series:ValuePro
Dimensions & Appearance
Body Orientation:Straight
Features
Board Mount Length:0.120 in.
Number of Rows:2
Housing Color:Black
Contact Material:Brass
Contact Length:0.23 in.
Pitch:0.1 in., 2.54 mm
Contact Plating:Gold Over Nickel
Number of Contacts:36
Housing Material:Polybutylene Terephthalate
Gender:Male
