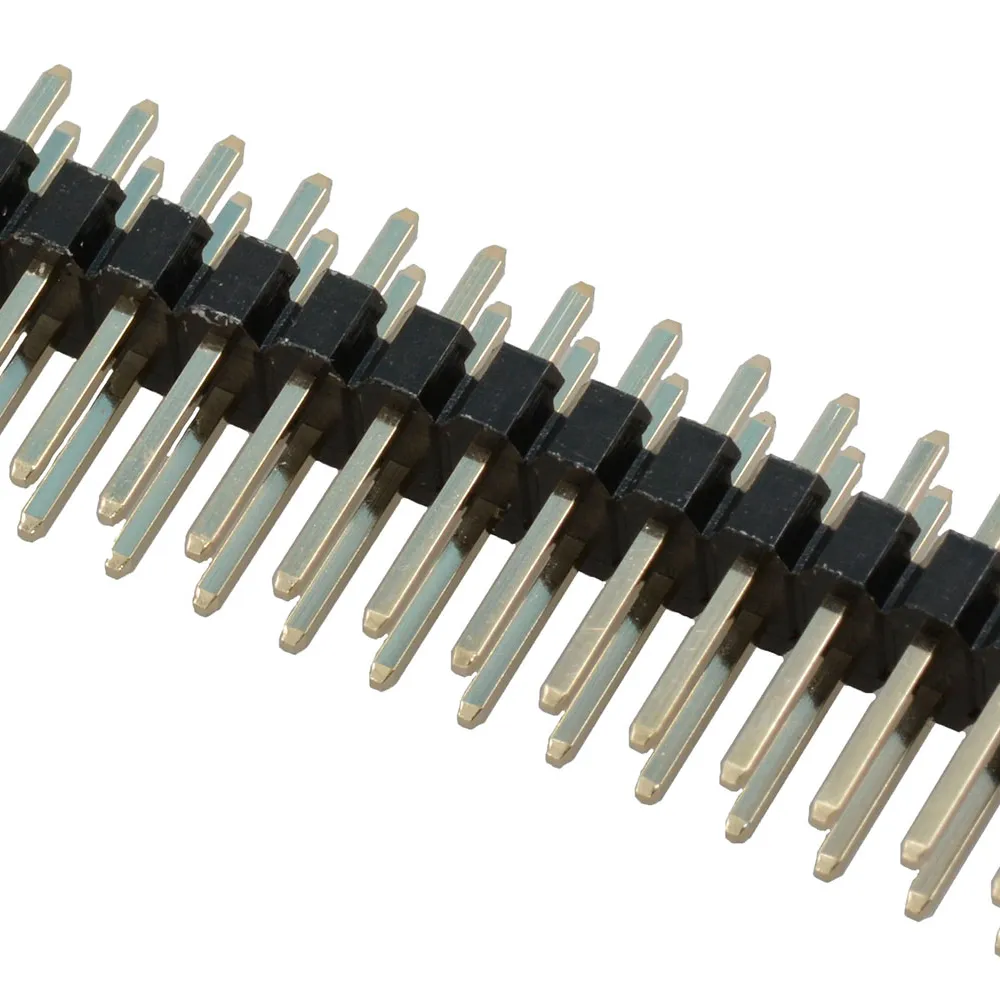

Unshrouded Pin Header Dual Row Vertical 30 Position 2.54mm Pitch

Specifications

  • Double row design (2 row)
  • 30 positions (2x15)
  • Goldtail
  • Pin pitch: 0.1" (2.54 mm)
  • Row pitch: 0.1" (2.54 mm)
  • 0.025" square posts
  • 0.23" mating length
  • 0.120" solder tail
  • Breakaway design, although more difficult with dual row

Product Identification

Manufacturer Series:ValuePro

Dimensions & Appearance

Body Orientation:Straight

Features

Board Mount Length:0.120 in.
Number of Rows:2
Housing Color:Black
Contact Material:Brass
Contact Length:0.23 in.
Pitch:0.1 in., 2.54 mm
Contact Plating:Gold Over Nickel
Number of Contacts:30
Housing Material:Polybutylene Terephthalate
Gender:Male
,
