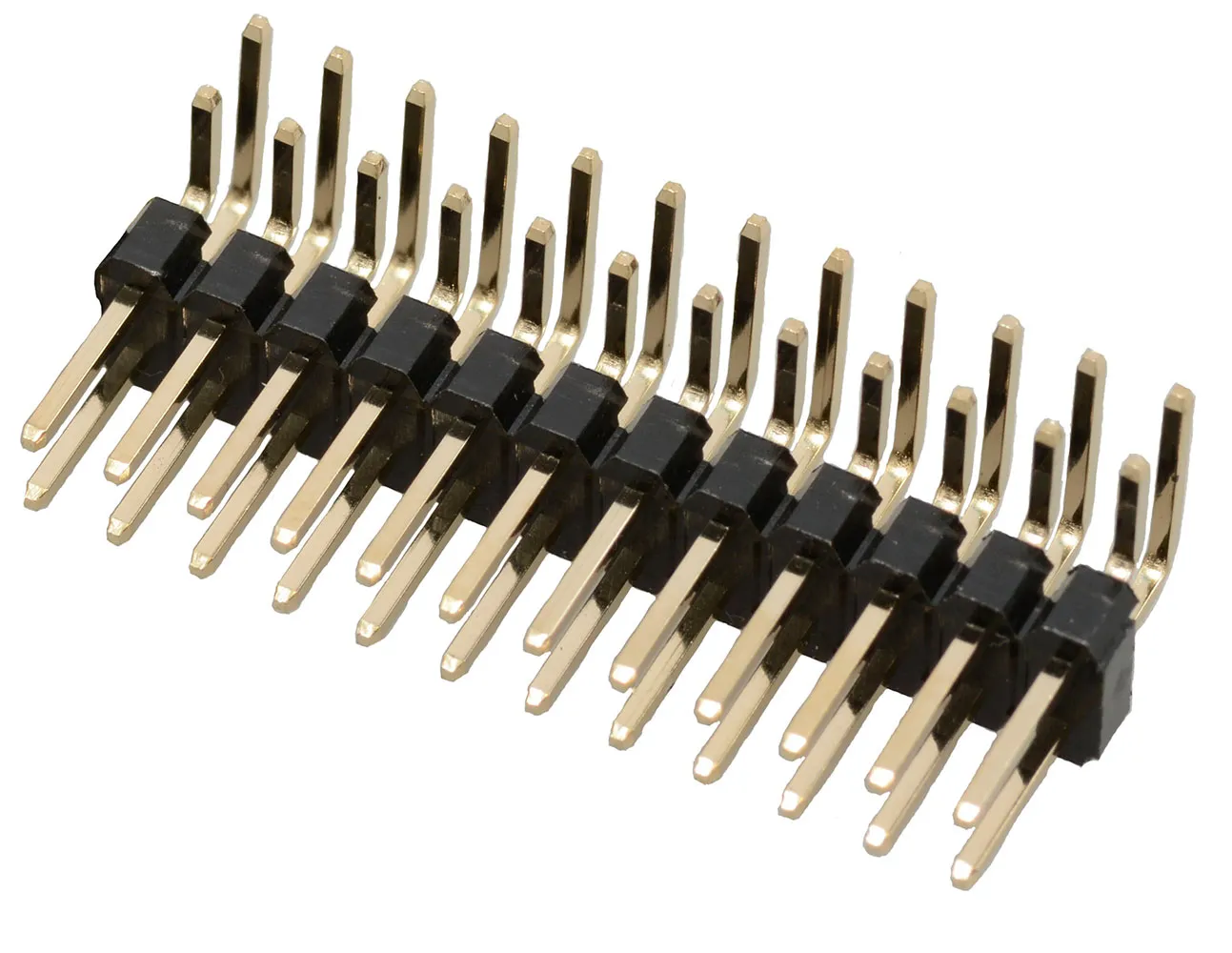

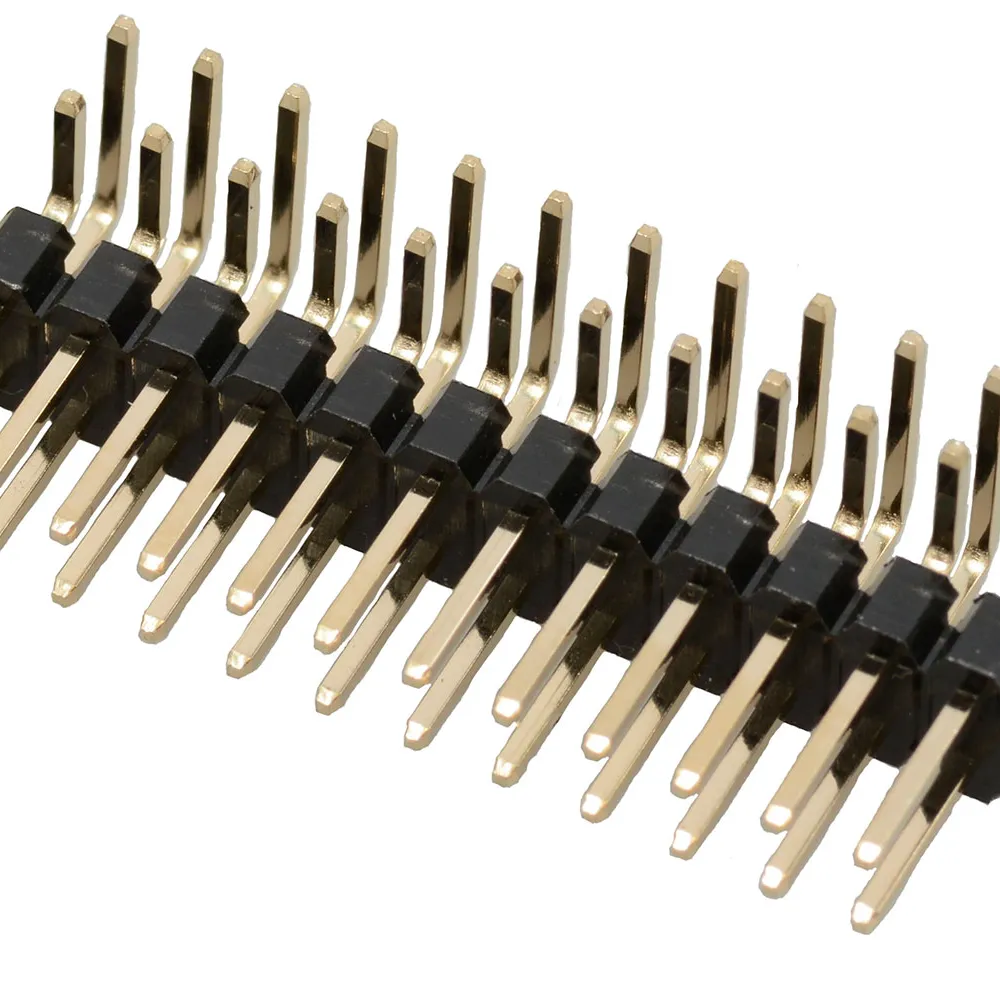

Unshrouded Pin Header Dual Row Right Angle 24 Position 2.54mm Pitch
Specifications
- Double row design (2 row)
- 24 positions (2x12)
- Goldtail
- Pin pitch: 0.1" (2.54 mm)
- Row pitch: 0.1" (2.54 mm)
- 0.025" square posts
- 0.23" mating length
- 0.120" solder tail
- Breakaway design, although more difficult with dual row
