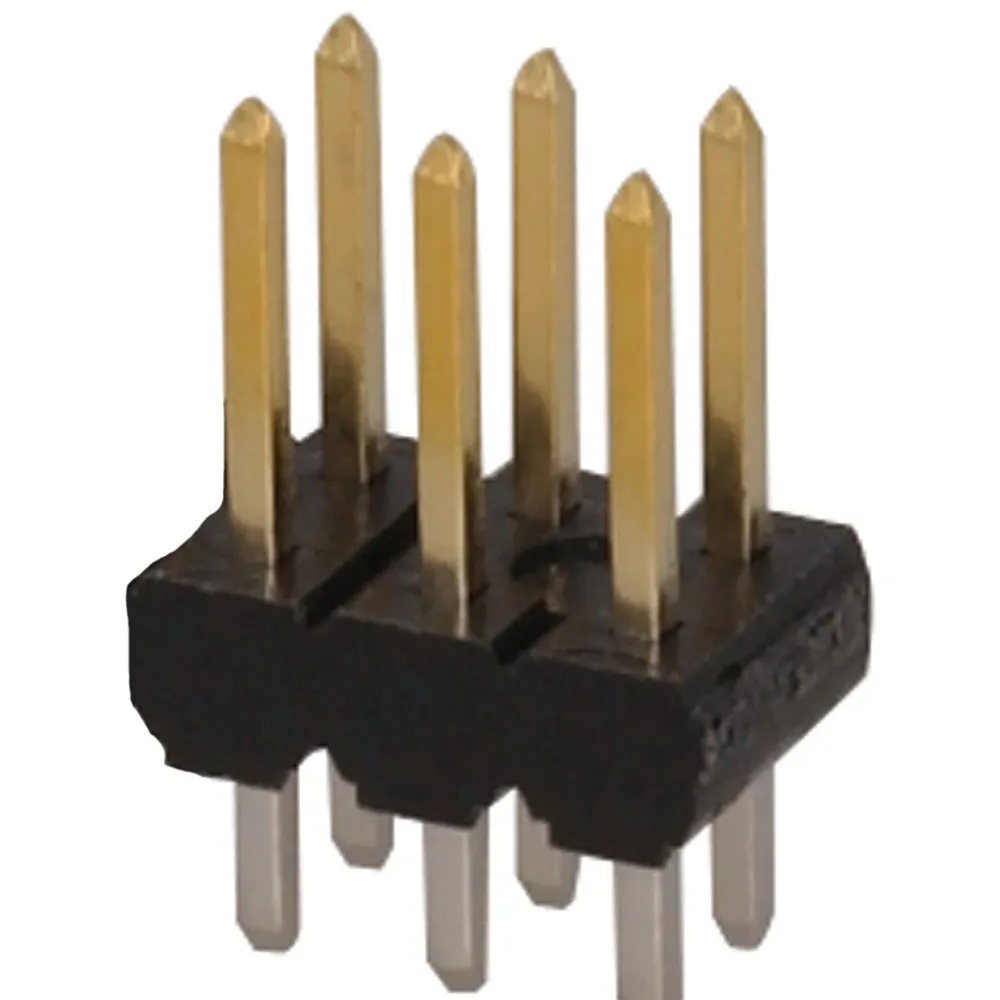

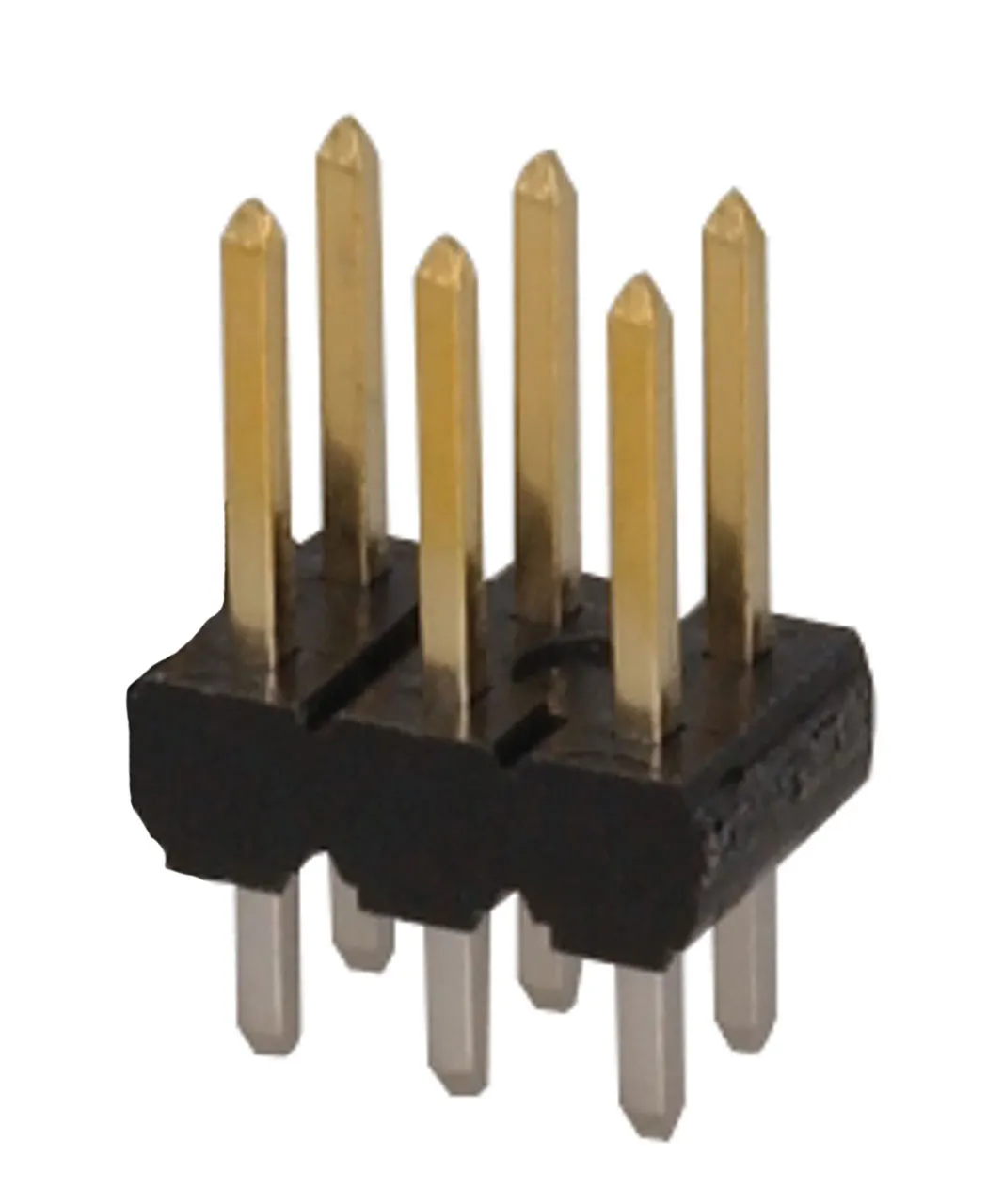

6-Position Straight Double Row Male Header
Specifications
- Brass contact
- Contact plating (mating side): Gold over nickel
- Contact Plating (board side): Tin
Product Identification
Manufacturer Series:ValuePro
Dimensions & Appearance
Body Orientation:Straight
Features
Board Mount Length:0.120 in.
Number of Rows:2
Housing Color:Black
Contact Material:Brass
Contact Length:0.23 in.
Pitch:0.1 in., 2.54 mm
Number of Contacts:6
Contact Plating:Gold Over Nickel
Housing Material:Polybutylene Terephthalate
Gender:Male
