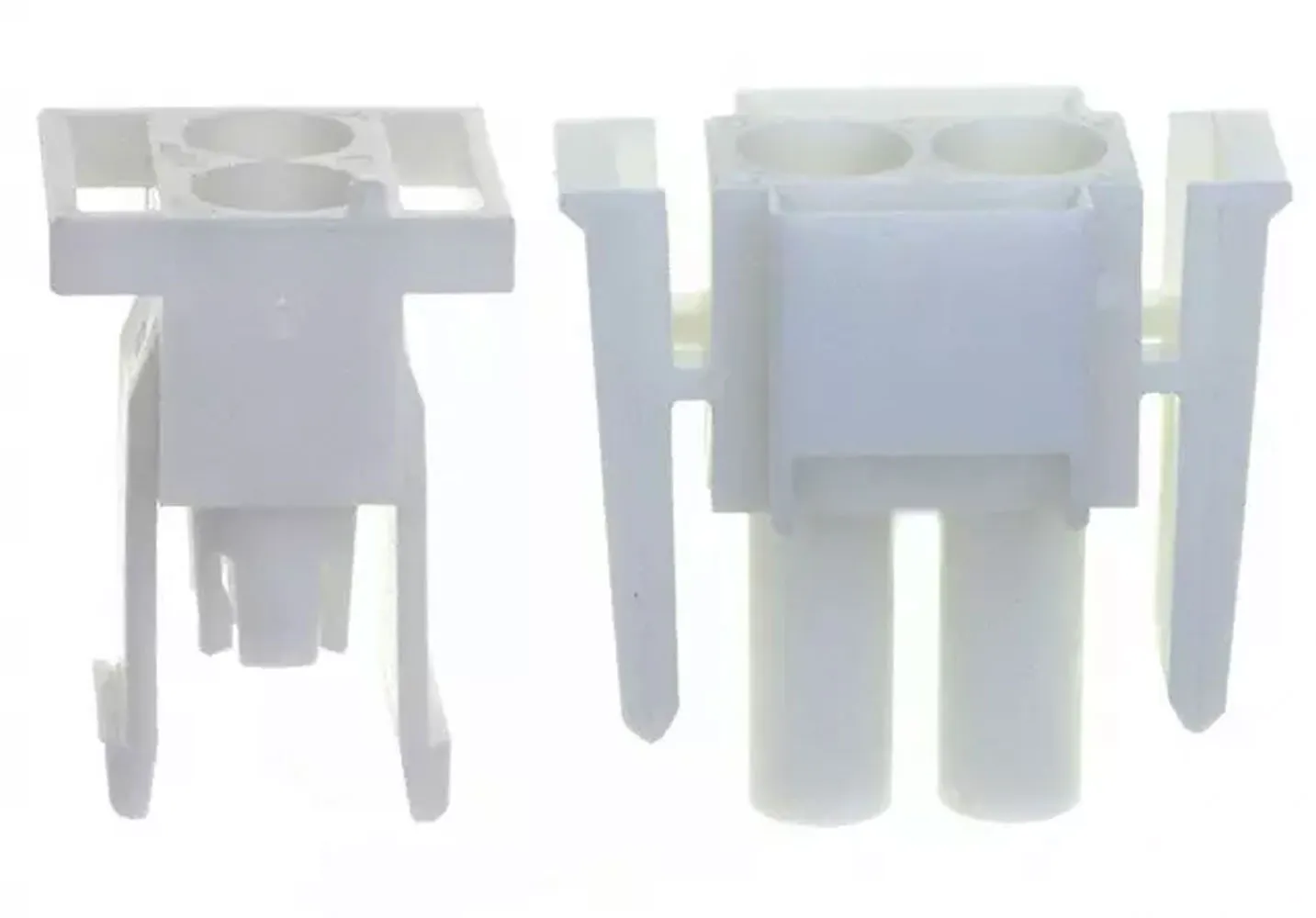

Universal MATE-N-LOK II 2-Position Plug Housing for Male or Female Contacts 0.25" (6.35mm) Free Hanging Crimp
Specifications
- Series: Universal MATE-N-LOK II
- Connector Type: Plug
- Contact Type: For Male of Female Contacts
- Pitch - Mating: 0.25" (6.35 mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing: n/a
- Number of Positions Loaded: None
- Mounting Type: Free Hanging (In-Line)
- Termination: Crimp
- Fastening Type: Latch Lock
- Insulation Color: White
- Note: Contacts Not Included
- Base Number: 770017
Use with Related Products
- Terminal Socket 18-24 AWG (Recommended: Mfg# 770253-3, p/n: 758815)
- Terminal Pin 14-20 AWG (Recommended: Mfg# 770248-1, p/n: 985268)
- Terminal Pin 10-12 AWG (Recommended: Mfg# 770003-3, p/n: 1977403)
- Terminal Socket 10-12 AWG (Recommended: Mfg# 770004, p/n: 2232665)
Product Identification
Product Type:Plug Housing
Manufacturer Series:MATE-N-LOK II
Family:770017
Dimensions & Appearance
Depth:13.97 mm
Length:22.99 mm
Mounting:Free Hanging (In-Line)
Body Orientation:Straight
Body/Shell Style:Plug
Operating conditions
Maximum Operating Temperature:120°C
Minimum Operating Temperature:-55°C
Features
Termination Type:Crimp
Number of Rows:1
Filter Feature:No
Mixed Contacts:NO
DIN Conformance:No
IEC Conformance:No
MIL Conformance:No
Empty Shell:Yes
Zero Insertion Force:NO
Number of Contacts:2
UL Flammability Code:94V-0
Option:GENERAL PURPOSE
Housing Material:Nylon 66
Contact Finish - Mating:N/A
Shell Material:Nylon GF
Mating Information:MULTIPLE MATING PARTS AVAILABLE
Maximum Contact Resistance:N/A
Contact Gender:Male or Female
Contact Material:N/A
Housing Color:White
Contact Plating:N/A
Wire Gauge (AWG):N/A
Voltage Rating:600 VAC
Current Rating:N/A
