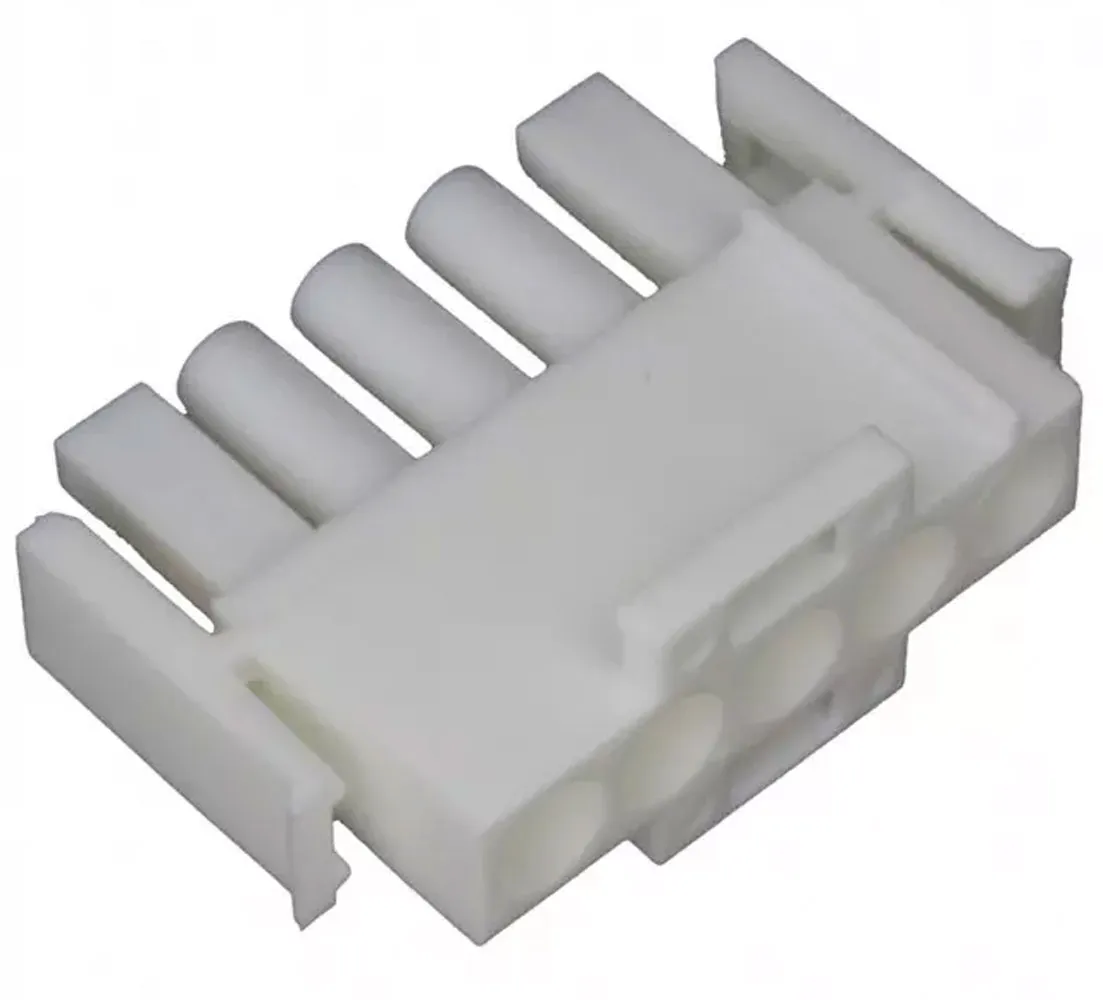

Universal MATE-N-LOK 5-Position Plug Housing for Male or Female Contacts 0.25" (6.35mm) Free Hanging Crimp

Specifications

  • Series: Universal MATE-N-LOK
  • Connector Type: Plug
  • Contact Type: For Male of Female Contacts
  • Pitch - Mating: 0.25" (6.35 mm)
  • Number of Positions: 5
  • Number of Rows: 1
  • Row Spacing: n/a
  • Number of Positions Loaded: None
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Fastening Type: Latch Lock
  • Insulation Color: Natural
  • Note: Contacts Not Included
  • Base Number: 350809

Product Identification

Product Type:Plug Housing
Manufacturer Series:MATE-N-LOK, COMPATIBLE CONTACTS: 350924-1; 350561-1; 350561-2; 350561-7
Family:350809

Dimensions & Appearance

Mounting:Free Hanging (In-Line)
Body Orientation:Straight
Body/Shell Style:Plug

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-55°C

Features

Termination Type:Crimp
Number of Rows:1
Filter Feature:No
Mixed Contacts:NO
DIN Conformance:No
IEC Conformance:No
MIL Conformance:No
Empty Shell:Yes
Zero Insertion Force:NO
UL Flammability Code:94V-0
Option:GENERAL PURPOSE
Shell Material:Nylon
Contact Finish - Mating:N/A
Number of Contacts:5
Mating Information:MULTIPLE MATING PARTS AVAILABLE
Housing Color:Natural
Maximum Contact Resistance:N/A
Contact Gender:Male or Female
Contact Material:N/A
Housing Material:Nylon
Contact Plating:N/A
Wire Gauge (AWG):N/A
Voltage Rating:600 VAC
Current Rating:N/A
,
