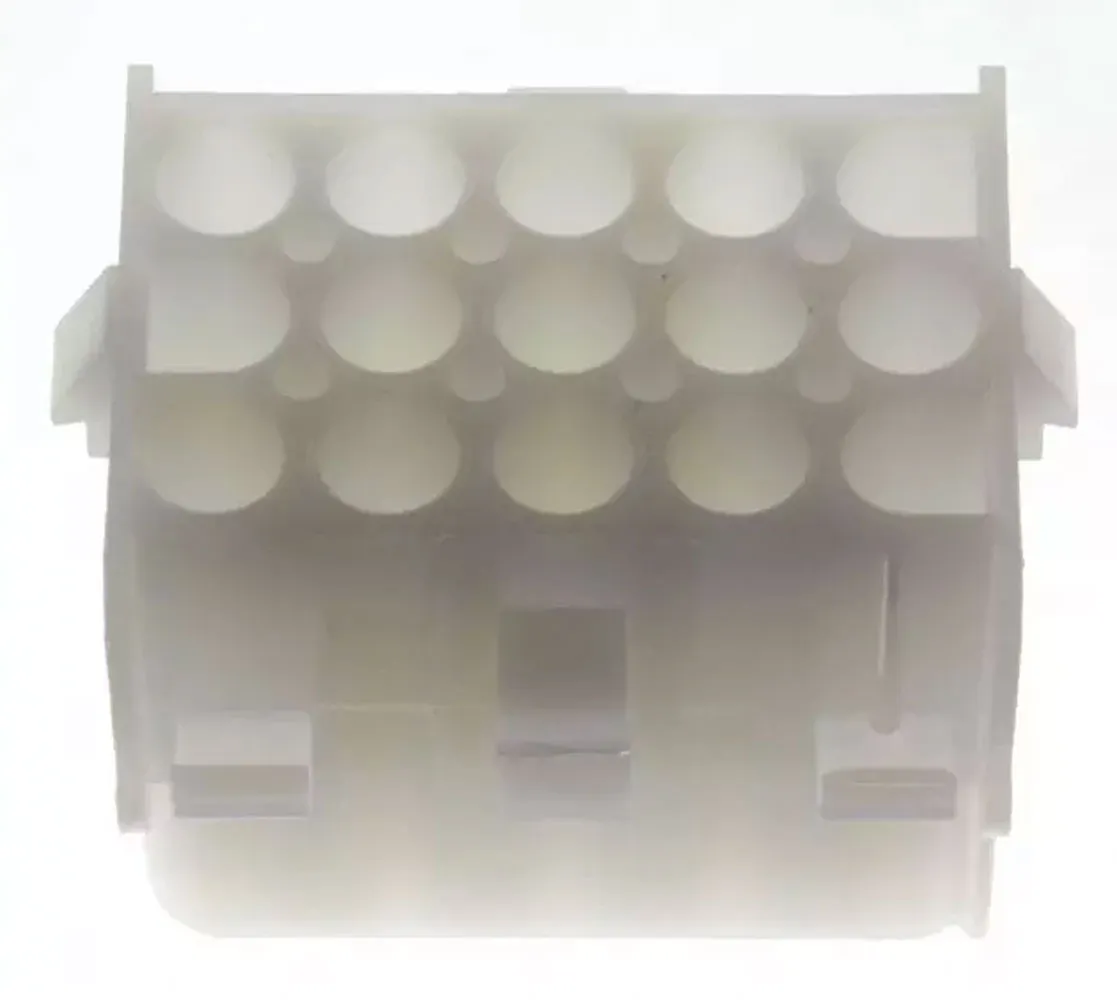

Universal MATE-N-LOK 15-Position 3-Row Rectangular Receptacle Housing for Male or Female Contacts 0.25" (6.35mm) Panel Mount Crimp

Specifications

  • Series: Universal MATE-N-LOK
  • Connector Type: Receptacle
  • Contact Type: For Male of Female Contacts
  • Pitch - Mating: 0.25" (6.35 mm)
  • Number of Positions: 15
  • Number of Rows: 3
  • Row Spacing: n/a
  • Number of Positions Loaded: None
  • Mounting Type: Panel Mount, Snap-In
  • Termination: Crimp
  • Fastening Type: Locking Ramp
  • Insulation Color: Natural
  • Note: Contacts Not Included
  • Base Number: 480711

Product Identification

Product Type:Receptacle Housing
Manufacturer Series:MATE-N-LOK, PANEL MOUNTABLE
Family:480711

Dimensions & Appearance

Mounting:Panel Mount, Snap-In
Body Orientation:Straight
Body/Shell Style:Receptacle

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-55°C

Features

Termination Type:Crimp
Filter Feature:No
Empty Shell:Yes
Number of Rows:3
Mating Information:MULTIPLE MATING PARTS AVAILABLE
Housing Color:Natural
Maximum Contact Resistance:N/A
Contact Gender:Male or Female
Number of Contacts:15
Contact Material:N/A
Housing Material:Nylon
Contact Plating:N/A
Voltage Rating:600 VAC/VDC
Current Rating:N/A
,
