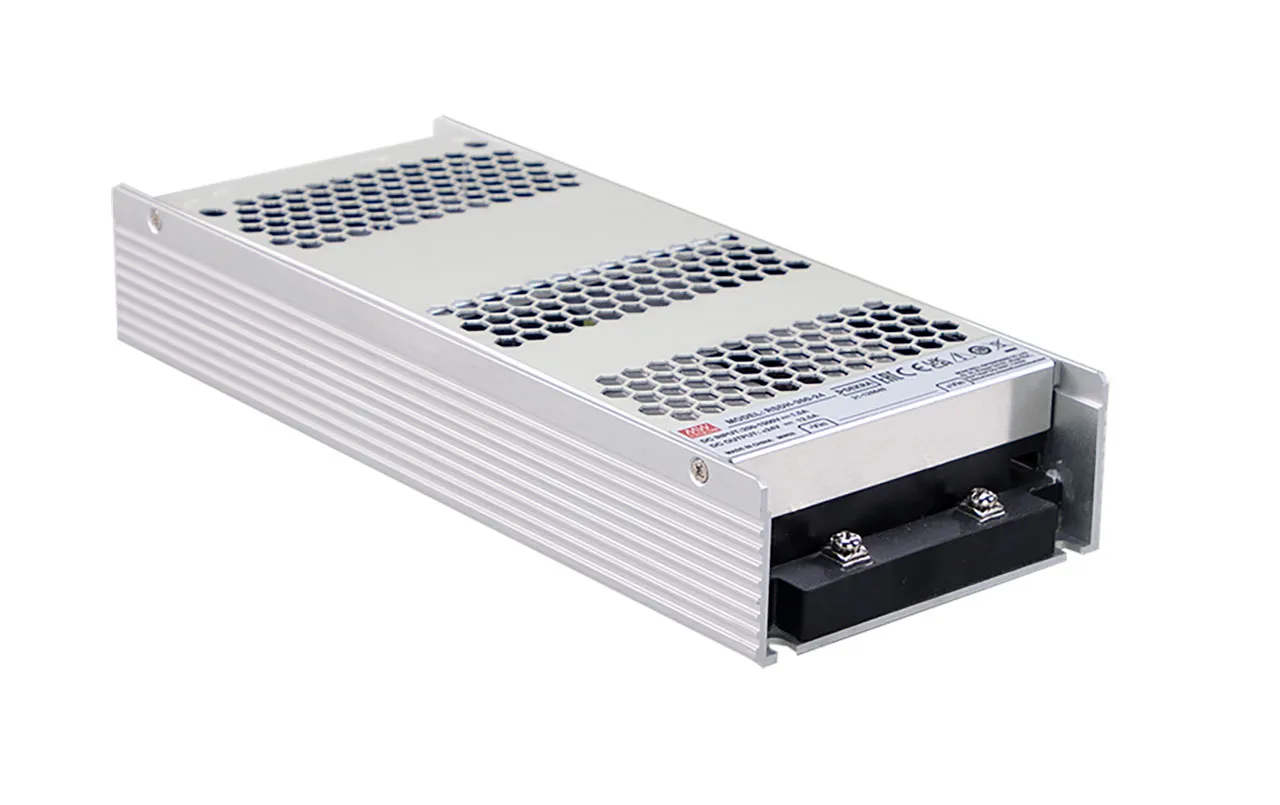

Ultra-High Input Enclosed Power Supply DC-DC Converter 24V 12.5A 300W 250-1500VDCin

MEAN WELL

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$99.800

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$99.800	-	-
5+	$95.000	4.80	4.81%
10+	$90.800	9.00	9.02%
20+	$88.200	11.60	11.62%

Features

24V @ 12.5A
Protections: Short circuit / Overload / Over voltage / Over temperature / DC input under voltage / DC input reverse polarity
250-1500Vdc 6:1 ultra-wide input range
Withstand 1700 Vdc surge input for 10 seconds
4KVac I/O high isolation (Reinforced isolation)
Fanless design, half encapsulated, cooling by free air convection
Operating altitude up to 5000 meters
1U low profile 41mm
3 year warranty

Overview

The Ultra-High Input Enclosed Power Supply DC-DC Converter supplies 24V at 12.5A with an input voltage range of 250-1500Vdc. The power supply is highly efficient with low ripple noise and complete protection.

Product Identification

Product Type:DC to DC Converter SMPS

Manufacturer Series:RSDH-300

Compliance

Agency Approvals:CB, CE, EN, EAC

Dimensions & Appearance

Color:Silver

Height:1.6 in.

Width:3.4 in.

Length:7.5 in.

Mounting:Chassis

Operating conditions

Minimum Operating Temperature:-40°C

Maximum Operating Temperature:80°C

Packaging

Package:Railway Enclosed

Input

Input Voltage Range:250 VDC to 1500 VDC

Maximum Input Current:4 A

Output

Number of Outputs:1

Output Connector Type:Screw Terminal Block

Output Voltage:24 VDC

Additional Output Voltages (VDC):N/A

Output Current:12.5 A

Features

Efficiency:90%

Power Rating:300 W
