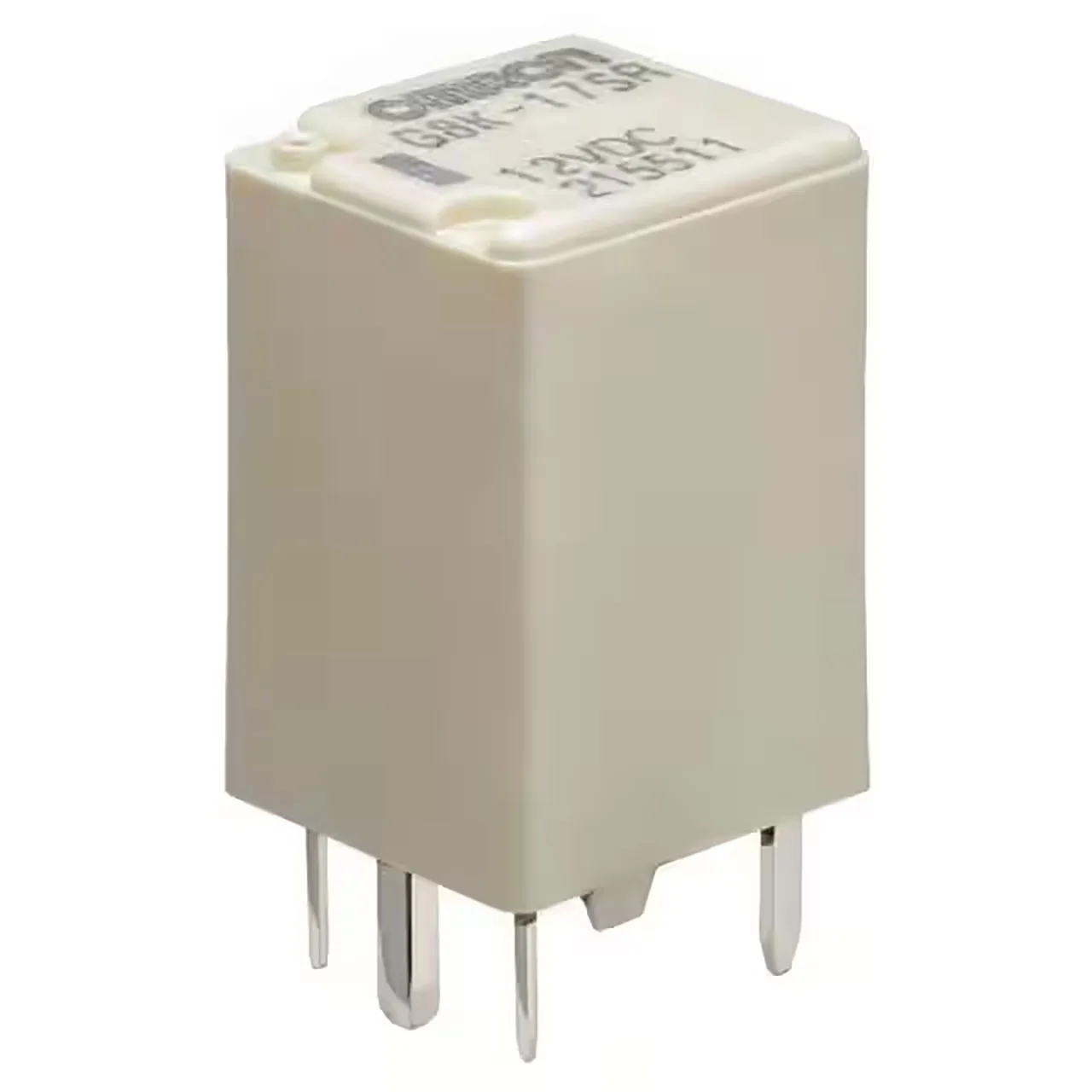

Ultra Miniature Automotive Relay for Motor and Control of BCM Applications 12VDC SPDT 1 Form C 30A

Features

• Coil Type: Non-Latching
• Coil Current: 75 mA
• Coil Voltage: 12VDC
• Contact Form: SPDT (1 Form C)
• Contact Rating: 30 A
• Switching Voltage: N/A
• Must Operate Voltage: 6.9 VDC
• Must Release Voltage: 1 VDC
• Operate Time: 10 ms
• Release Time: 5 ms
• Features: Sealed - Flux Protection
• Mounting Type: Socketable
• Termination Style: Plug In
• Operating Temperature: -40°C to 125°C
• Contact Material: Silver Alloy
• Coil Power: 900mW
• Coil Resistance: 160 Ohms

Overview

This ultra miniature power PCB relay is designed for automotive, DC 12 V applications, DC motor and resistive application control. The automotive DC applications include door locks, power windows, power seats, power slide door closure, horn, etc.
