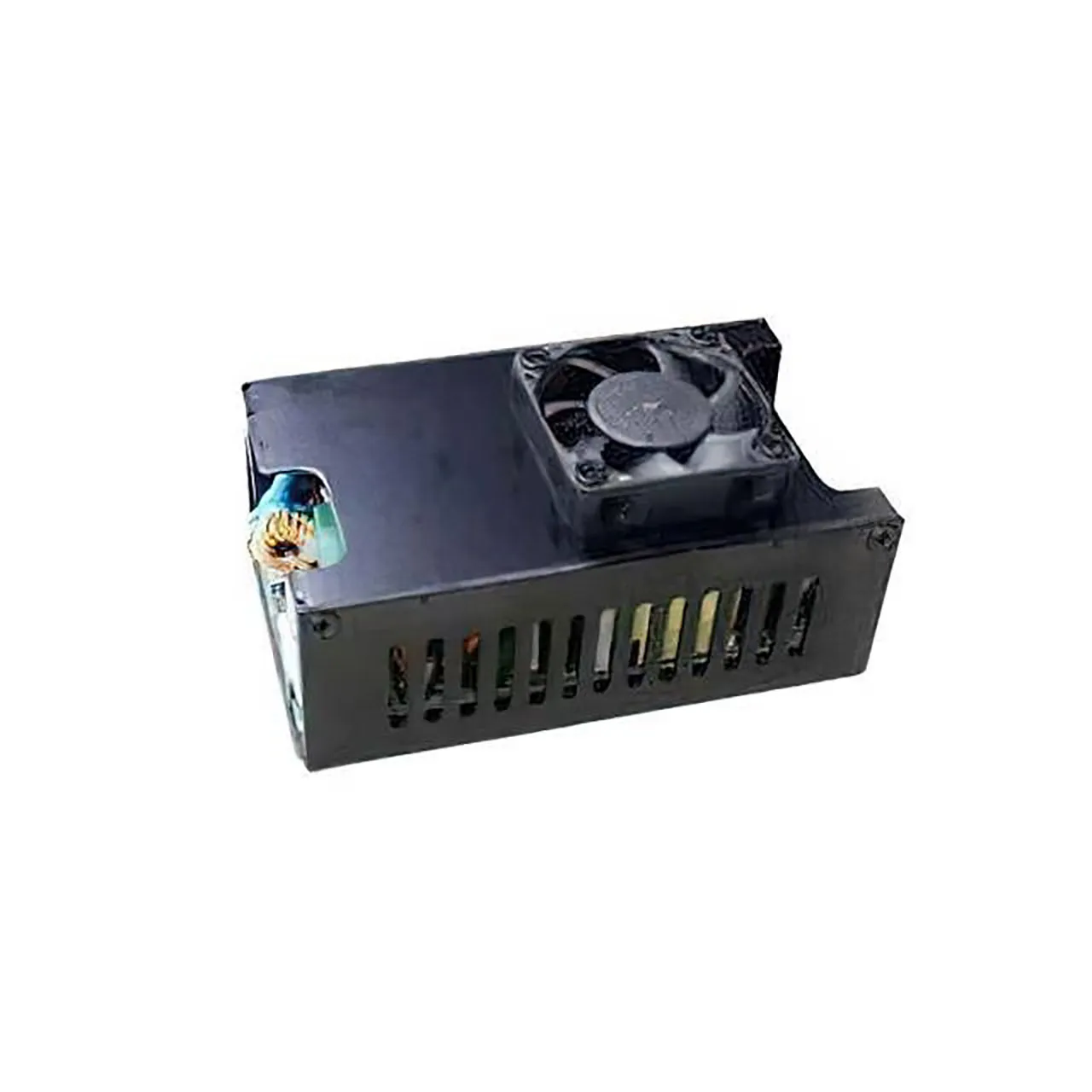

U-Bracket Medical AC-DC Switching Power Supply 48 VDC 5 A 240 Watt

Features

  • Cooling by free air convection
  • 240W when using 10 CFM forced air fan
  • 2x MOPP insulated
  • Built-in active PFC
  • Built-in 12V / 0.5A fan supply
  • Family: HDM240U
  • Output Voltage - Channel 1: 48 VDC
  • Output Current - Channel 1: 5 A
  • Number of Outputs: 1
  • Maximum Output Power (W): 240
  • Input Voltage: 90 VAC to 264 VAC
  • Input Frequency: 47 Hz to 63 Hz
  • Maximum Input Current: 3 A
  • Type: Switching
  • Industry: Commercial, Industrial, Medical
  • Isolation Voltage: 4000V
  • Style: U-Bracket
  • Mounting Style: Chassis
  • Length (inch): 4.02
  • Width (inch): 2.44
  • Height (inch): 1.544
  • Agency Approvals: UL, CUL, CB, CE, EN, IEC
  • Efficiency (%): 94
  • Output Connector Type: Screw Terminal Block

,
