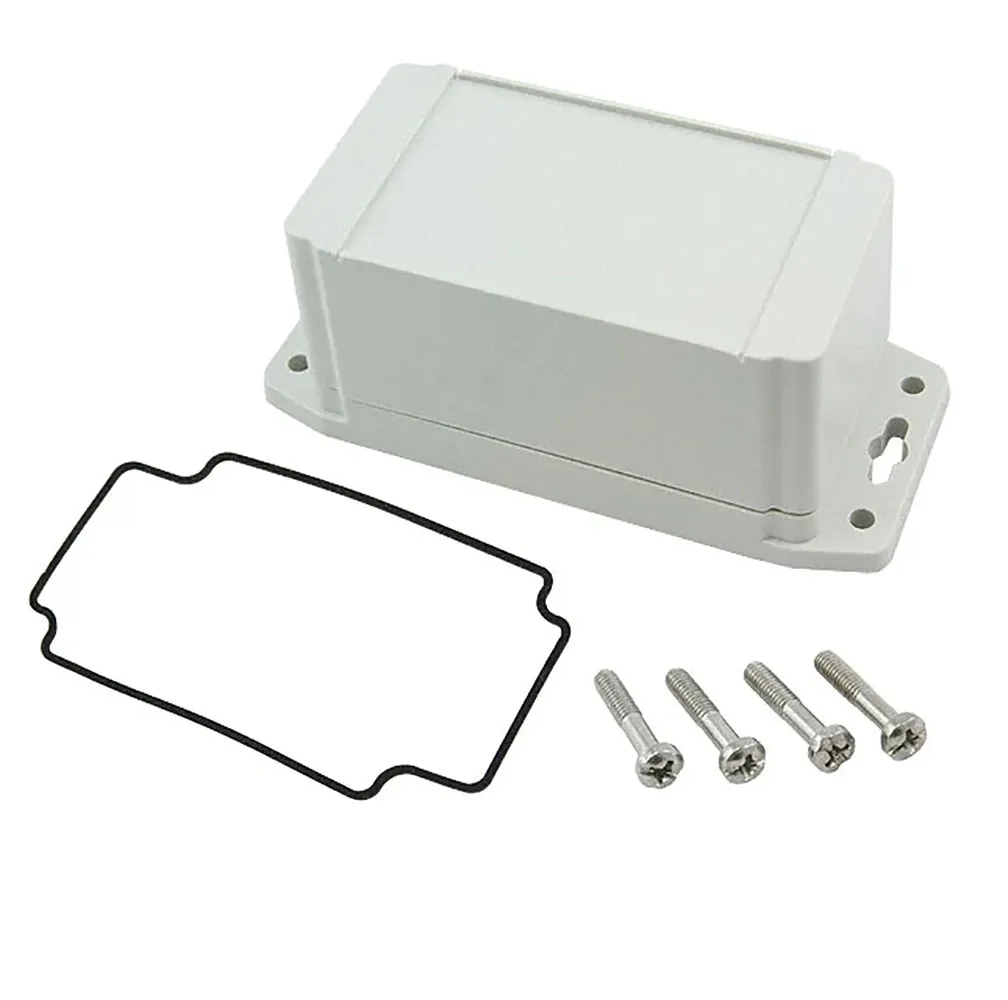

Type 4x & 6P ABS Plastic Watertight Enclosure with Flanged Lid Light Gray 120x66x62mm

Features

• Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls etc. etc.)
• Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components (see photo features for details).
• Designed for wall mounting. Interior is secure as lid screws are behind the lid. Can be made more secure if wall mounted with security screws (tamper resistant screws).
• Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
• Standoffs molded in the interior of the lid & enclosure - designed for #4 x 1/4" self tapping screws (Hammond part number 1555TS100)
• General purpose ABS plastic (material carries a UL flammability rating of UL94 HB). Not recommended for outdoor use.
• Color is a light gray (RAL 7035) to help keep heat absorption down.
• Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
• Gasket is one piece made from high temperature, U.L. listed silicone.
• Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.
• Flanged lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals.
• Flanged lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
• Internal features are maximized for mounting options and vary with size:
  • Standoffs (#6 self tapping screws) for P.C. board or inner panel
• Size: 4.7"L x 2.6"W x 2.44"H
