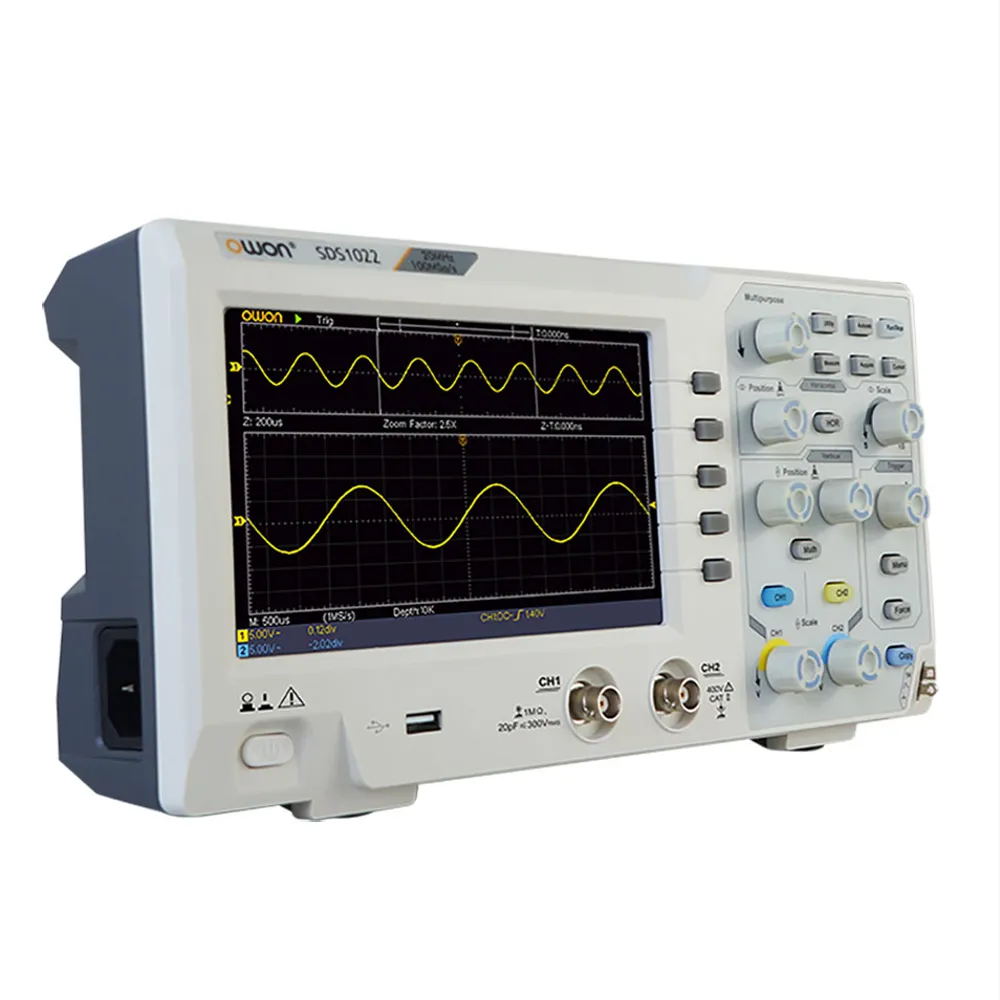

Two Channel 20 MHz Super Economical Digital Oscilloscope 100MS/s 7" Color LCD

Features

• 20 MHz bandwidth
• 100 MS/s sample rate
• Ultra-thin body
• 7" high resolution LCD, 800 x 480 pixels
• SCPI, and LabVIEW supported

Specifications

• Bandwidth: 20 MHz
• 2 channel
• Sample Rate: 100 MS/s
• Interpolation: Sin(x)/x
• Scanning Speed: 5 ns/DIV to 1000 s/DIV, step by 1-2-5
• Relay Time Accuracy: ±100 ppm
• Sensitivity: 5 mV/DIV to 10 V/DIV
• Vertical Resolution (A/D): 8 bits (2 channels simultaneously)
• Trigger Type: Edge, Video
• Trigger Mode: Auto, Normal, Single
• Video Trigger: Supports standard NTSC, PAL and SECAM broadcast systems
• Record Length: 10K
• Size: 11.85"W x 5.98"H x 2.76"D
• Fuse: 2A, T class, 250V

Resources & Downloads

• SCPI commands for SDS1000 Series DSO (.pdf)
• USB driver for all series OWON DSO and AWG (.zip)
• PC software for OWON SDS1000 DSO (.zip)
