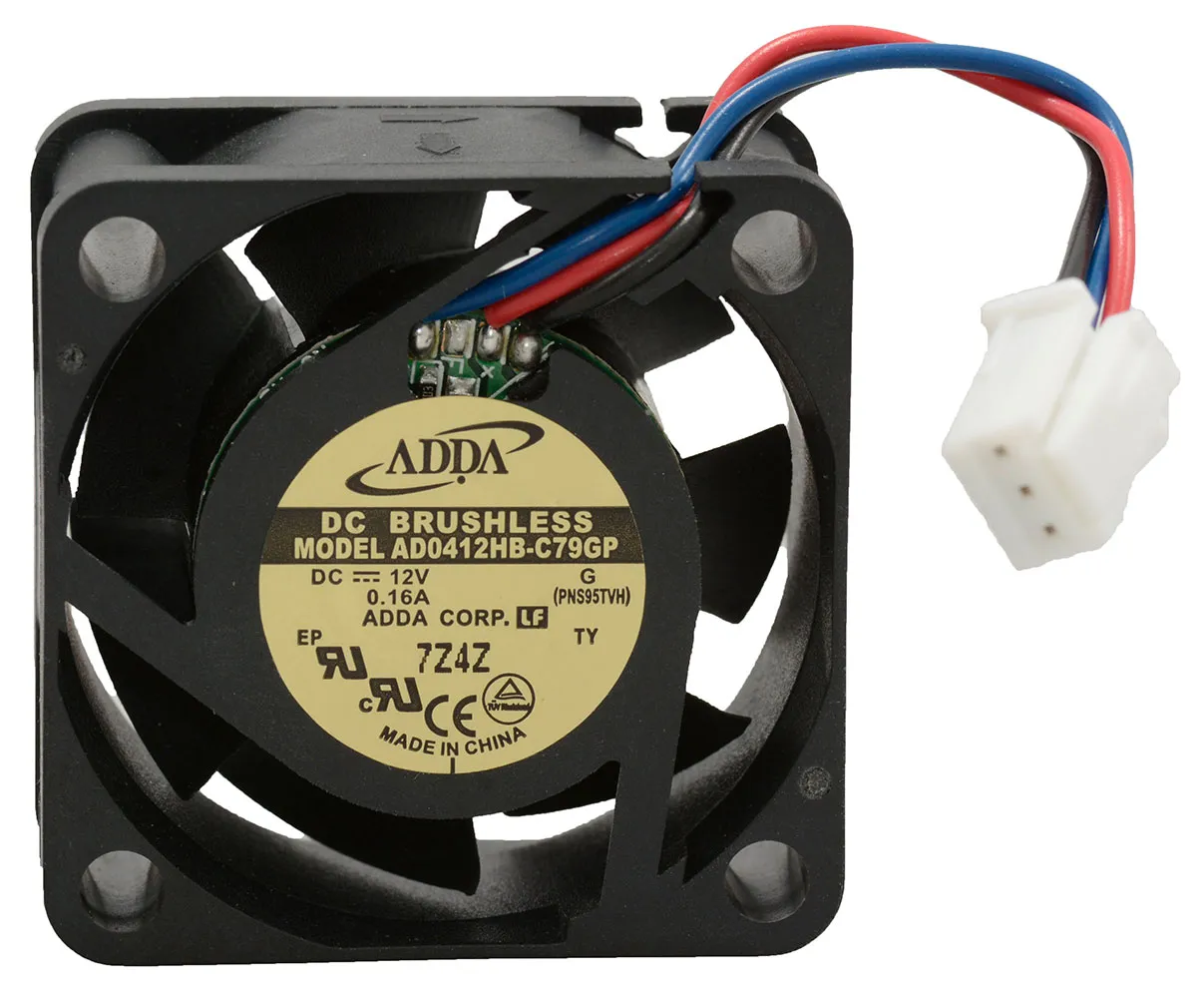

12 VDC 40 mm x 20 mm Tubeaxial Fan Ball 9.0 CFM
High Speed, Ball Bearing, FG - TachometerSpecifications:
- Voltage: 12 VDC
- Current: 160 mA
- Power: 1.92 Watt
- Rated Speed: 7800 RPM
- Air Flow: 9.0 CFM
- Noise: 32 dBA
- Size: 40 mm x 40 mm x 20 mm
- Connection: (3)-2" Lead Wires w/ connector, Positive, Negative, Tachometer
- Agency Approvals: UL/CSA/TUV
Product Identification
Product Type:DC Fan
Manufacturer Series:ValuePro
Compliance
Compliance:Compliance Docs
Agency Approvals: CE, CUL, UL
Dimensions & Appearance
Depth:20 mm
Height:40 mm
Width:40 mm
Features
Bearing:Ball
Noise (dBA):36
Termination:2" Wires (3) w/ conn., PWM
Voltage Rating:12 VDC
Power Rating:1.92 W
Air Flow (CFM):9
Current Rating:160 mA
