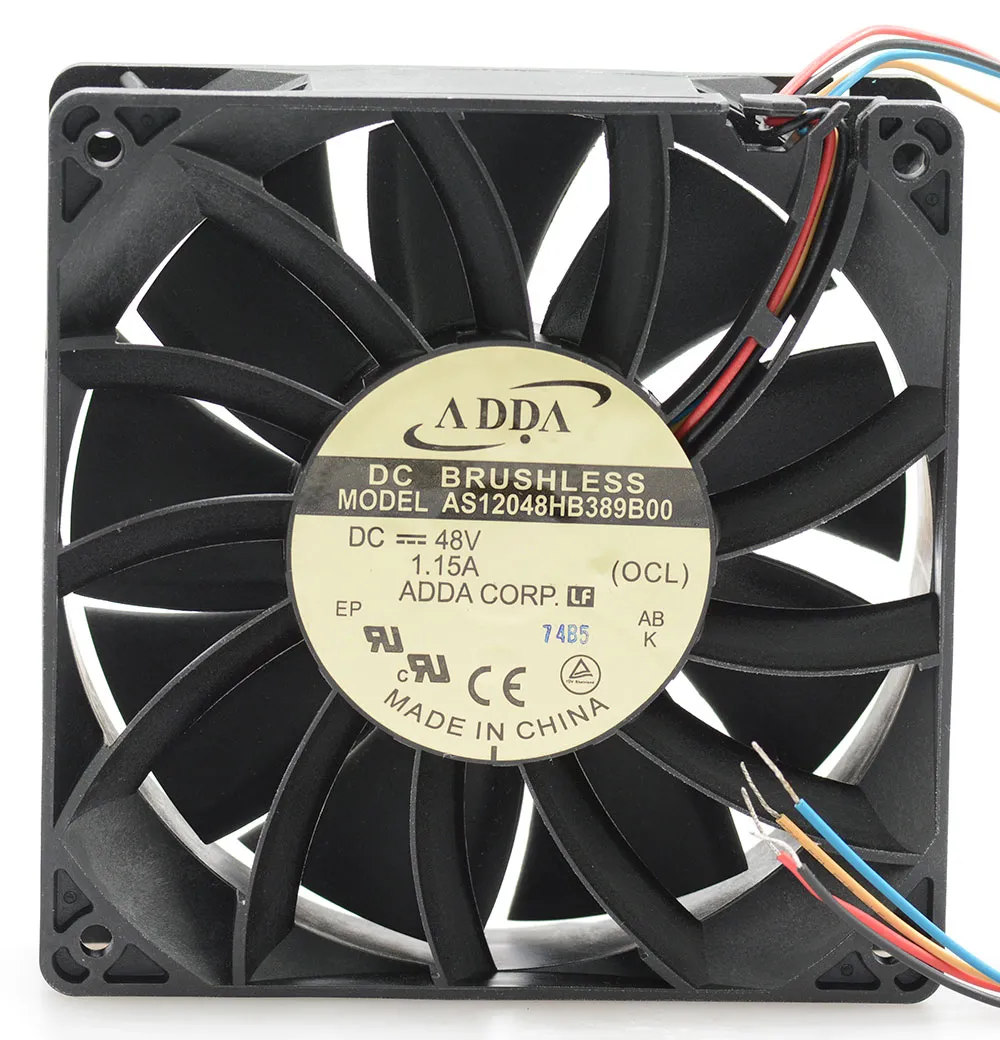

Tubeaxial Fan 120 x 120 x 38 mm 48VDC Brushless (4) 12" Wires (speed sensor+PWM) 228.4 CFM

Specifications

  • Voltage (VDC): 48
  • Length (mm): 120
  • Width (mm): 120
  • Height (mm): 38
  • Air Flow (CFM): 228.4
  • Bearing: Ball
  • Current (mA): 1150
  • Power (Watts): 55.2
  • Agency Approvals: UL/CUL/TUV/CE
  • Noise (dBA): 67.7
  • Connection (Leads): (4) 12", speed sensor & PWM
  • Product Type: Fan

Product Identification

Product Type:DC Fan
Manufacturer Series:ValuePro

Compliance

Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:38 mm
Width:120 mm
Height:120 mm

Features

Bearing:Ball
Speed:6000 rpm
Voltage Rating:48 VDC
Termination:12" Wires (4), speed & PWM
Noise (dBA):67.7
Air Flow (CFM):228.4
Power Rating:55.20 W
Current Rating:1150 mA
,
