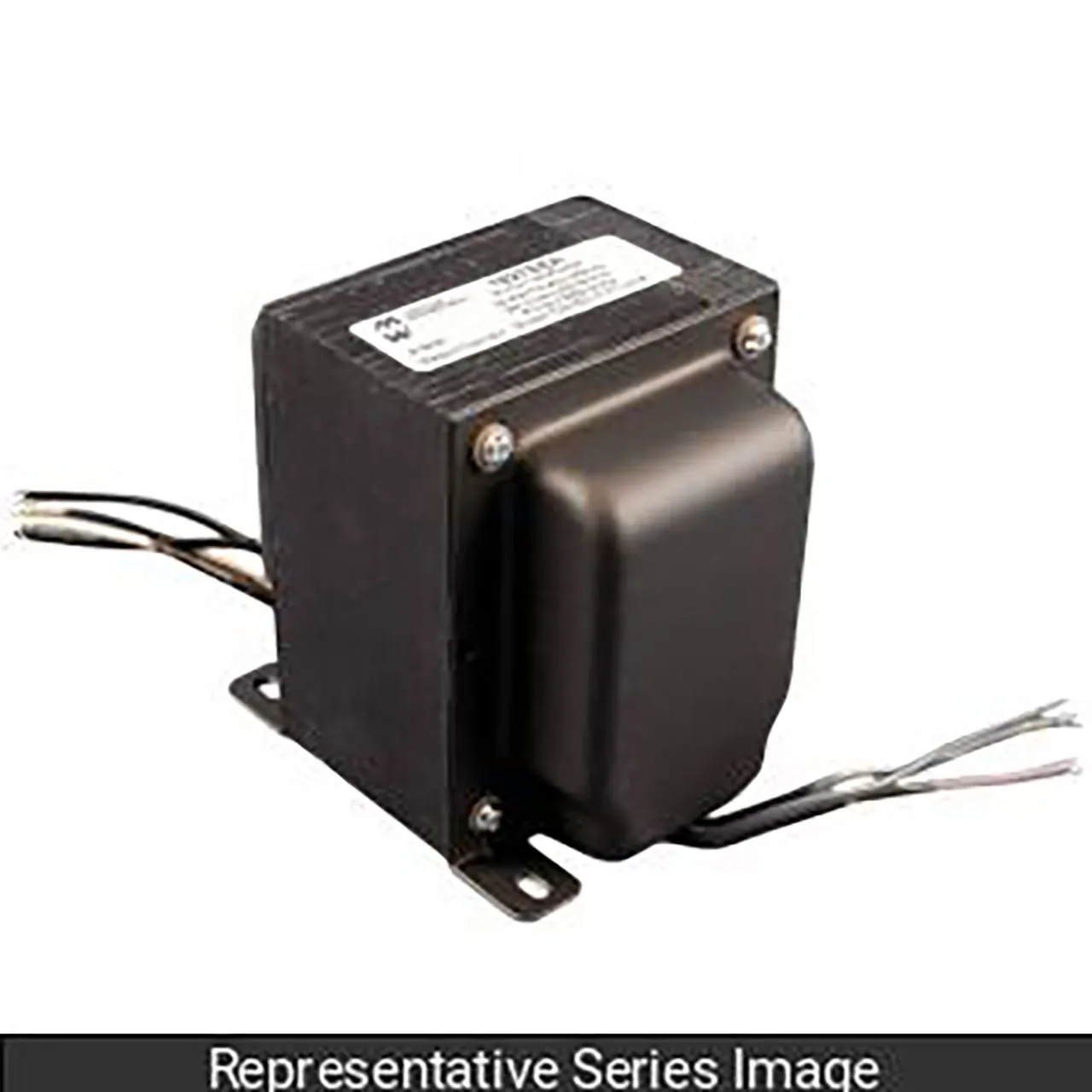

Tube Output Transformer Single Ended, 30W, Primary 1250 Ohms, 200 Ma.

Features

• Material: N/A
• Audio Watts: 30
• Impedance (Ohms): 1250
• Primary Max. DC Bias (mA): 200 ma.
• Inductance (H): 14 Henrys
• Ultra-Linear 40% Primary Tap: Yes
• Secondary Impedance: 42468
• Hipot Test (VRMS): 2000
• Suggested Tubes - Triodes: Parallel - 2A3, 6A3, 6B4G, 300B, 572B, 811A
• Suggested Tubes - Pentodes: Parallel - 6550, 6CA7
• USMCA Compliant: No
• RoHS Compliant: Yes
• REACH Compliant: Yes
• ECCN: EAR99

Overview

Tube output transformer, single ended , 30W, primary 1250 ohms, 200 ma..

Resources & Downloads

• CAD PDF
