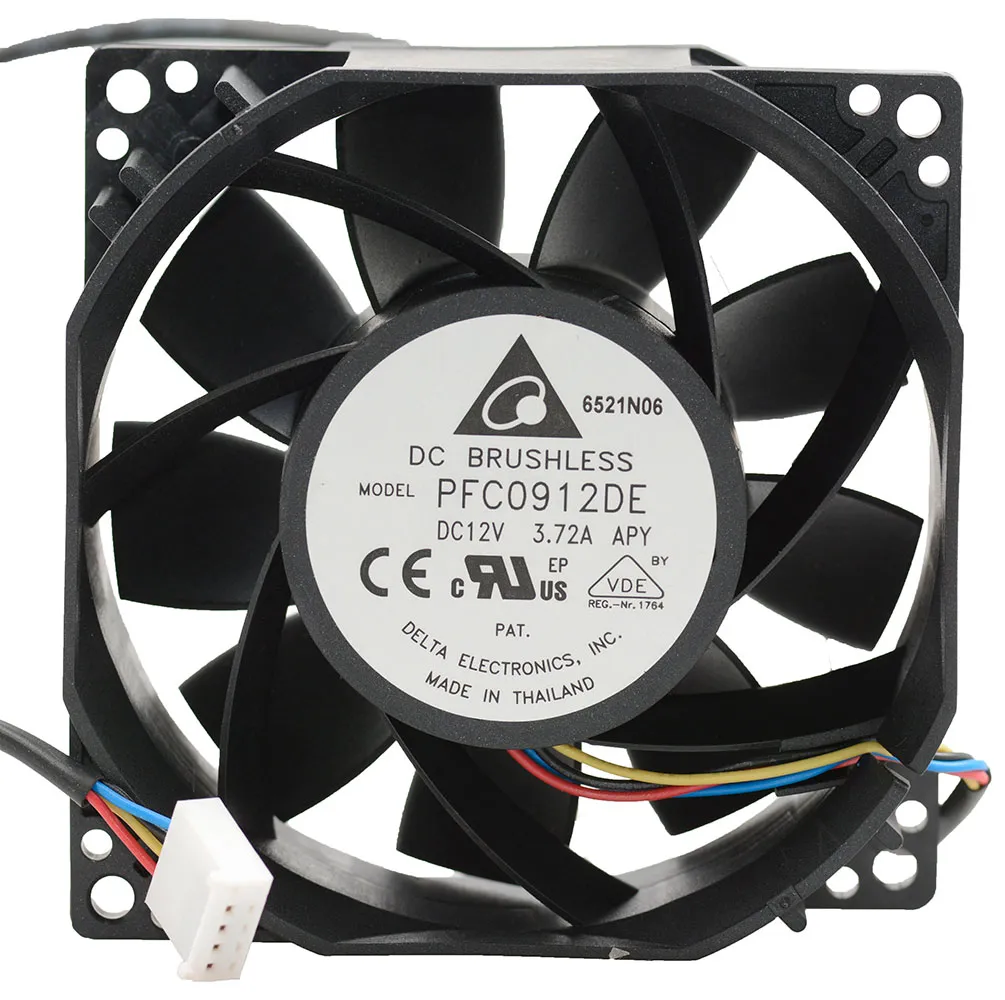

Tube Axial Fan 92x92x38mm 12V DC Brushless 175 CFM 4x 22" Wires

Specifications

  • Voltage - Rated: 12 VDC
  • Size: Square - 92 mm x 92 mm
  • Width: 38 mm
  • Air Flow: 175 CFM (4.957 m³/min)
  • Static Pressure: 1.819 in H2O
  • Bearing Type: Ball
  • Noise: 66.5 dB(A)
  • Current Rating (Amps): 3.4
  • Power (Watts): 40.8 W
  • RPM: 8000 RPM
  • Termination: (4) 22" wire leads, locked rotor
  • Approval Agency: UL, CUL, VDE, CE

Product Identification

Product Type:DC Fan
Manufacturer Series:ValuePro

Compliance

Agency Approvals: CE, CUL, VDE, UL

Dimensions & Appearance

Depth:38 mm
Height:92 mm
Width:92 mm

Features

Bearing:Ball
Voltage Rating:12 VDC
Noise (dBA):66.5
Termination:20" Wires (4), lock rotor
Air Flow (CFM):175
Power Rating:40.8 W
Current Rating:3400 mA
,
