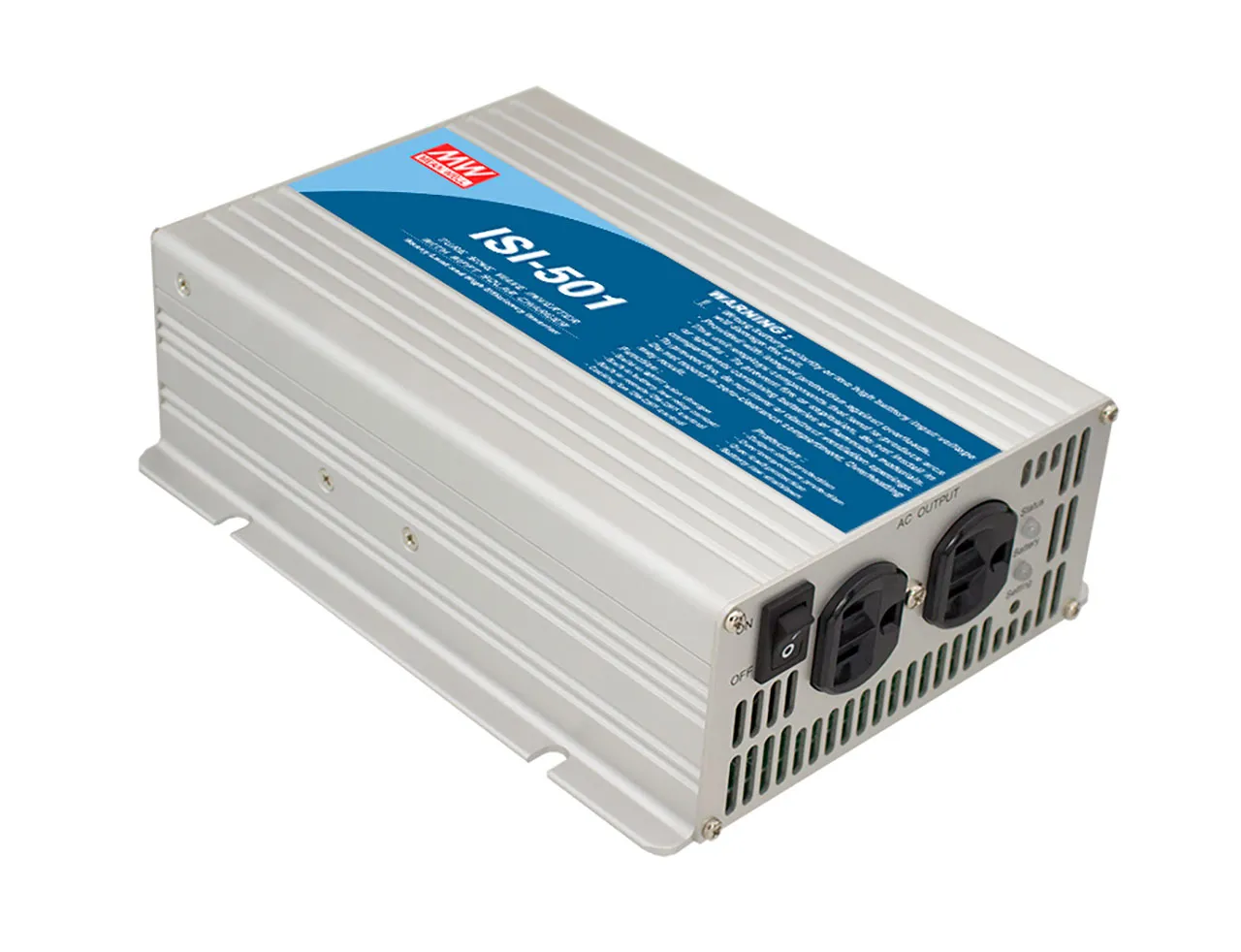

True Sine Wave DC-AC Inverter with MPPT Solar Charger 500W 110-120VAC 24Vin 30A 2xNEMA5-15R

Features

  • True sine wave output (THD <3%)
  • High surge power up to 1000W
  • High efficiency up to 88%
  • High frequency design
  • Thermostatically controlled cooling fan
  • Protections: battery low alarm, battery ;pw shutdown, over voltage, over temperature, output short, input polarity reverse, overload
  • Built-in 500W MPPT solar charger, MPPT efficiency: 98% (typ.)
  • Built-in remote ON-OFF control
  • Built-in battery low relay contact
  • LED indicator for operation status and battery capacity
  • 3-year warranty

Overview

ISI-501 series integrates a DC/AC True Sine Wave Inverter and a MPPT charger. This series is a high-performance true sine wave DC/AC inverter which converts the DC electricity from a system consisting of batteries and solar panels. ISI-501 is not only a high frequency designed inverter but also fully digitally controlled by an advanced microprocessor. With true sine wave output, the ISI-501 series can provide 500W continuously, 550W for 60 seconds, and 1000W for 30 AC-cycles. This series incorporates a MPPT solar charger including the constant current and constant voltage charging characteristics.

Product Identification

Product Type:True Sine Wave DC-AC Power Inverter with MPPT Solar Charger
Manufacturer Series:ISI-501

Compliance

Agency Approvals:CB, CE, FCC, EN, EAC, UKCA

Dimensions & Appearance

Color:Silver
Height:2.64 in.
Width:6.22 in.
Length:8.07 in.
Mounting:Chassis

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:40°C

Input

Input Frequency:50 Hz, 60 Hz
Input Voltage:24 VDC
Input Voltage Range:21 VDC to 30 VDC
Maximum Input Current:30 A

Output

Number of Outputs:2
Output Connector Type:NEMA 5-15R x2
Output Voltage:100 VAC, 110 VAC, 115 VAC, 120 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:87%
Power Rating:500 W
,
