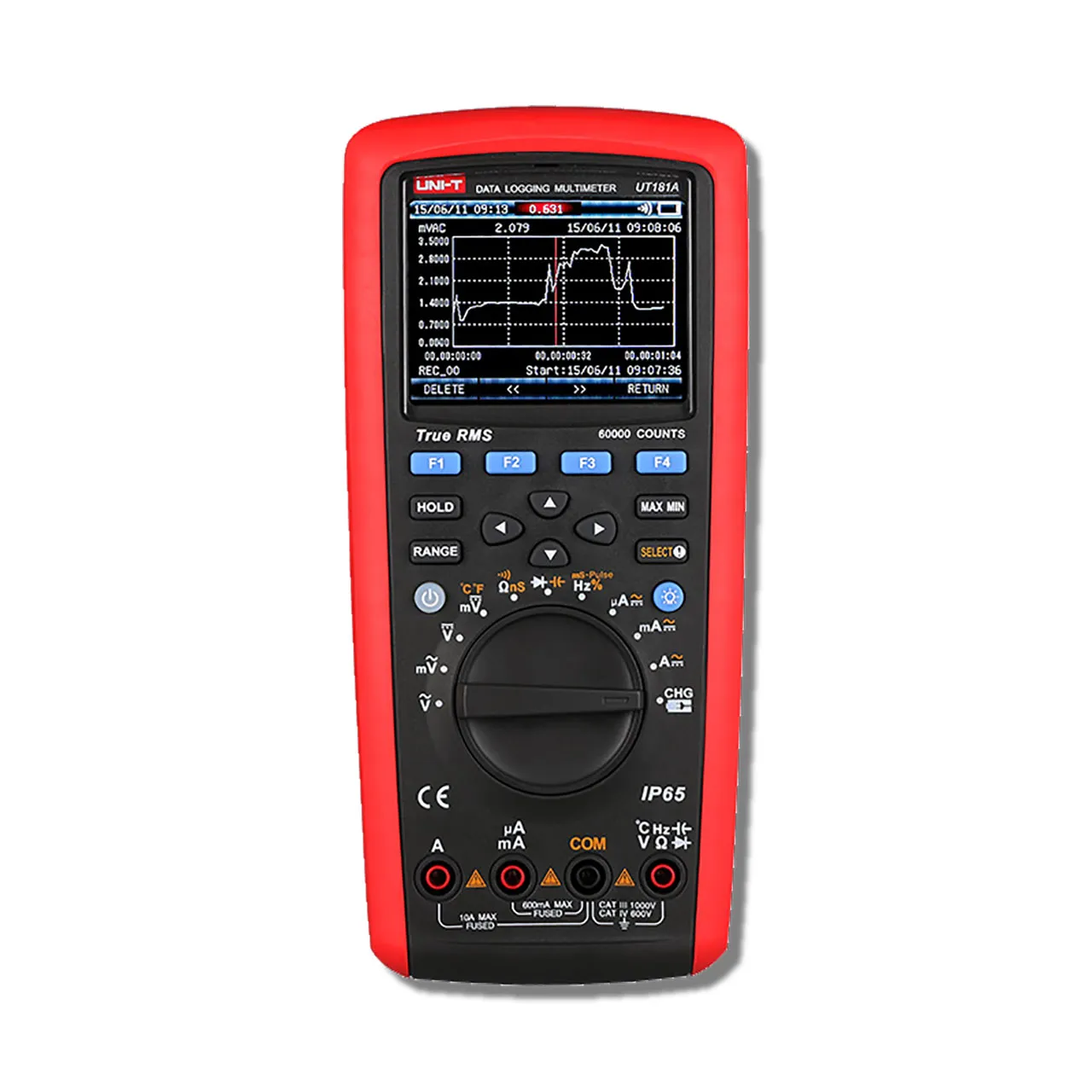

TRMS Datalogging Digital Multimeter

Features

  • True RMS, 60,000 Count, Trend Capture, 20,000pts Datalogging, Graphing Display, Resistance, Capacitance, Frequency, Temperature, LoZ, Bluetooth, USB, IP65
  • Warranty: 1 year
  • Prop65: No
  • Reach: No

Overview

CAT III 1000V True RMS Datalogging multimeter with trend capture and graph for long term monitoring.

Technical Specifications

  • Count: 60,000
  • Trms: Yes
  • Max V DC: 1000V
  • Max A DC: 10A
  • Max V AC: 1000V
  • Max A AC: 10A

Product Identification

Additional Feature:3.5" TFT LCD, Data Logging Function
Product Type:Datalogging Digital Multimeter
Manufacturer Series:UT100

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Style:Handheld

Features

AC Current Range (A):0 to 10
Autorange:Yes
True RMS:Yes
DC Current Range (A):0 to 10
Capacitance Range:0 to 60 mF
Display Digits:4.5
Voltage Range (VDC):0 to 1000
Resistance Range (Ohms):0 to 60M
Voltage Range (VAC):0 to 1000
PC Interface:USB, Bluetooth
Measurement Temperature Range (Deg F):-40 to 1832
Display Count:60000
Measurement Temperature Range (Deg C):-40 to 1000
Frequency Range:10 Hz to 60 MHz
Function:Voltage, Current, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Continuity, Diode
,
