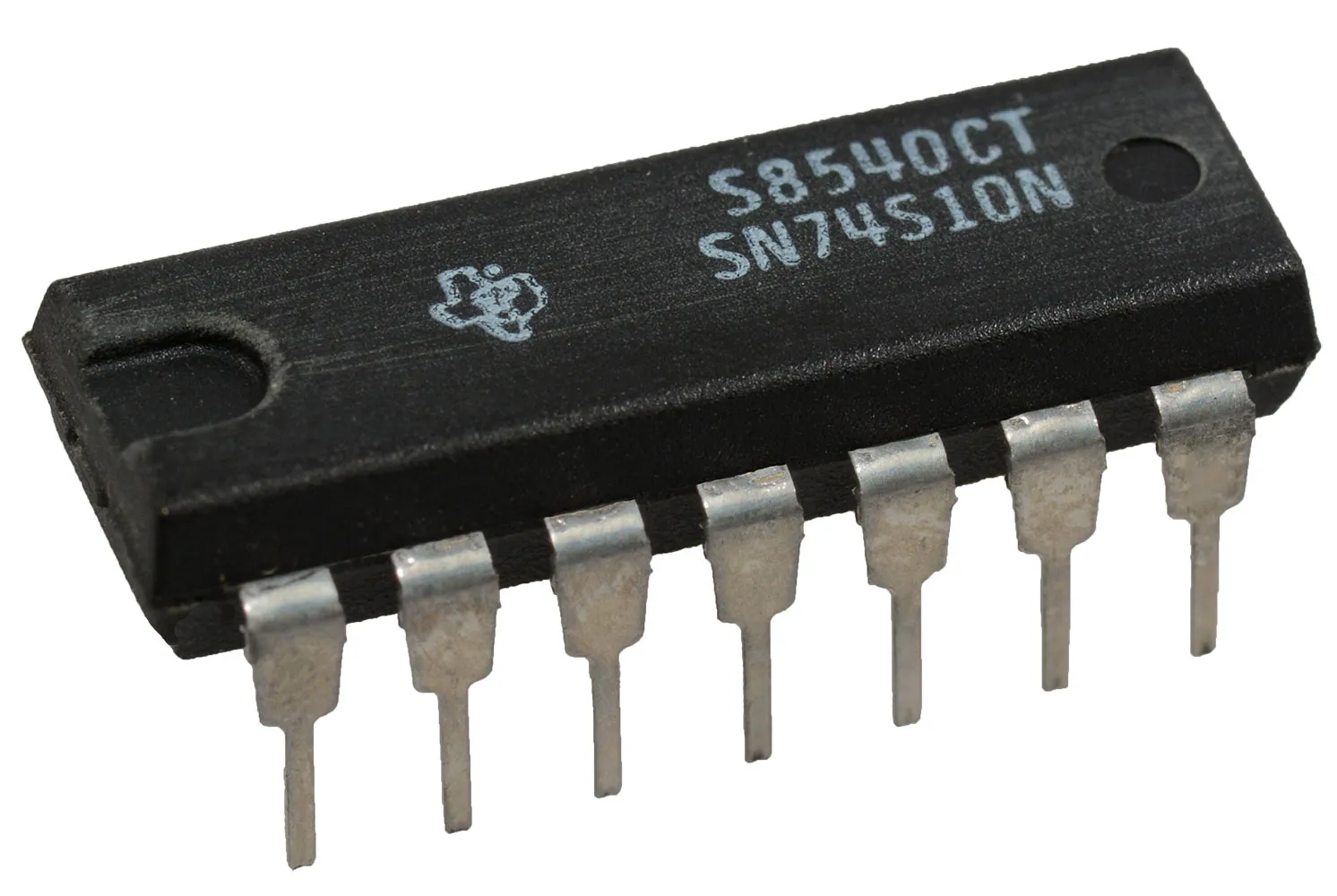

Triple 3-Input Positive-NAND Gates DIP-14

Specifications

• Series: 74S
• Logic Type: NAND Gate
• Number of Circuits: 3
• Number of Inputs: 3
• Voltage - Supply: 4.75 V to 5.25 V
• Current - Output High, Low: 1 mA, 20 mA
• Logic Level - Low: 0.8 V
• Logic Level - High: 2 V
• Max Propagation Delay @ V, Max CL: 5 ns @ 5 V, 50 pF
• Operating Temperature: 0°C to 70°C
• Mounting Type: Through Hole
• Package: 14-DIP (0.300", 7.62mm)
• Base Number: 74S10
