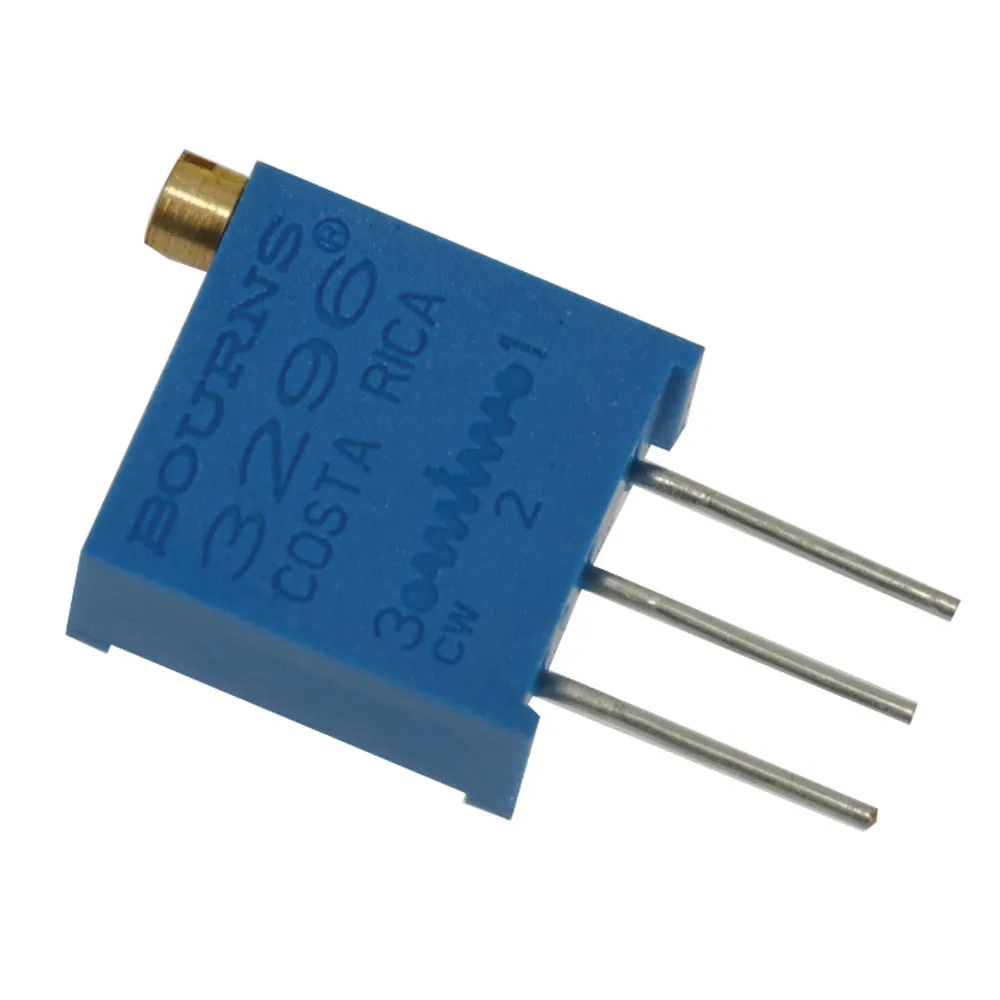

Resistor Trimmer 100 Ohm 10% 1/2 Watt 25 Turn 2.19mm Pin Through Hole

Features

  • Resistance: 100 Ohm
  • Tolerance: 10%
  • Power: 1/2 Watt
  • 25 Turn

    • Product Identification

    Family:W
    Product Type:Trimmer
    Manufacturer Series:3296

    Dimensions & Appearance

    Mounting:Through Hole
    Height:11.55 mm
    Width:4.83 mm
    Length:9.53 mm
    Shaft Diameter:2.19 mm

    Operating conditions

    Maximum Operating Temperature:150°C
    Minimum Operating Temperature:-55°C

    Features

    Taper:Linear
    Resistive Element Material:Cermet
    Actuator Orientation:Top
    Number of Turns:25
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Resistance (Ohm):100
    Technology:Sealed
    Power Rating:0.50 W
    Termination Style:Pins
    Resistance:100 Ohm
    Actuator Type:Top Slot
    ,
