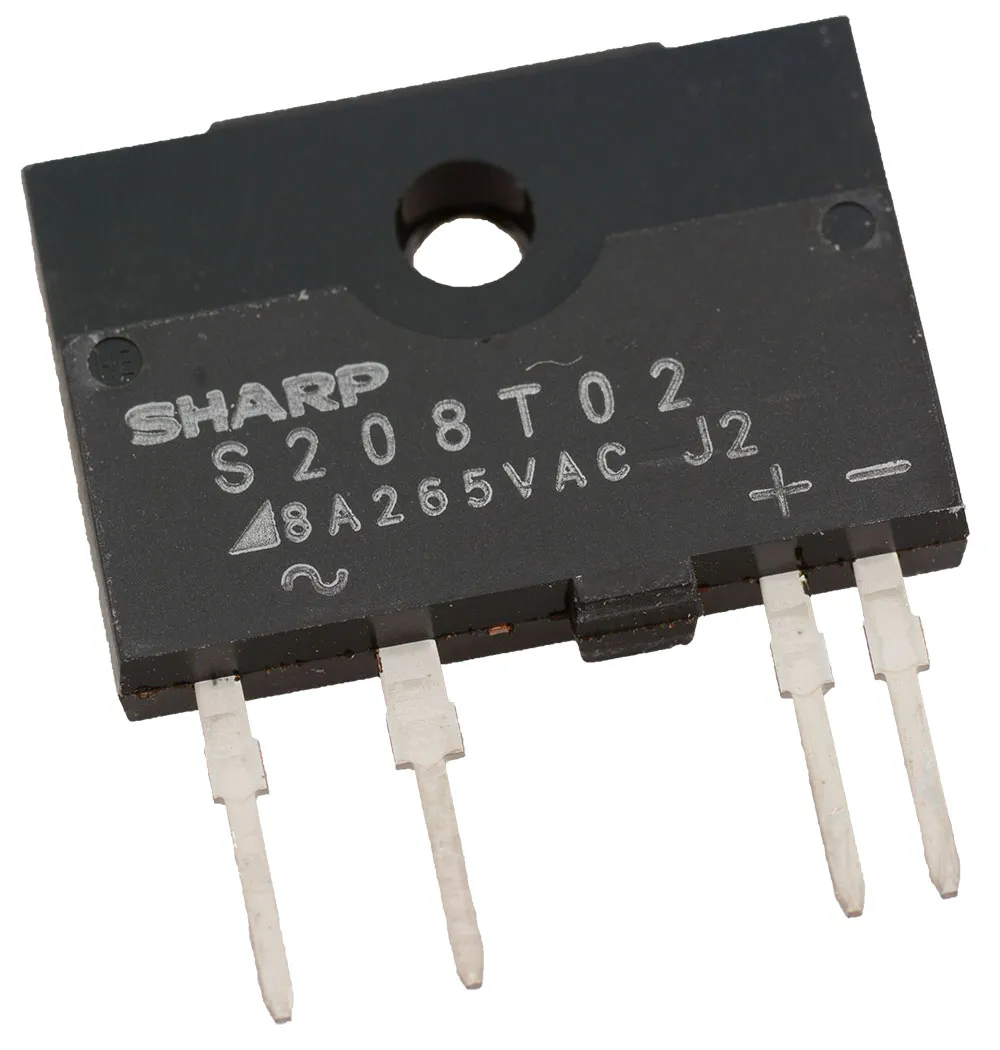

Triac Output Solid State Relay (SSR) SPST-NO (1 Form A) 1.2V 8A SIP-4

Specifications

  • Series: S208
  • Mounting Type: Through Hole
  • Circuit: SPST-NO (1 Form A)
  • Output Type: AC, Zero Cross
  • Voltage - Input: 1.2 VDC (1v2)
  • Voltage - Load: 80 V to 240 V
  • Load Current: 8 A
  • Termination Style: PC Pin
  • Package: 4-SIP

Applications

  • Isolated interface between high voltage AC devices and lower voltage DC control circuitry
  • Switching motors, fans, heaters, solenoids, and valves
  • Power control in applications such as lighting and temperature control equipment

Product Identification

Product Type:AC Solid State Relay

Dimensions & Appearance

Width:4 mm
Length:23 mm

Features

Contact Current:0.05 A
Control Voltage:1.2 VDC
Pins:4
Terminal Type:SIP-4
Contact Voltage:80 VAC to 240 VAC
Contact Form:SPST-NO
,
