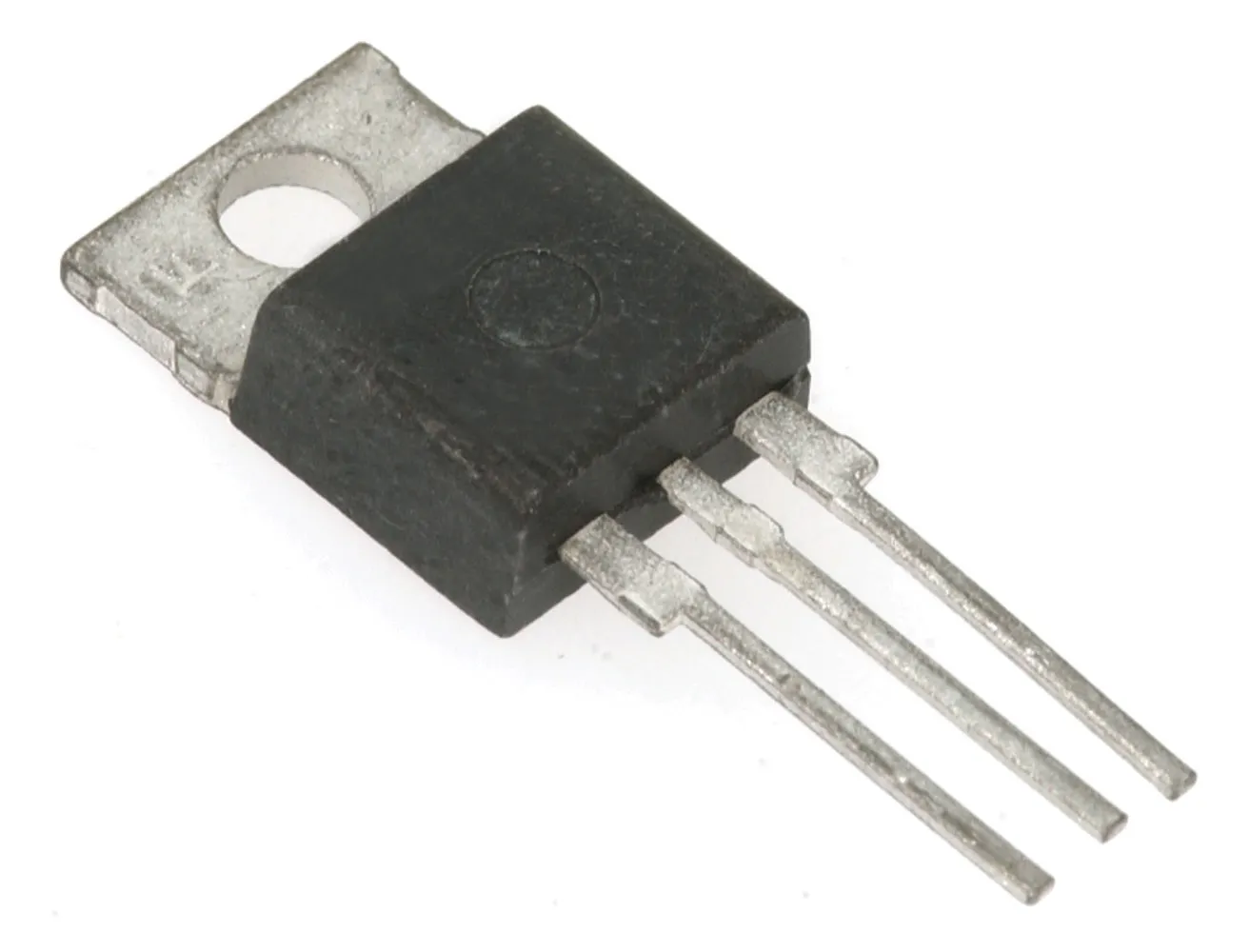

TRANSISTOR,TIP31C,NPN SIL,100Vceo,10hfe 3A,TO-220
For more about Transistors, click here.
Product Identification
Product Type:Bipolar Power
Manufacturer Series:TIP31C
Dimensions & Appearance
Mounting:Through Hole
Length:10.67 mm
Width:4.83 mm
Height:9.40 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-65°C
Packaging
Packaging:Bulk
Package:TO-220-3
Output
Output Power:2000mW
Features
Number of Elements per Chip:1
Minimum DC Current Gain:10 @ 3A
Pins:3
Transistor Polarity:NPN
Maximum Operating Frequency:3MHz
Maximum Emitter Base Voltage:5V
Maximum Collector Base Voltage:100 V
Maximum Collector Emitter Voltage:100 V
Maximum Collector Current:3A
Maximum Base Emitter Saturation Voltage:1.8V@3A@4V
Maximum Collector Emitter Saturation Voltage:1.2V@375mA@3A
Configuration:Single
Power Dissipation:2000mW
