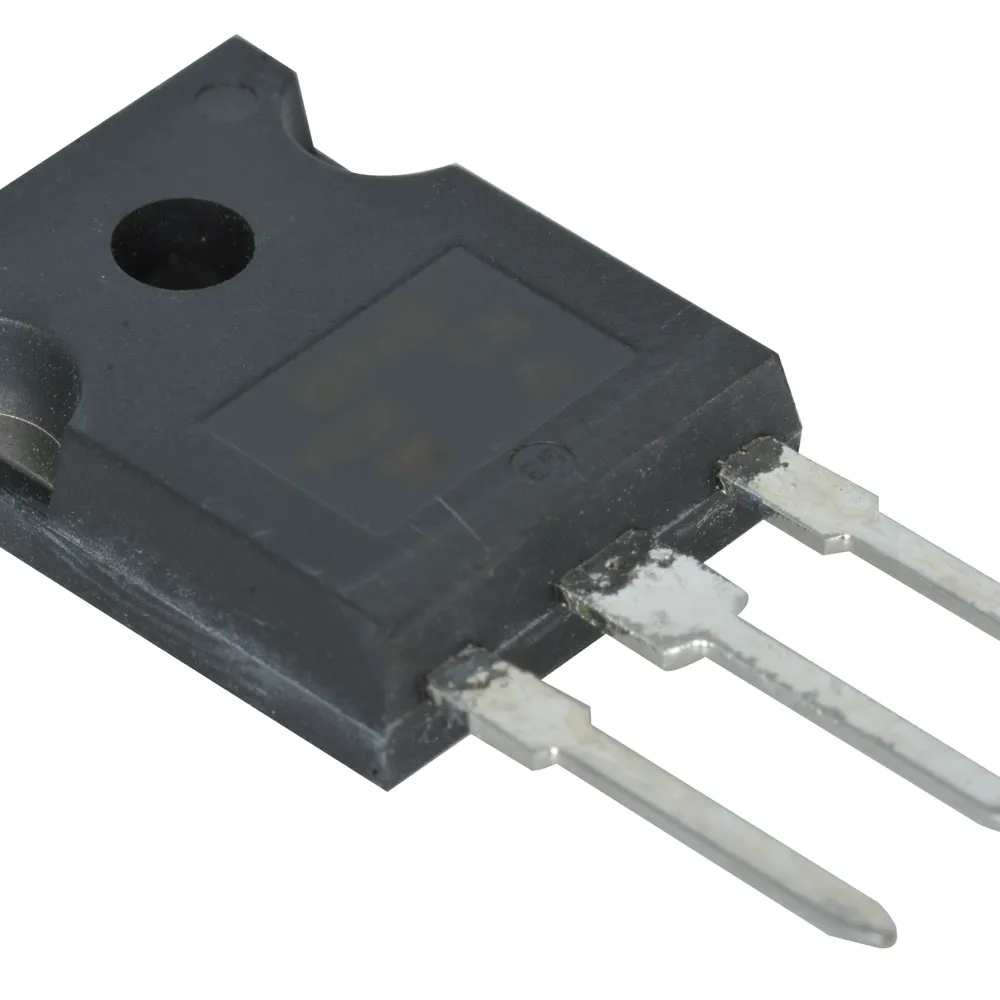

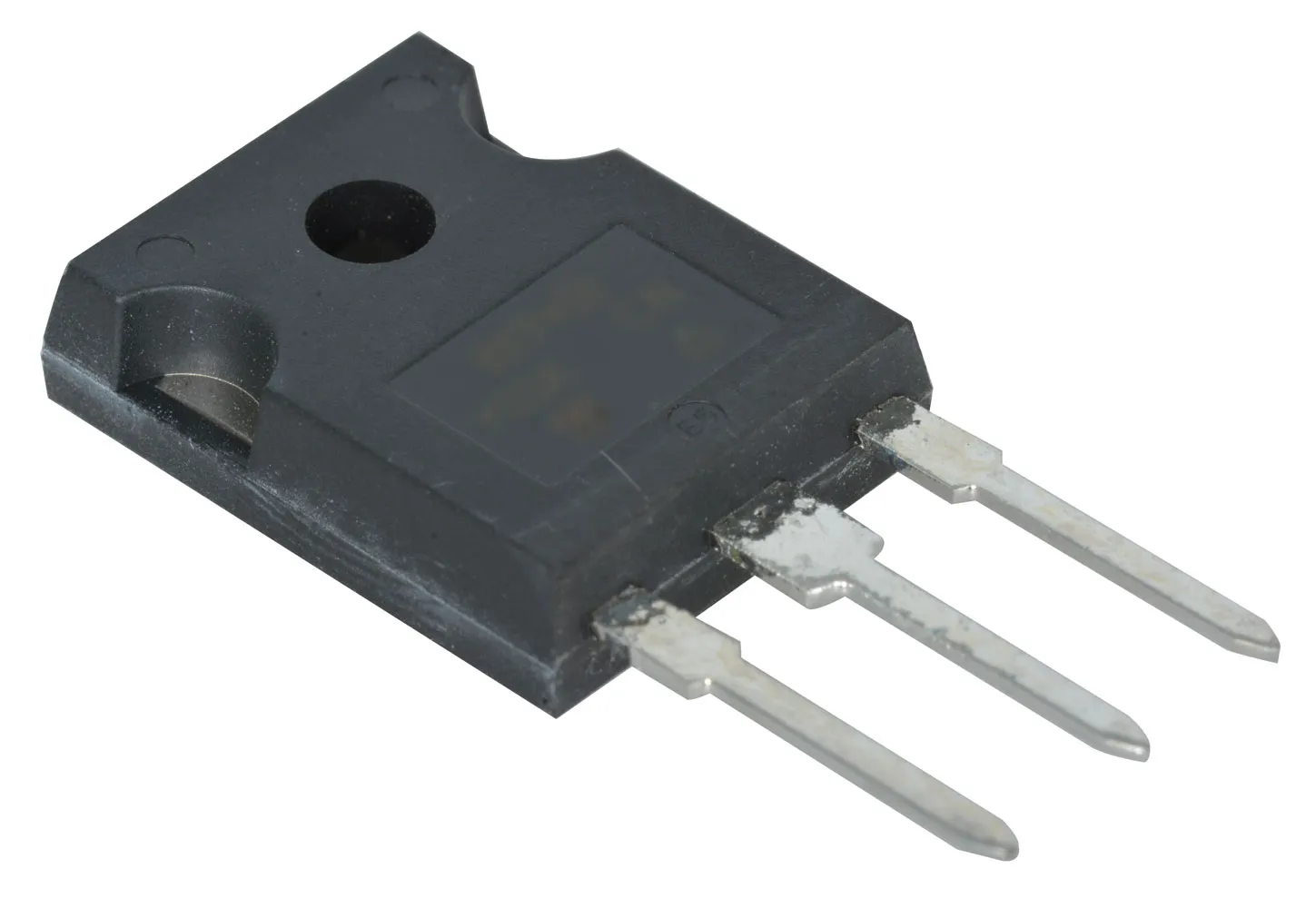

TRANSISTOR, IRFP460, N CHANNEL POWER MOSFET, 500V, 20A, TO-247AC
For more about Transistors, click here.
Product Identification
Family:IRFP
Product Type:MOSFET
Dimensions & Appearance
Mounting:Through Hole
Width:15.75 mm
Height:5.15 mm
Length:20.15 mm
Operating conditions
Maximum Operating Temperature:175°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-247-3
Input
Typical Input Capacitance @ Vds:4100pf@25V
Output
Output Power:250W
Features
Number of Elements per Chip:1
Channel Type:N
Transistor Polarity:N
Pins:3
Maximum Gate Source Voltage:±20V
Channel Mode:N-Channel Enhancement
Category:Power MOSFET
Typical Gate Charge @ Vgs:18nC@10V
Maximum Reverse Current:25uA
Maximum Drain Source Voltage:500 V
Maximum Drain Source Resistance:0.24 Ohms@10V
Maximum Continuous Drain Current:20 A
Typical Turn-On Delay Time:23ns
Peak Non-Repetitive Surge Current:80A
Repetitive Peak Reverse Voltage:500VDC
Typical Turn-Off Delay Time:85ns
Maximum Forward Current:20A
Peak Reverse Recovery Time:580ns
Typical Fall Time:65ns
Typical Rise Time:81ns
Maximum Forward Voltage:500VDC
Power Dissipation:250 W
Configuration:Single
