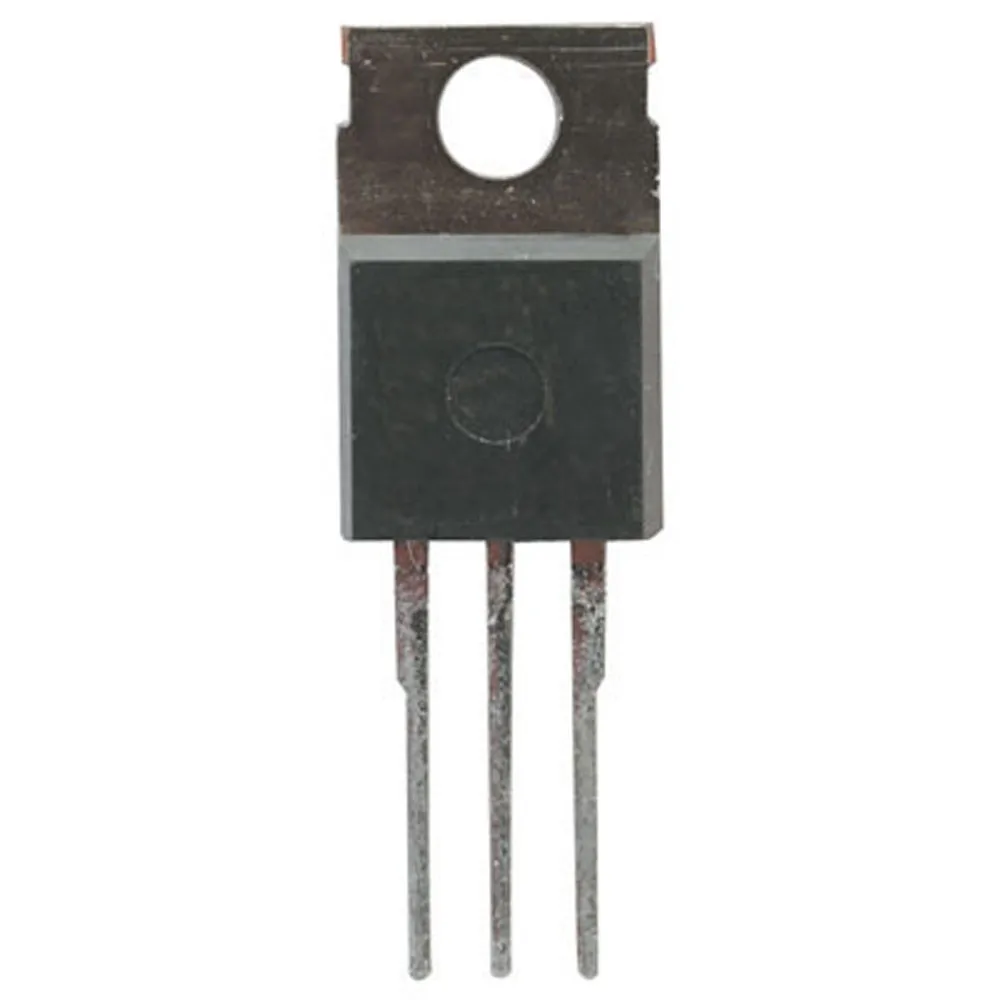

TRANSISTOR, IRF9530, P CHANNEL POWER MOSFET, 100V, 12A, TO-220AB
For more about Transistors, click here.
Product Identification
Family:IRF
Product Type:MOSFET
Dimensions & Appearance
Mounting:Through Hole
Length:10.28 mm
Width:4.57 mm
Height:9.02 mm
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-220-3
Input
Typical Input Capacitance @ Vds:500pf@-25V
Output
Output Power:75W
Features
Number of Elements per Chip:1
Channel Type:P
Pins:3
Maximum Gate Source Voltage:±20V
Category:Power MOSFET
Channel Mode:P-Channel Enhancement
Typical Gate Charge @ Vgs:13nC@-10V
Transistor Polarity:P
Maximum Drain Source Voltage:-100 V
Maximum Reverse Current:-25uA
Maximum Continuous Drain Current:-12 A
Peak Non-Repetitive Surge Current:-48A
Repetitive Peak Reverse Voltage:-100VDC
Maximum Drain Source Resistance:0.25 Ohms@-10V
Typical Turn-On Delay Time:30ns
Maximum Forward Current:-12A
Typical Turn-Off Delay Time:70ns
Peak Reverse Recovery Time:300ns
Power Dissipation:75 W
Typical Rise Time:70ns
Typical Fall Time:70ns
Maximum Forward Voltage:-100VDC
Configuration:Single
