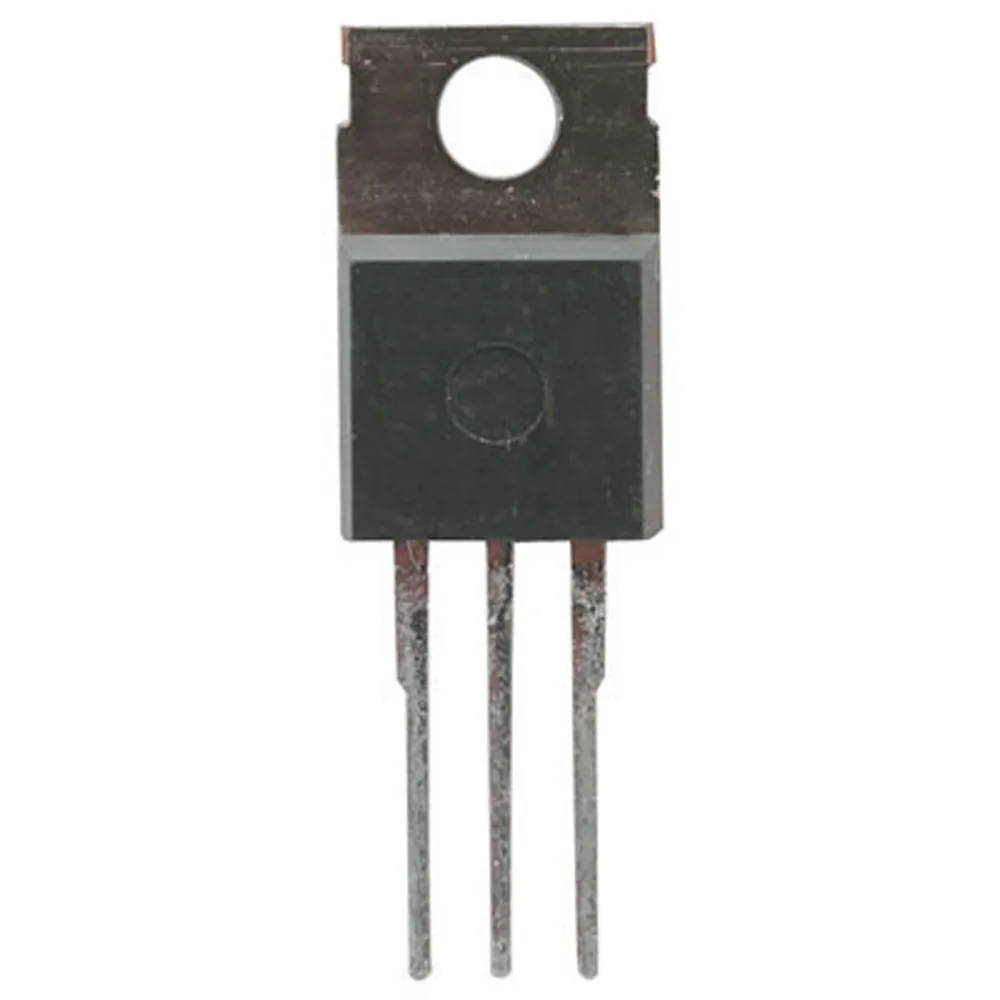

TRANSISTOR, IRF9520, P CHANNEL POWER MOSFET, 100V, 6A, TO-220AB
For more about Transistors, click here.
Product Identification
Family:IRF9520
Product Type:MOSFET
Dimensions & Appearance
Mounting:Through Hole
Length:10.54 mm
Width:4.7 mm
Height:8.76 mm
Operating conditions
Maximum Operating Temperature:175°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-220-3
Input
Typical Input Capacitance @ Vds:390pF@25V
Output
Output Power:40W
Features
Number of Elements per Chip:1
Channel Type:P
Pins:3
Maximum Gate Source Voltage:±20V
Category:Power MOSFET
Channel Mode:P-Channel Enhancement
Transistor Polarity:P
Maximum Continuous Drain Current:-6 A
Typical Gate Charge @ Vgs:18nC @10V
Typical Turn-On Delay Time:9.6ns
Maximum Drain Source Voltage:-100
Peak Non-Repetitive Surge Current:-24A
Typical Turn-Off Delay Time:21ns
Maximum Reverse Current:-25uA
Maximum Forward Current:-6A
Typical Rise Time:29ns
Repetitive Peak Reverse Voltage:-100VDC
Peak Reverse Recovery Time:100ns
Typical Fall Time:25ns
Maximum Drain Source Resistance:0.6 Ohms@10V
Power Dissipation:60 W
Maximum Forward Voltage:-100VDC
Configuration:Single
