Transistor IRF840 N Channel 500 Volt 8 Amps

Jameco Part #:

Manufacturer #:

Product Price:

$1.390

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$1.390	-	-
10+	$1.150	0.24	17.27%
100+	$0.990	0.40	28.78%
500+	$0.850	0.54	38.85%

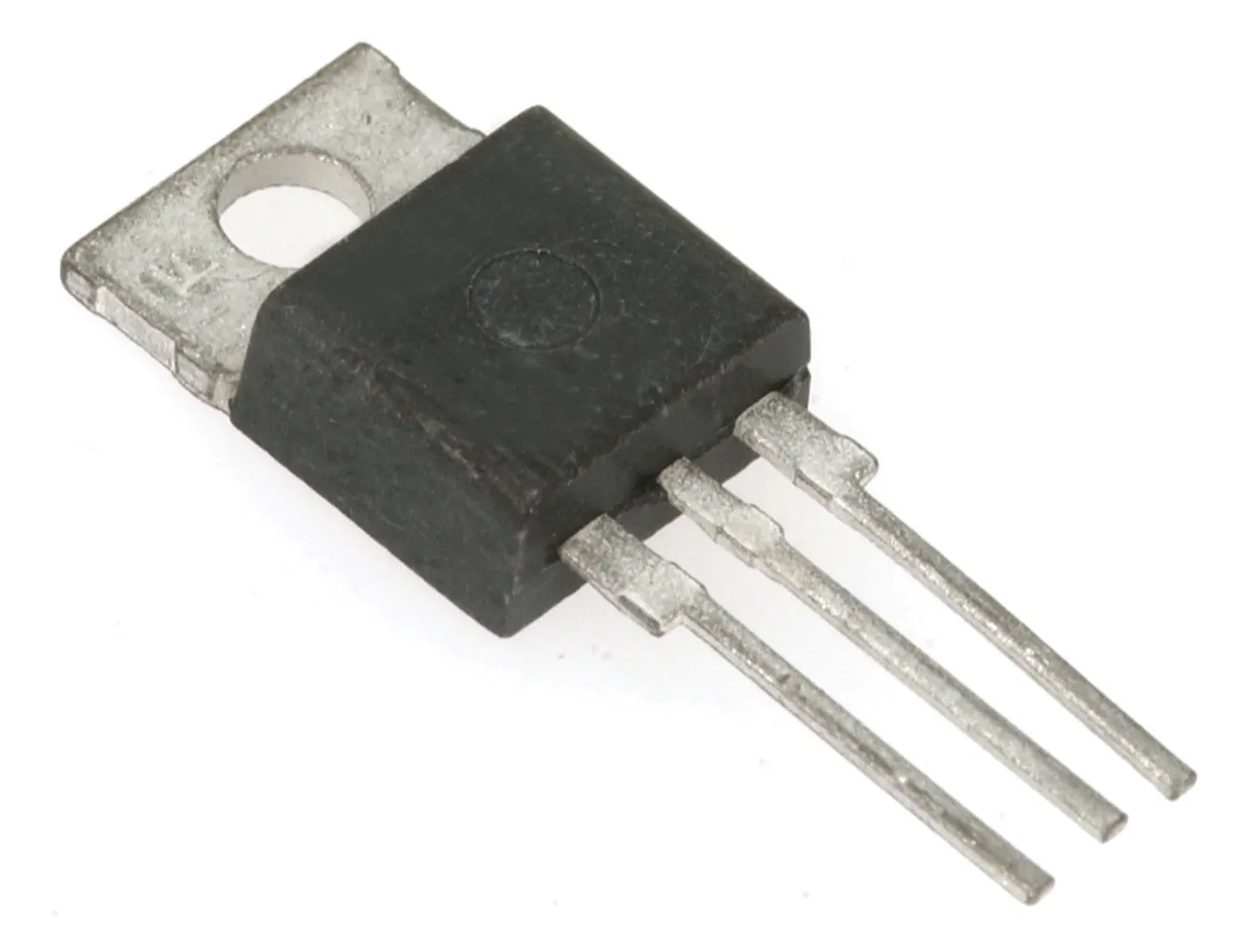

TRANSISTOR, IRF840, N CHANNEL POWER MOSFET, 500V, 8A, TO-220

For more about Transistors, click here.

Product Identification

Product Type:MOSFET

Family:IRF8

Dimensions & Appearance

Length:10.54 mm

Width:4.7 mm

Height:8.76 mm

Mounting:Through Hole

Operating conditions

Maximum Operating Temperature:150°C

Minimum Operating Temperature:-55°C

Packaging

Packaging:Bulk

Package:TO-220-3

Input

Typical Input Capacitance @ Vds:1400pF@25V

Output

Output Power:44W

Features

Number of Elements per Chip:1

Channel Type:N

Transistor Polarity:N

Pins:3

Maximum Gate Source Voltage:±20V

Channel Mode:N-Channel Enhancement

Category:Power MOSFET

Maximum Reverse Current:10uA

Maximum Continuous Drain Current:8 A

Peak Non-Repetitive Surge Current:32A

Maximum Forward Current:8A

Maximum Drain Source Voltage:500 V

Typical Turn-On Delay Time:22ns

Typical Gate Charge @ Vgs:41nC@10V

Peak Reverse Recovery Time:125ns

Power Dissipation:44 W

Repetitive Peak Reverse Voltage:500VDC

Maximum Drain Source Resistance:0.8 Ohms@10V

Typical Turn-Off Delay Time:125ns

Typical Rise Time:65ns

Typical Fall Time:75ns

Maximum Forward Voltage:500VDC

Configuration:Single
