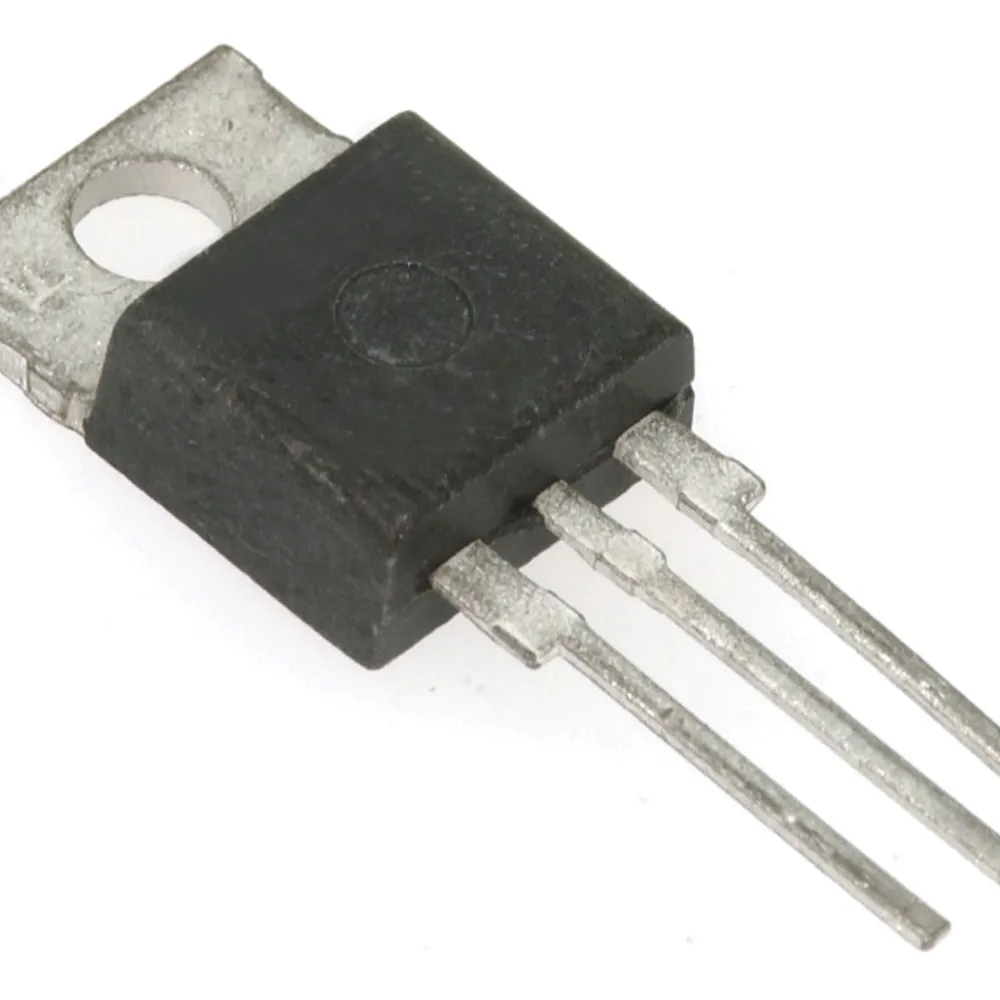

CS 3205 Transistors

Improve switching performance and enhance the avalanche energy with Jameco's selection of CS 3205 transistors. These transistors can be used in various power switching applications and feature higher efficiency.
  • IRF3205
  • N Channel PowerMOSFET
  • 55V, 110A
  • TO-220


For more about Transistors, click here.

Product Identification

Family:IRF3205
Product Type:MOSFET

Dimensions & Appearance

Mounting:Through Hole
Length:10.54 mm
Width:4.69 mm
Height:8.77 mm

Operating conditions

Maximum Operating Temperature:175°C
Minimum Operating Temperature:-55°C

Packaging

Packaging:Bulk
Package:TO-220-3

Input

Typical Input Capacitance @ Vds:3247pF@25V

Output

Output Power:200W

Features

Number of Elements per Chip:1
Channel Type:N
Transistor Polarity:N
Pins:3
Maximum Gate Source Voltage:±20V
Channel Mode:N-Channel Enhancement
Category:Power MOSFET
Maximum Drain Source Resistance:0.008 Ohms@10V
Maximum Drain Source Voltage:55 V
Repetitive Peak Reverse Voltage:55VDC
Maximum Reverse Current:25uA
Typical Turn-On Delay Time:14ns
Typical Turn-Off Delay Time:50ns
Peak Reverse Recovery Time:101ns
Typical Gate Charge @ Vgs:146nC @10V
Maximum Continuous Drain Current:110 A
Typical Fall Time:65ns
Peak Non-Repetitive Surge Current:390A
Typical Rise Time:101ns
Maximum Forward Current:110A
Maximum Forward Voltage:55VDC
Power Dissipation:200 W
Configuration:Single
,
