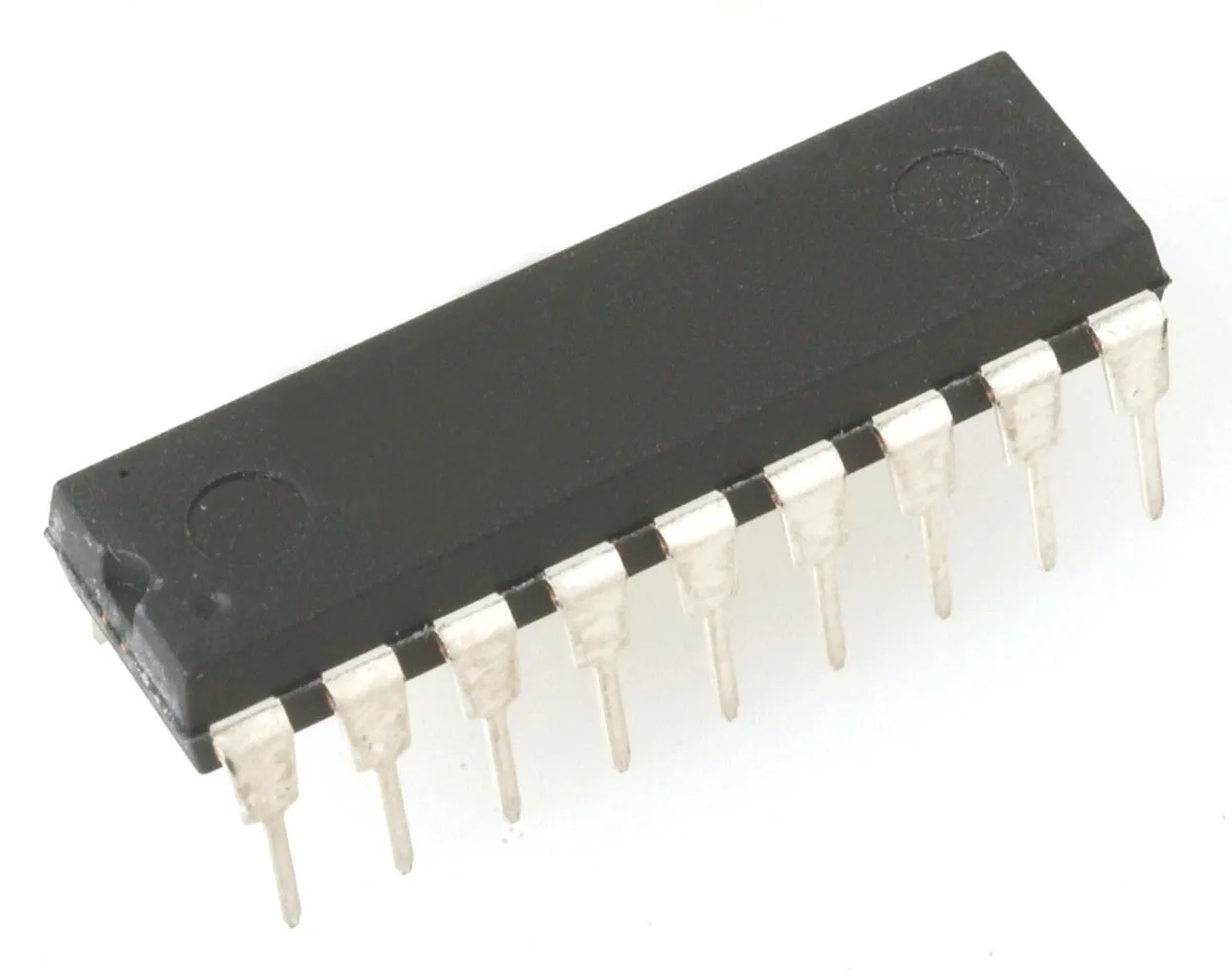

ULN2803A IC

  • Linear Series
  • Hi-voltage hi-current darlington transistor array
  • Dual In-line Package
  • 18-pins

    For more about Transistors, click here.

    • Product Identification

    Family:ULN
    Product Type:NPN Darlington Array

    Dimensions & Appearance

    Mounting:Through Hole
    Height:3.93 mm
    Length:23.24 mm (Max)
    Width:8.5 mm

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:85°C

    Packaging

    Packaging:Bulk
    Package:PDIP-18

    Features

    Transistor Polarity:NPN
    Maximum Collector Cut-off Current:50uA
    Number of Elements per Chip:16
    Maximum Collector Base Voltage:50 V
    Maximum Collector Emitter Voltage:50 V
    Configuration:Array 8
    Pins:18
    Maximum Emitter Base Voltage:N/A
    Maximum Collector Current:500mA
    Maximum Collector Emitter Saturation Voltage:1.6V@500uA@350mA
    Minimum DC Current Gain:1000 @ 500mA
    ,
