Complementary Silicon Power Darlington Transistor

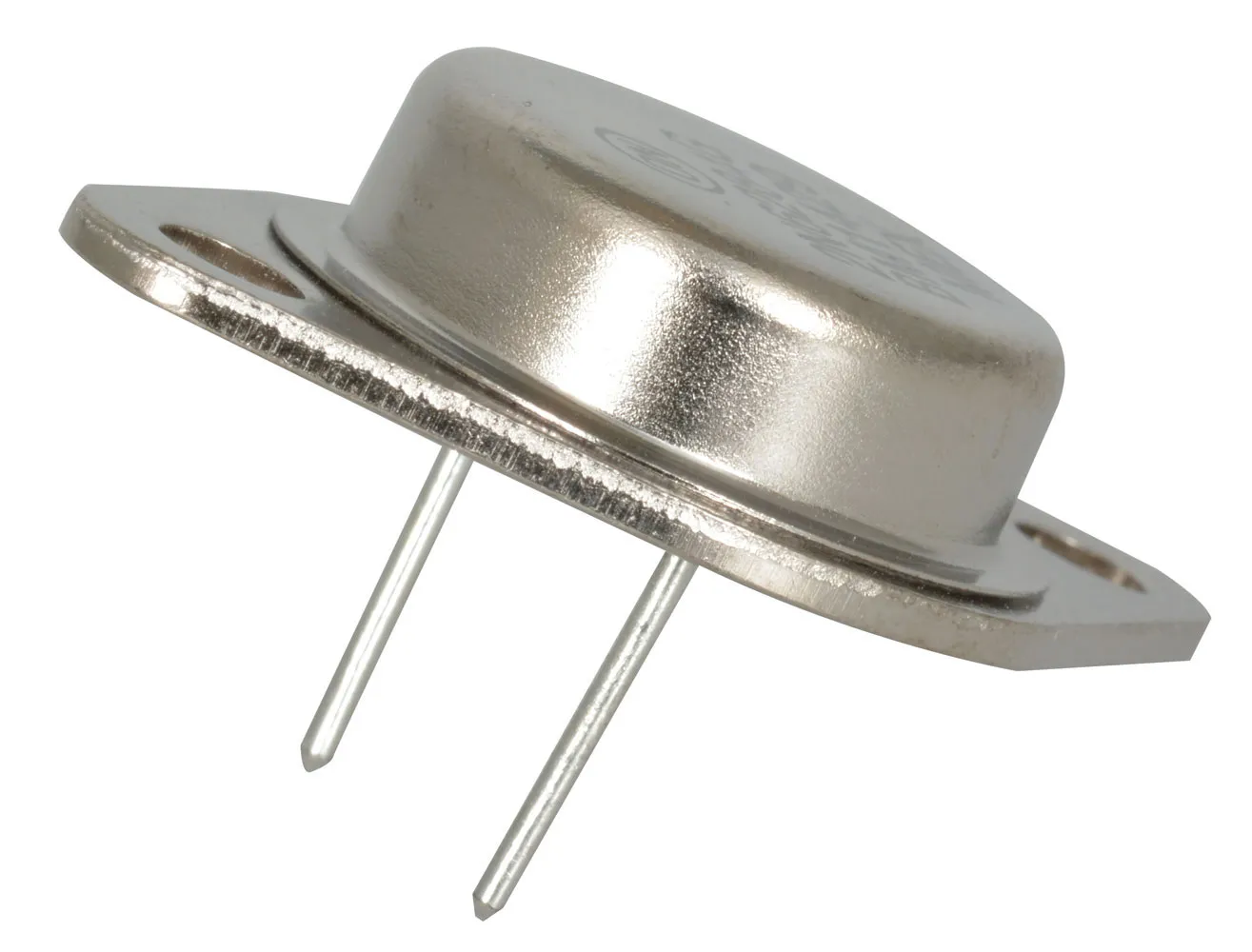

The 2N6284 is a silicon epitaxial-base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-3 metal case. It is intended for general purpose amplifier and low frequency switching applications. The complementary PNP types is 2N6287.For more about Transistors, click here.
Product Identification
Product Type:Darlington BJT
Family:2N
Dimensions & Appearance
Width:26.2 mm
Height:8.7 mm
Length:39.5 mm
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:200°C
Minimum Operating Temperature:-65°C
Packaging
Packaging:Bulk
Package:TO-3
Features
Number of Elements per Chip:1
Maximum Collector Cut-off Current:1mA
Pins:3
Transistor Polarity:NPN
Maximum Emitter Base Voltage:5V
Maximum Collector Base Voltage:100 V
Maximum Collector Emitter Voltage:100 V
Maximum Collector Current:20A
Minimum DC Current Gain:100 @ 20A
Maximum Base Emitter Saturation Voltage:4V@200mA@20A
Configuration:Single
Maximum Collector Emitter Saturation Voltage:2V@40mA@10A, 3V@200mA@20A
