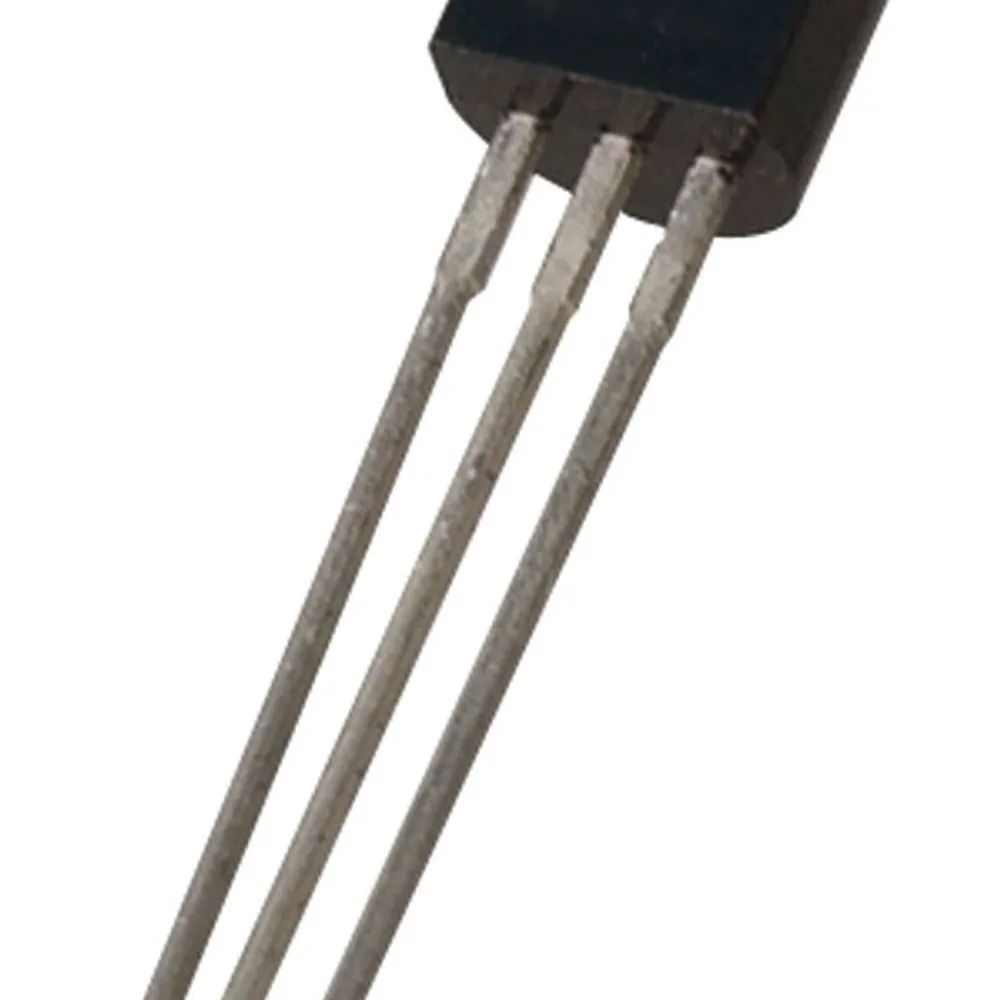

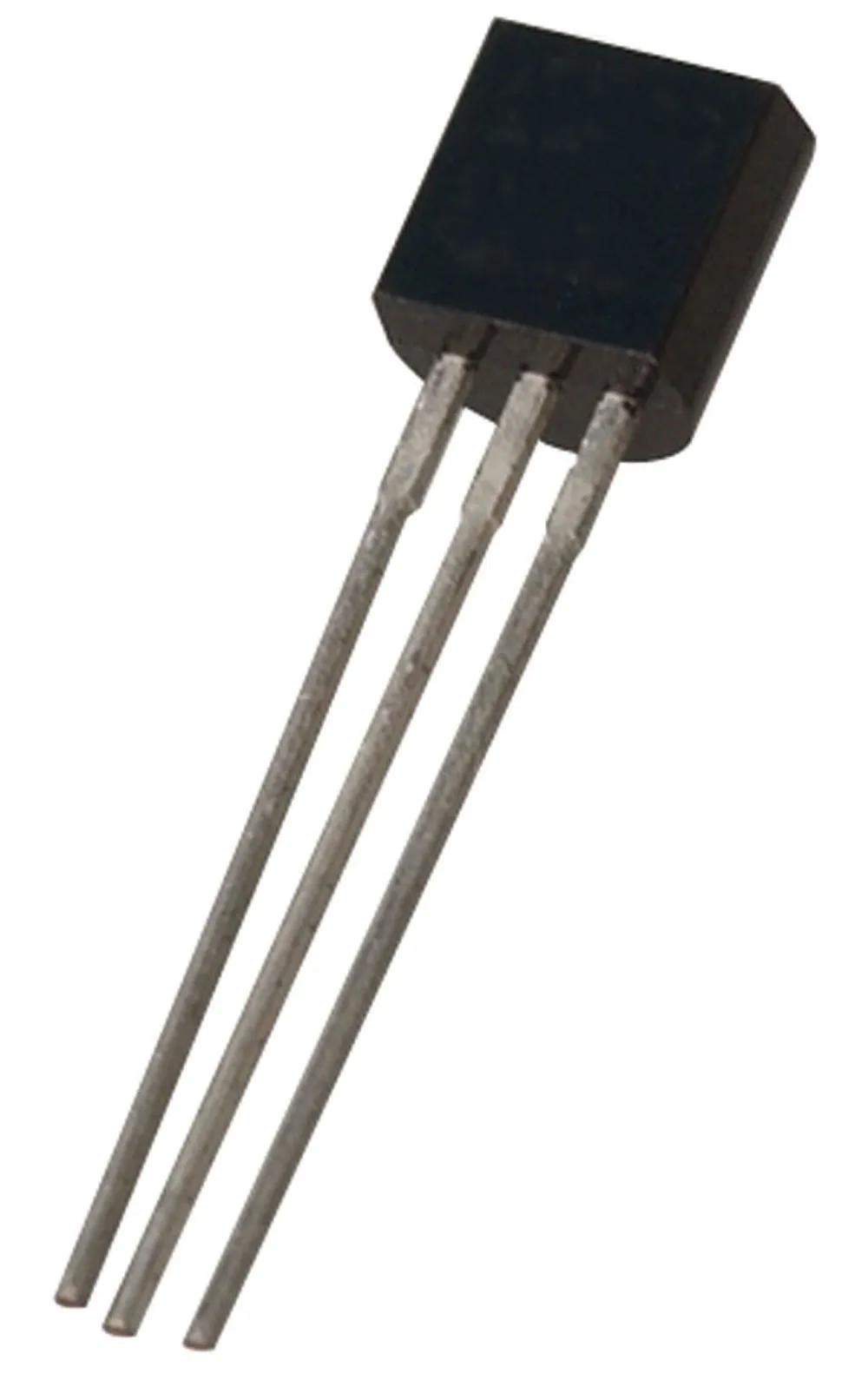

Transistor RF MOSFET N-Channel JFET 30V 1kHz 13mA TO-92-3
Specifications
- Transistor Type: N-Channel JFET
- Frequency: 1 kHz
- Voltage - Test: 15 V
- Current Rating (Amps): 13 mA
- Noise Figure: 2 dB
- Voltage - Rated: 30 V
- Device Package: TO-92-3
Dimensions & Appearance
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-55°C
Packaging
Packaging:Bulk
Package:TO-92-3
Features
Transistor Polarity:N
Maximum Drain Gate Voltage:30 V
Zero-Gate Voltage Drain Current:7 mA
Maximum Gate Source Voltage:-30 V
