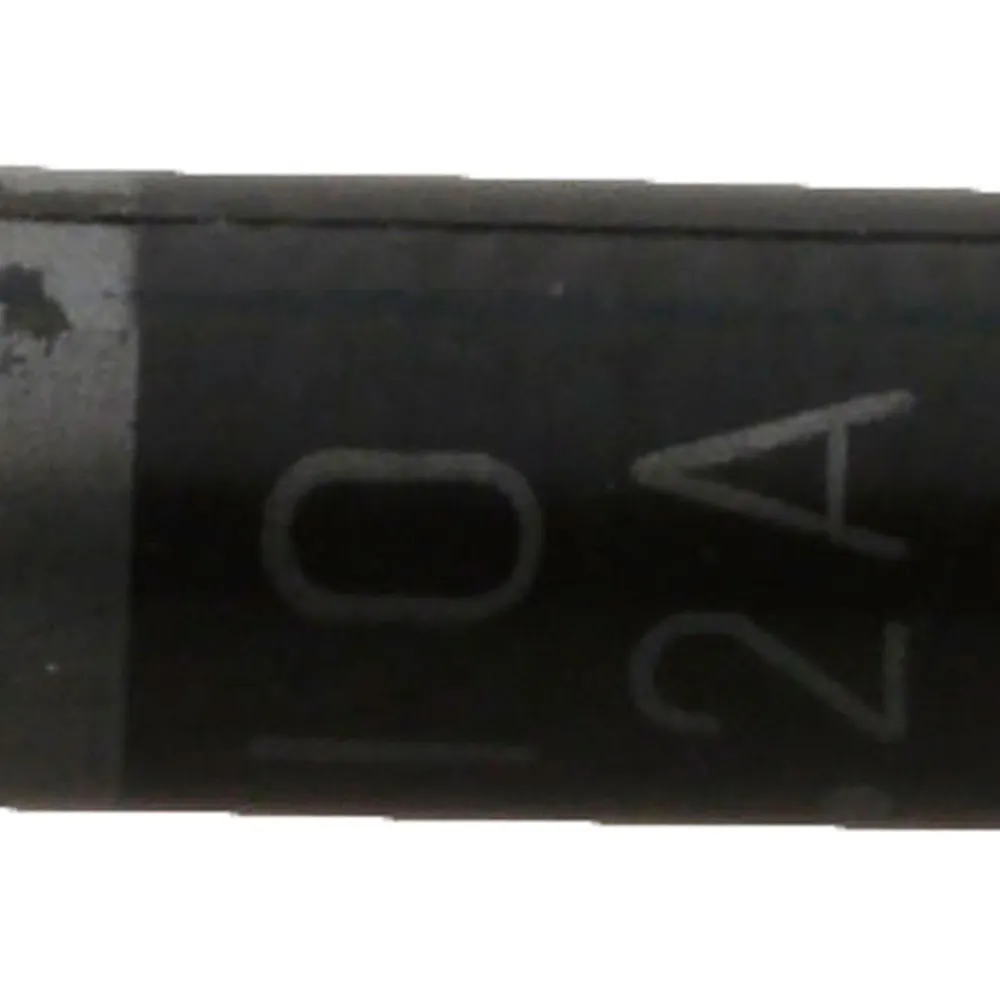

Transient Voltage Supressor (TVS) Diode 12.1V Clamp 50A Ipp DO-15

Specifications

  • Type: Zener
  • Unidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 7.02 V
  • Voltage - Breakdown (Min): 7.79 V
  • Voltage - Clamping (Max) @ Ipp: 12.1 V
  • Current - Peak Pulse (10/1000µs): 50 A
  • Power - Peak Pulse: 600 W
  • Power Line Protection: No
  • Applications: General Purpose
  • Mounting Type: Through Hole
  • Package: DO-204AC, DO-15, Axial
  • Base Number: P6KE8V2

Packaging

Package:DO-15

Features

Maximum Breakover Voltage:7.79 V
Peak Pulse Power Dissipation:600 W
Direction Type:Uni-Directional
Maximum Peak Pulse Current:50 A
,
