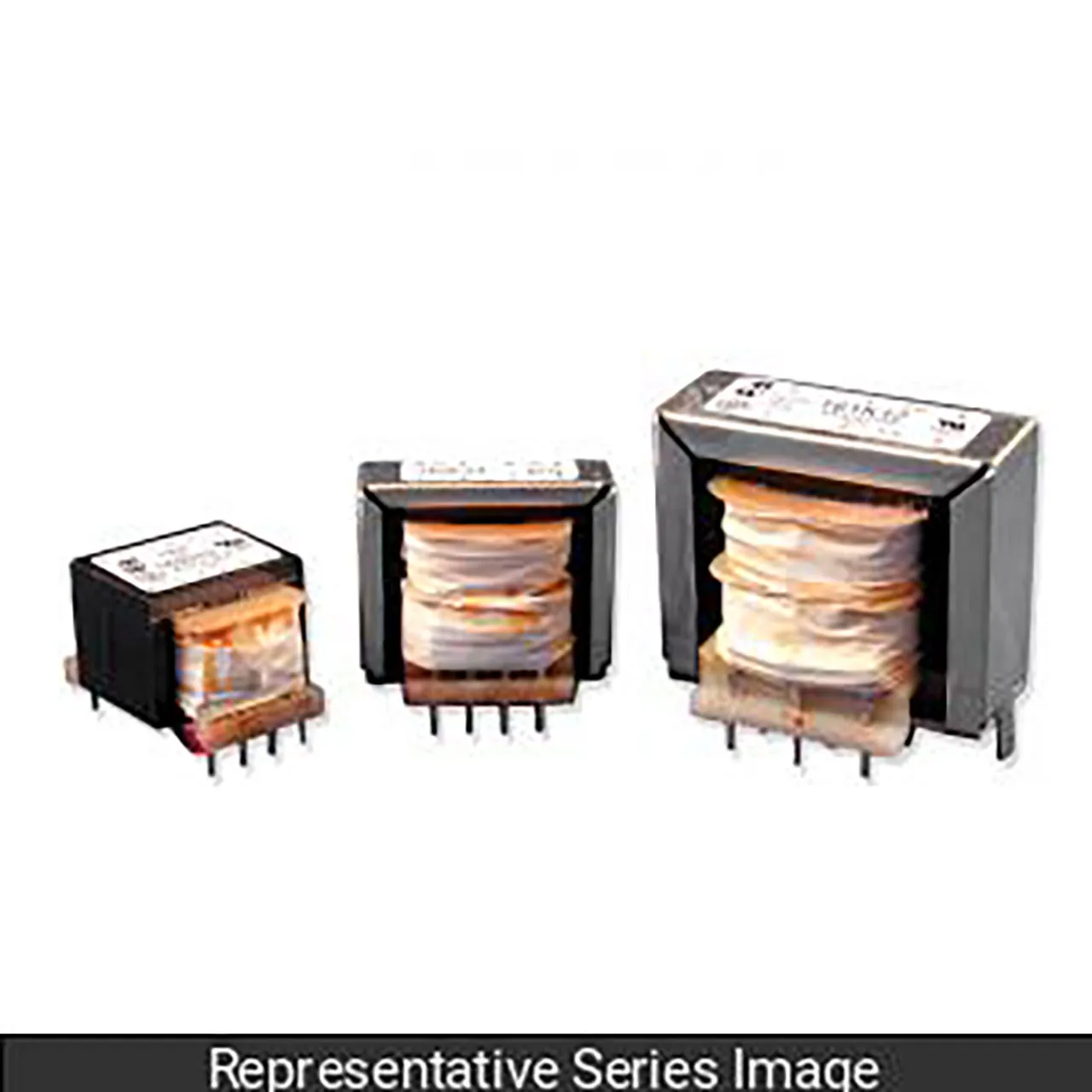

Transformer Low Voltage PCB Mount, 115V Primary, 1.2VA, 120V C.T @ 10Ma Sec

Features

  • Material: N/A
  • Standards: csa, ru
  • Power Rating (VA): 1.2
  • Secondary (RMS) Series: 120V C.T. @ 10ma
  • Secondary (RMS) Parallel: 60V @ 20ma
  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Transformer, low voltage PCB mount, 115V primary, 1.2VA, 120V C.T. @ 10ma sec.

Resources & Downloads

    Product Identification

    Manufacturer Series:160-161

    Features

    Primary Side Voltage:115 VAC
    Power Rating:1.2 VA
    Secondary Side Voltage:120 VCT @ 10mA (Series), 60V @ 20mA (Parallel)
    ,
